Barebone small form factor - Build your own PC

barebone mini pc industrial home

Slim

SKUs: DS20U, DH610, XH410G

Space-saving slim PCs: for home media or 24/7 business operation.

Our runrate products are barebone but we also configure specs based on your specific requirements:

3-liter mini-PC with a PCIE x16 slot enables more functionality

Big power in versatile, compact Package. Built-in PCIE x16 slot for various card.

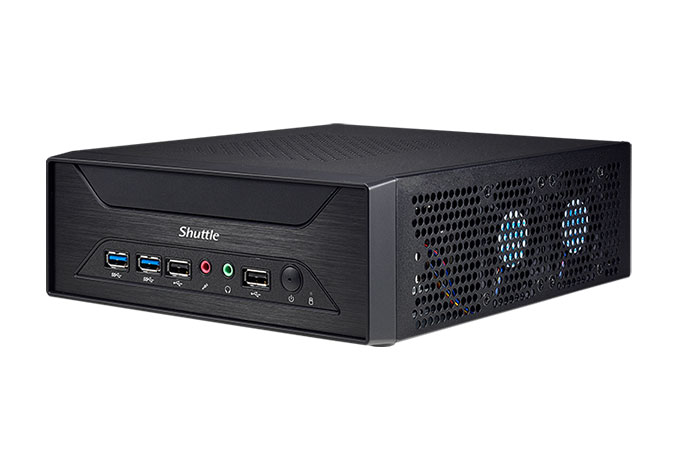

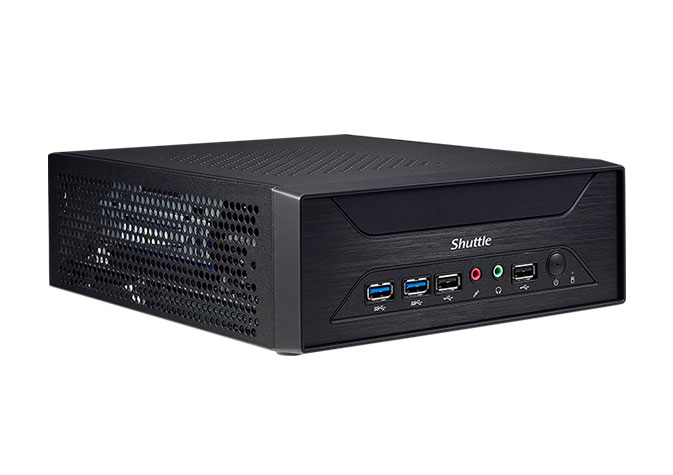

The new XH410G is built with performance and expandability in mind. Powered by the Intel ®H410 chipset and the 10th Gen LGA1200 Comet Lake 65W CPU, the XH410G can deliver reliable and high performance on complex tasks processing and 4K resolution content. Equipped one HDMI 2.0 and VGA, the XH410 supports dual independent displays, providing high productivity and dynamic visualization for digital signage and surveillance monitoring. With one PCI-E x16 expansion slot, it’s able to install an extra graphics card, capture card, or more to meet the diverse application requirements. The XH410G provides multiple I/O ports, including 4xUSB 2.0, 4xUSB 3.2 Gen1, SATA 6Gbps, 2xM.2, and Intel® Gigabit LAN. As stated above, XH410G is suitable for the workstation, surveillance, and video wall applications.

Based on the new H410 chipset, the XH410G is ready for Intel 10th Gen processors in the LGA1200 package. With up to 10 cores of processing power, the platform supports up to 64GB (32GBx2) of DDR4 memory for multi-task computing. Equipped with Intel UHD Graphics, the XH410G is capable of driving content that is fluent and stutter-free in 4K UHD.

With one HDMI 2.0 and VGA outputs built-in, the XH410G supports dual independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.

With built-in a PCI-E x16 expansion slot, the XH410G is able to install a various add-on cards such as graphics card (multi-display), capture card, multi-network card, drawing graphics card for various applications.
*The maximum permitted size for display cards is 208.5mm x120mm x30mm.

With native M.2 2280 Type M and one M.2 2230 Type E slot, the XH410G offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.

*M.2 key M supports both SATA and PCIe storage interfaces.

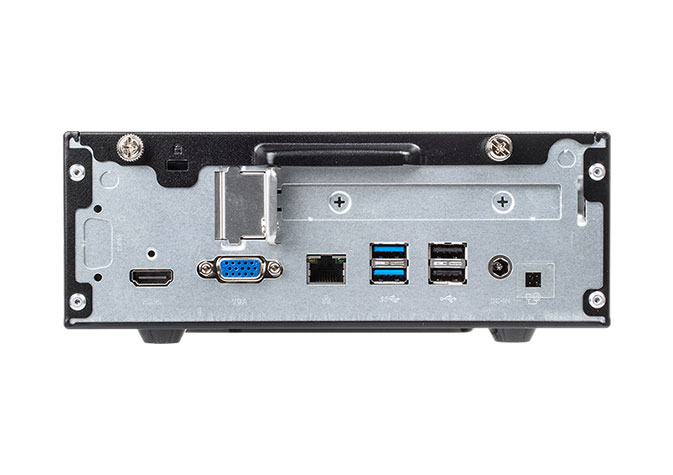

The XH410G provides 4xUSB 2.0, 4xUSB 3.2 Gen 1, and SATA 6Gbps. Besides, there’s one RS232 for optional port, helping connect to peripherals such as thermal printer, automation, or barcode scanner.

The XH410G has built-in one Intel® i219LM Gigabit LAN and supports Wake On LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.

The XH410G features Shuttle’s exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

Officially approved for 24/7 operation. The XH410G uses industrial capacitors in order to meet the environmental operation demands of commercial applications.

*With use of SSD and Wide Range Temp. SO-DIMM.

The XH410G is VESA mount compliant and allows for versatile integration into hardware systems. This space-saving capability is well-suited for digital signage and kiosk applications with limited space.

Save energy costs as well as the cost of on-site service with Power-On by RTC function. Set automatic ‘Power On’ and ‘Power Off’ times by RTC via BIOS. Power on by RTC can also be turned on and off with the Windows task scheduler.

Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle’s Watch Dog utility to maintain normal operation and stability of the system at all times.

– Windows 10 64bit

– Linux

Fanless 1-liter PC

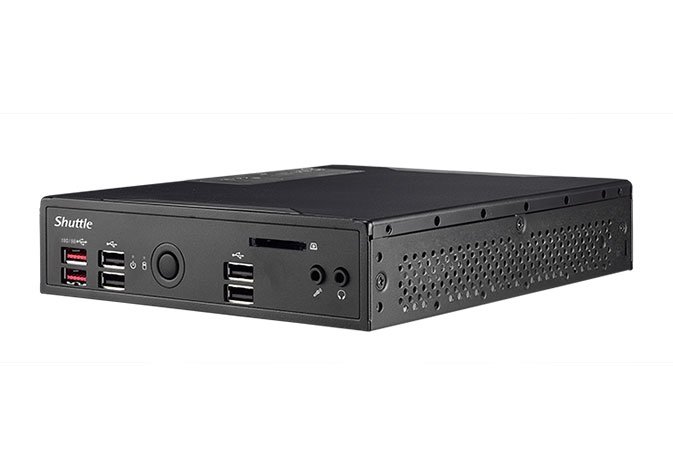

The DS20U series is a fanless ultra-compact PC powered by 10th gen Intel® Comet Lake-U processor.

The DS20U series is a fanless ultra-compact PC powered by 10th gen Intel® Comet Lake-U processor. The processor can handle short peak load and provides exceptional levels of connectivity despites its portable size. With Intel® UHD Graphics integrated, the model can play 4K/UHD resolution video via HDMI 2.0a, DisplayPort 1.2, D-sub (VGA) outputs. As for better computing demands, DS20U includes four USB 3.2 Gen2, four USB 2.0, a COM port, and Dual LAN port, which is suitable for multi-application possibility including digital signage, POS, Kiosk, thin client, office PC, and more. Thanks to its passive cooling architecture, the system is virtually maintenance-free and is approved for 24/7 nonstop operation.

DS20U series is equipped with Intel® 10th Generation Celeron® 5205U processor. Built-in with memory controller and Intel® UHD Graphics, the series provides better system efficiency and graphics performance.

*Core i3-10110U / i5-10210U / i7-10510U processor options available

Icon: Intel Celeron, Core i3, Core i5, Core i7

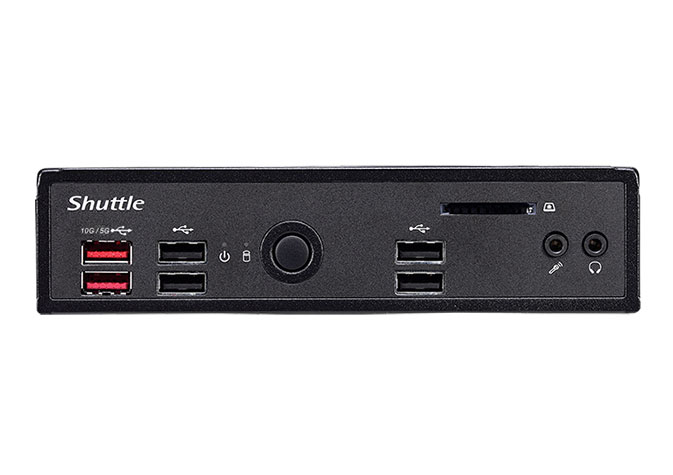

DS20U series has built-in four native USB3.2 Gen2, four USB2.0, and one COM port supports RS232/422/485 that can be configured as Ring Indicator (RI) or external power supply with a voltage level of either 5V or 12V. With one M.2 2280 Type M slot expanded, it can support PCIe x4 or SATA 6Gb devices, providing higher transmission bandwidth to meet user’s requirements for high-performance devices.

*DS20U support USB3.2 Gen 1 only, DS20U3/U5/U7 support USB3.2 Gen 2

Icon: USB3.2 Gen2, USB 2.0, COM port, M.2.

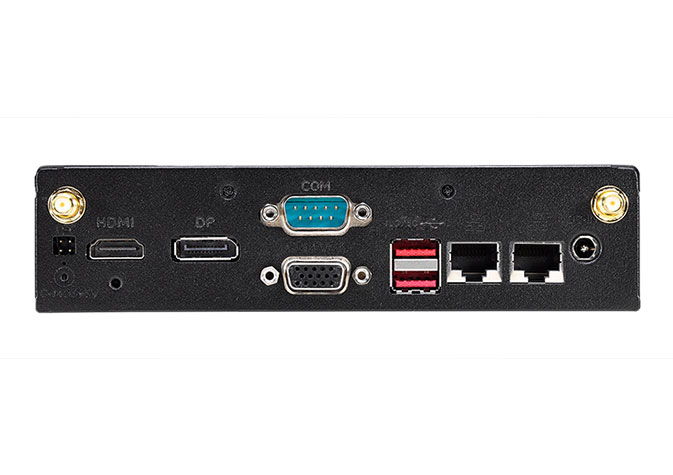

DS20U series provides an HDMI 2.0a, a DisplayPort 1.2, and VGA outputs to reach three independent displays, supporting resolutions up to 4096 x 2160 / 3840 x 2160 @ 60Hz.

Icon: Triple-display, HDMI, DisplayPort, VGA

The DS20U has excellent network connectivity with Intel® Gigabit LAN built-in and supports 802.11 AC WiFi + BT and optional 4G LTE adapter kit(WWN03)* at the same time.

*When using WWN03 accessory kit, it will occupy 2.5” HDD rack.

Icon: Gigabit LAN, WiFi(option), 4G SIM adapter(option), Wake on LAN, Teaming Mode.

With a passive thermal cooling system, the fanless design reduces the power consumption required by a fan as well as the cost of replacing fans on-site. Use solid-state disks and create an operational platform completely free of noise. The DS20U series is approved for 24/7 permanent operation and also suitable for 0 ~ 40 ⁰C working environments to meet the different commercial applications.

Icon: fanless, 24/7, 0-40゚C

  • – Windows 11 64bit
  • – Windows 10 64bit
    – Linux

Icon: RTC power on, Power on after power failure, Auto power on, watchdog, VESA
