PRODUCT DETAILS
Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.

KEY FEATURES

- Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
- Supports 4K 60p shooting and 12G-SDI output
- Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
- Supports FreeD for building AR/VR systems
Adopts new mechanical pan/tilt for improved responsiveness and quietness

PRODUCT DETAILS
Introducing a new PTZ camera capable Production Quality Full HD video output up to 1080/60p via IP transmission, in addition to 3G-SDI and HDMI.
Equipped with three newly developed 1/2.86 MOS sensors for high sensitivity, a superior S/N ratio and high resolution.

KEY FEATURES

- Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT
- Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom
- Supports FreeD for building AR/VR systems
Adopts new mechanical pan/tilt for improved responsiveness and quietness

PRODUCT DETAILS

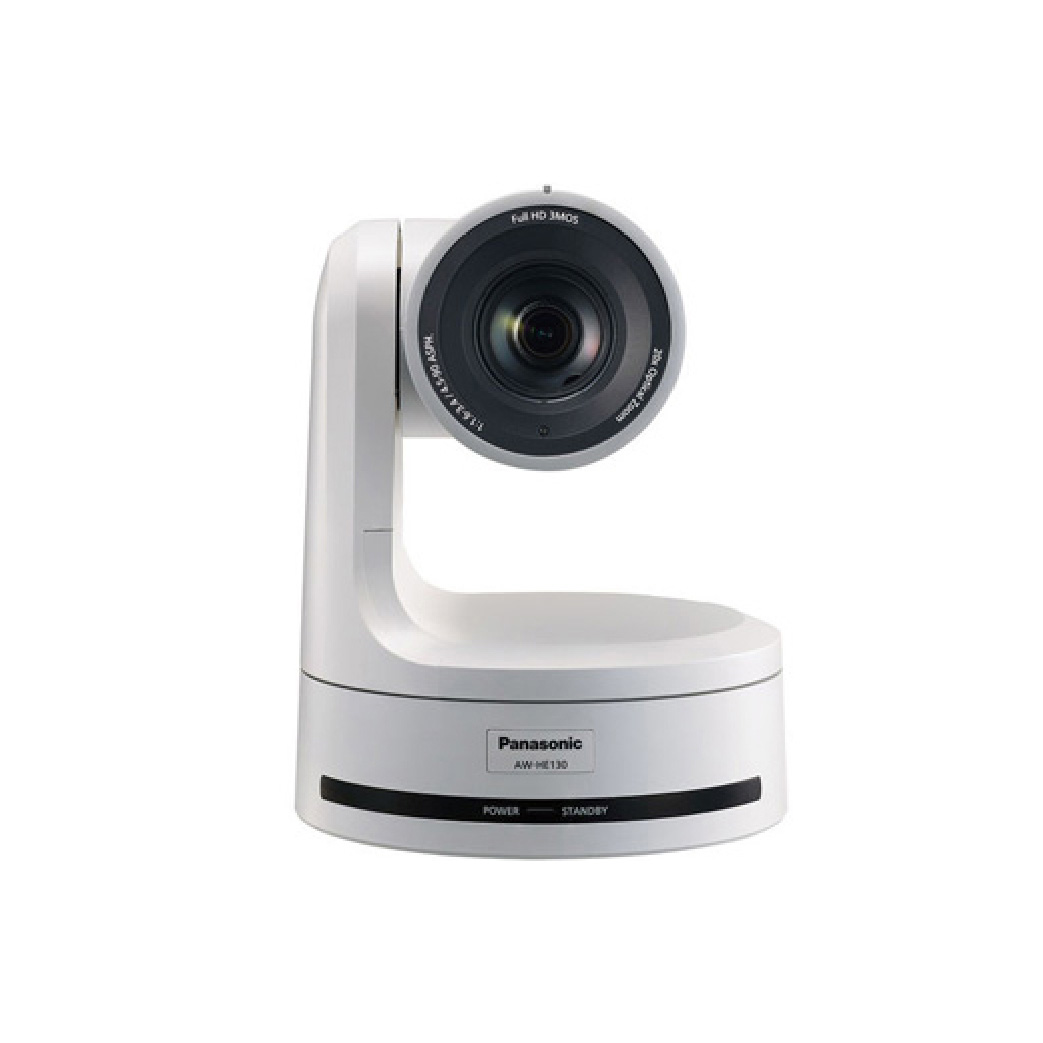

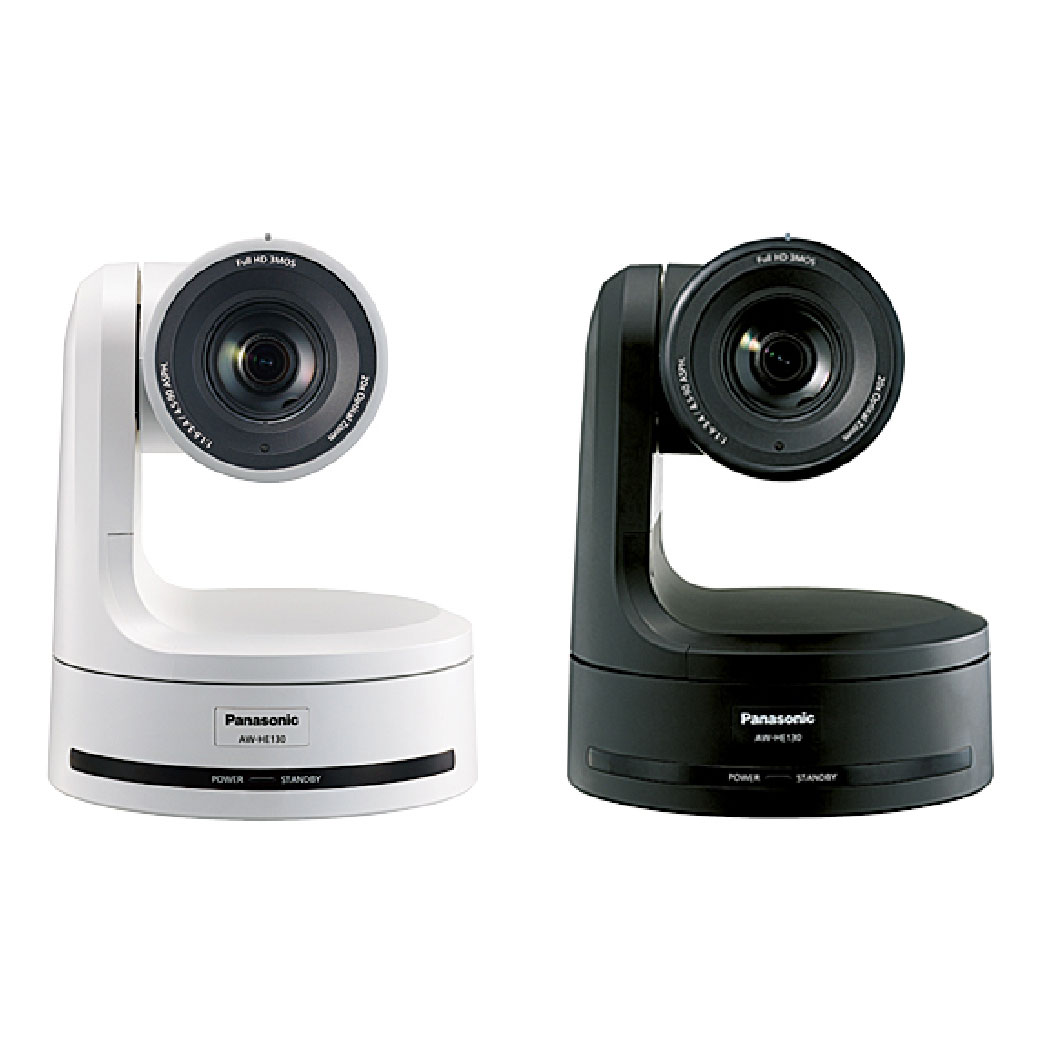

Introducing the AW-HE130, a pan/tilt/zoom camera incorporating recently-developed high-sensitivity, low-noise 1/3" 3-MOS imagers that produce stunning pictures, even in low light conditions. Revolutionary new features include Power over Ethernet+ (POE+) for easier integration, and multi-stream transmission of H.264 HD video and audio (up to 1080/60p at 25Mbps.)

KEY FEATURES

- The camera's integrated pan-tilt head covers a wide range of motion, with a pan of +/-175° and a tilt of -30° to 210°.
- Streaming video output is available from the HE130 in several forms and formats, and at a wide range of transmission speeds.
- Standard professional interfaces include HD/SD-SDI, HDMI, and SD composite, as well as 3G-SDI for single cable delivery of high-quality content up to 1080/60p.

PRODUCT DETAILS
The integrated full HD camera AW-HE38HW/HK performs in a wide variety of onsite shooting applications that require high-quality video, such as conferences, lecture capture and other events, thanks to its high-performance zoom, wide angle of view and outstanding color reproducibility.

KEY FEATURES

- Supports HD-IP video output, output of video and audio via USB, and SD card recording.
- Equipped with a developed 1/2.3-type MOS sensor and DSP (Digital Signal Processor) for high sensitivity and high resolution.
- In addition to a 22x optical zoom, the AW-HE38HW/HK can zoom up to 30x while maintaining high resolution thanks to Super Resolution technology

PRODUCT DETAILS

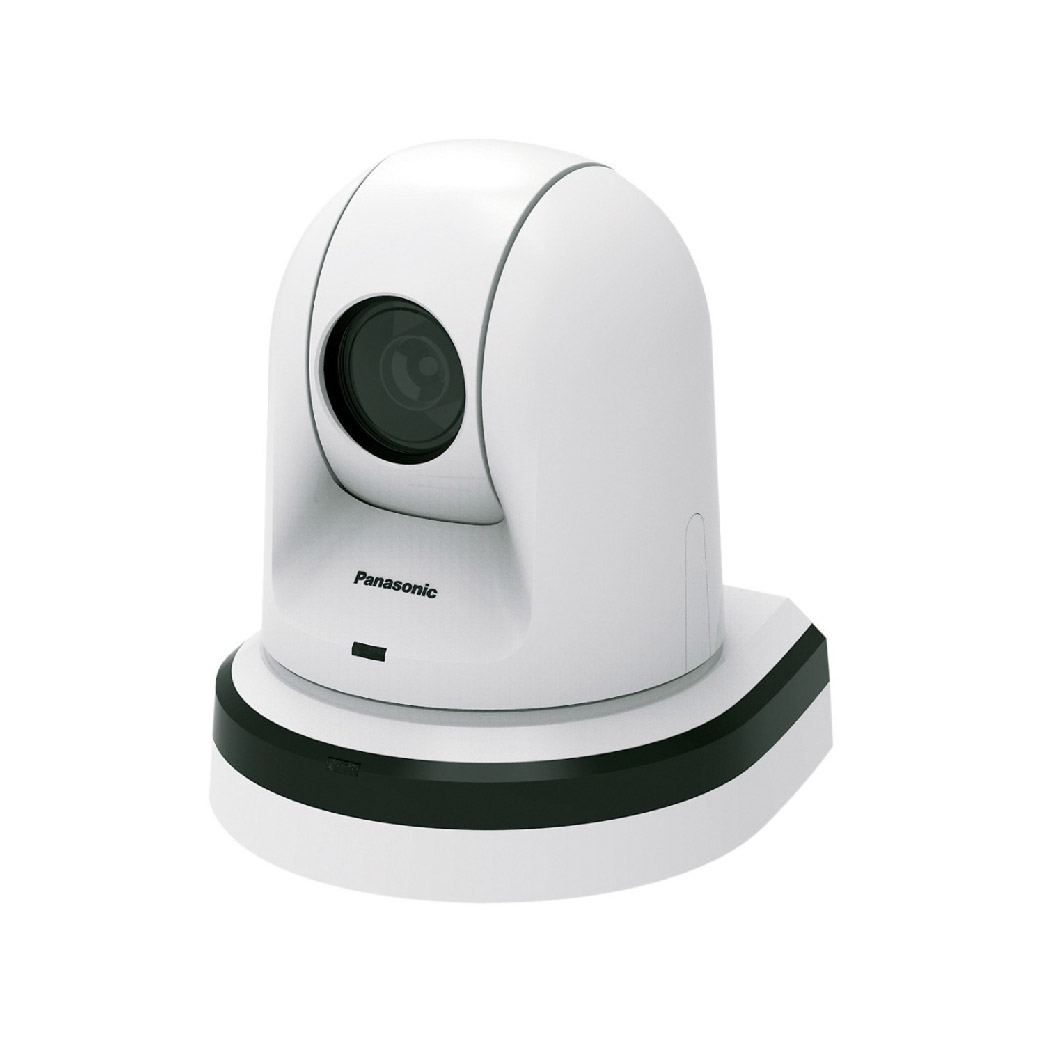

The AW-HE40 series of integrated full HD cameras performs in a wide variety of onsite shooting applications that require high-quality video, such as conferences, lecture capture and other events, thanks to its high-performance zoom, wide angle of view and outstanding color reproducibility.

KEY FEATURES

- Developed 1/2.3-type MOS Sensor
- High Performance Optical 30x Zoom Lens/Super Resolution 40x Zoom
- Outputs Still Image During Preset Movements; Supports One-Camera Operations
- Either SDI Model or HDMI Model Can Be Selected To Match Usage Needs

PRODUCT DETAILS

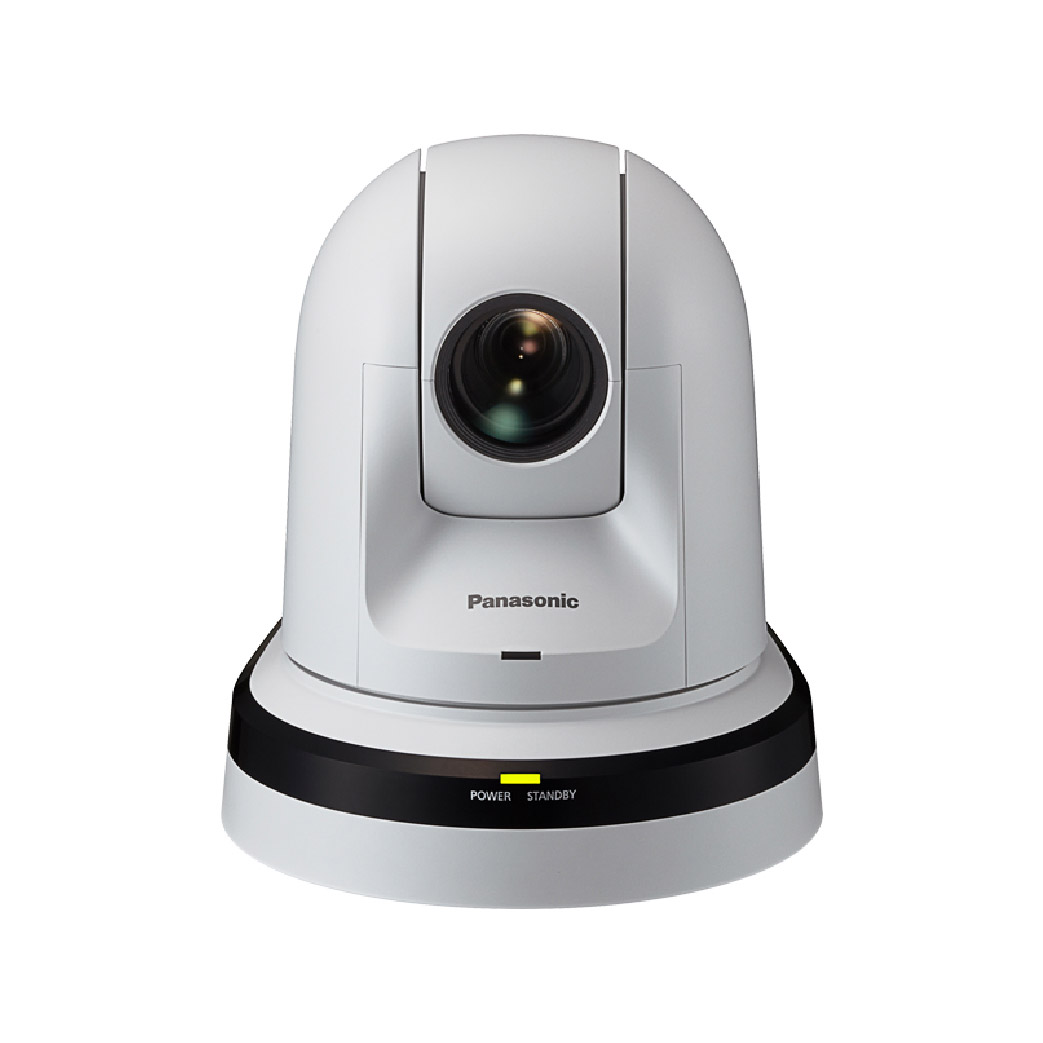

The white Panasonic AW-HE40HW PTZ Camera with HDMI Output features a 1/2.3" MOS sensor and outputs over HDMI. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser. This provides you with several advantages like reduced integration costs, easy remote production and engineering, and lower cost for multiple location systems.

KEY FEATURES

- Features MOS sensor that is used to produce smooth and sharp images
- Up to 1920 x 1080 video resolution
- Reduce the risk of the system being hacked with wired security camera

PRODUCT DETAILS
The AW-HE40SWPJ9 camera is designed to produce great results in a variety of applications that require high-quality video and precise control—such as conference video, event capture, staging, distance learning and houses-of-worship. Thanks to their precision 30X optical zoom lenses, wide field of view, smooth PTZ functions and exceptional image quality, HE40 cameras are ideal for demanding remote production and IMAG use.

KEY FEATURES

- Standard professional interfaces include HD-SDI, as well as IP/Network for single cable delivery of high-quality content up to 1080/60i.
- Audio input and embedding (on IP, HDMI) are also available via a switchable, stereo MIC/LINE input.
- RS-422 serial compatibility is available for serial-based control workflows (i.e. connection to AW-RP50/120 or previous controllers). RS-232 and RS-422 VISCA protocol is available when introducing a Panasonic camera into an existing control structure.

PRODUCT DETAILS

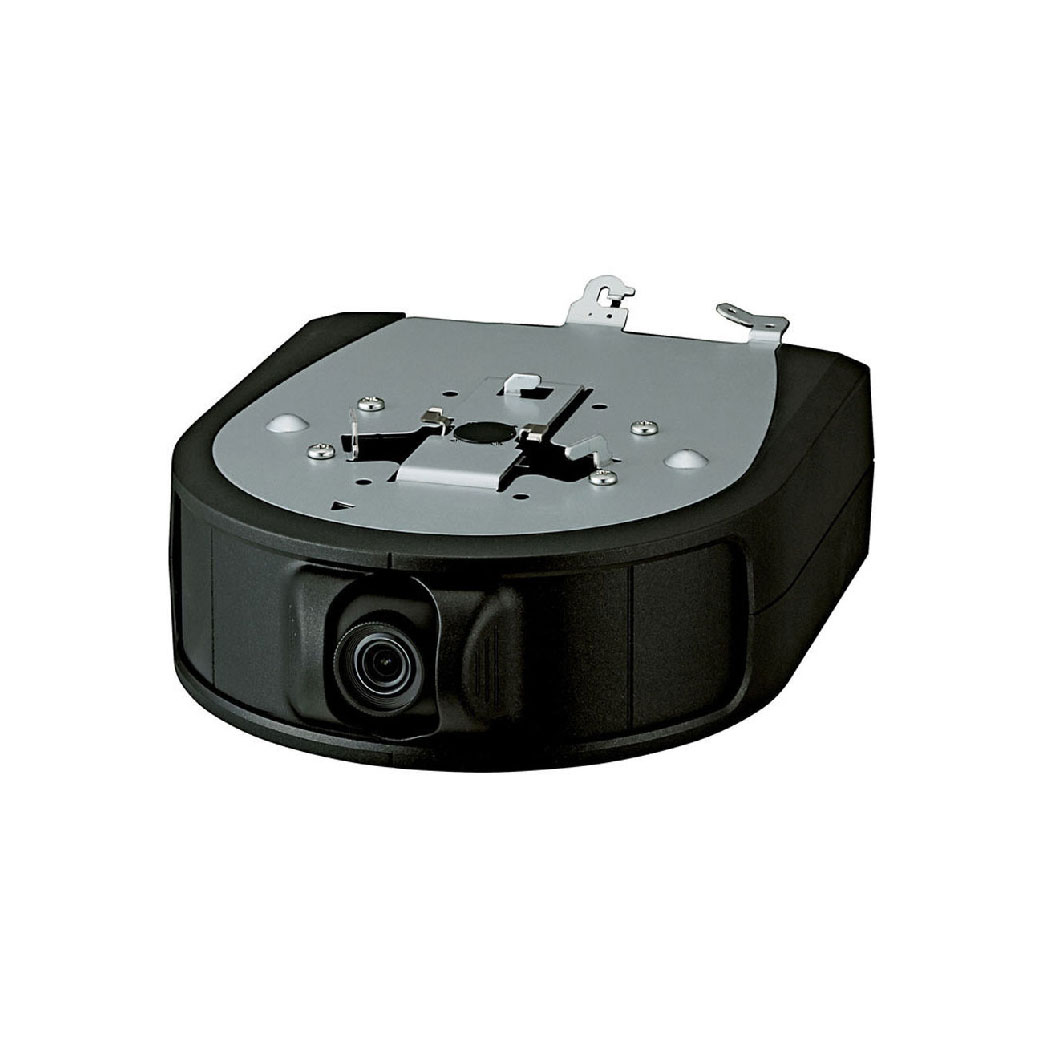

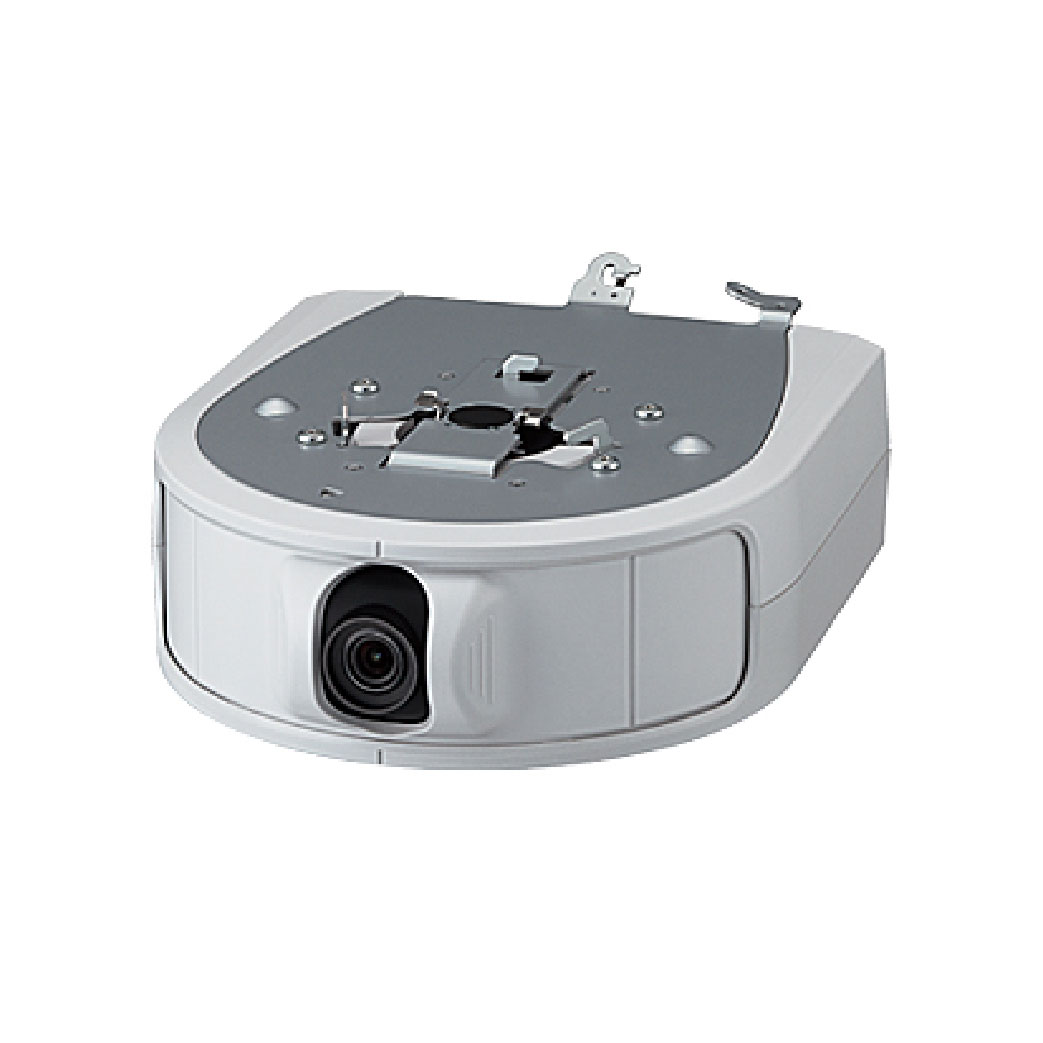

This HD control assist camera features a single focus, 95° ultra wide angle lens and an HD MOS sensor. Designed for use with Panasonic HD integrated camera & PTZ Control App for iPad (sold separately).

KEY FEATURES

- Control Assist Camera
- HD MOS sensor
- PoE capability
- For Panasonic HD integrated camera

PRODUCT DETAILS

Panasonic AW-HEA10WPJ White PTZ Control Assist Camera HD PTZ remote camera with app control. Use an iPad to wirelessly control the pan, tilt and zoom of an 4K/HD Integrated Camera. Panasonic’s new control assist camera offers a panoramic view of any scene thanks to its super wide angle and can be used at the same time as a camera by using its HDMI output as an image analysing tool that will allow to control the main camera that is installed on top of it.

KEY FEATURES

- A 1/4.37 type (effective size) 3.91 megapixel MOS sensor and a single-focus 95° horizontal ultra wide angle lens enable wide and clear overview shots to assist control of HD Integrated Cameras.
- Operations can be made by touching the screen of the overall image from the Control Assist Camera and an image from an HD Integrated Camera.
- HD Integrated Camera's pan, tilt, zoom control and camera setting adjustment such as image quality or frame rate can be done from an iPad.

PRODUCT DETAILS

the AW-UE70WPJ is your key to best-in-class pan/tilt/zoom 4K IP streaming and in-camera 4K recording. It delivers 3840 x 2160 resolution images at 29.97p/25p via HDMI, and is capable of doing it via IP streaming or in-camera.

KEY FEATURES

- Excellent 4K video via HDMI, USB and LAN (UHD: 3840 x 2160 @25p) & HD video via 3G-SDI (up to 1080/50p)
- Optical zoom 20x, extendable by iA zoom (22x in 4K / 30x in HD) & 1/2.3-type MOS sensor
- High Dynamic Range function (HDR), suitable for backlit condition

PRODUCT DETAILS

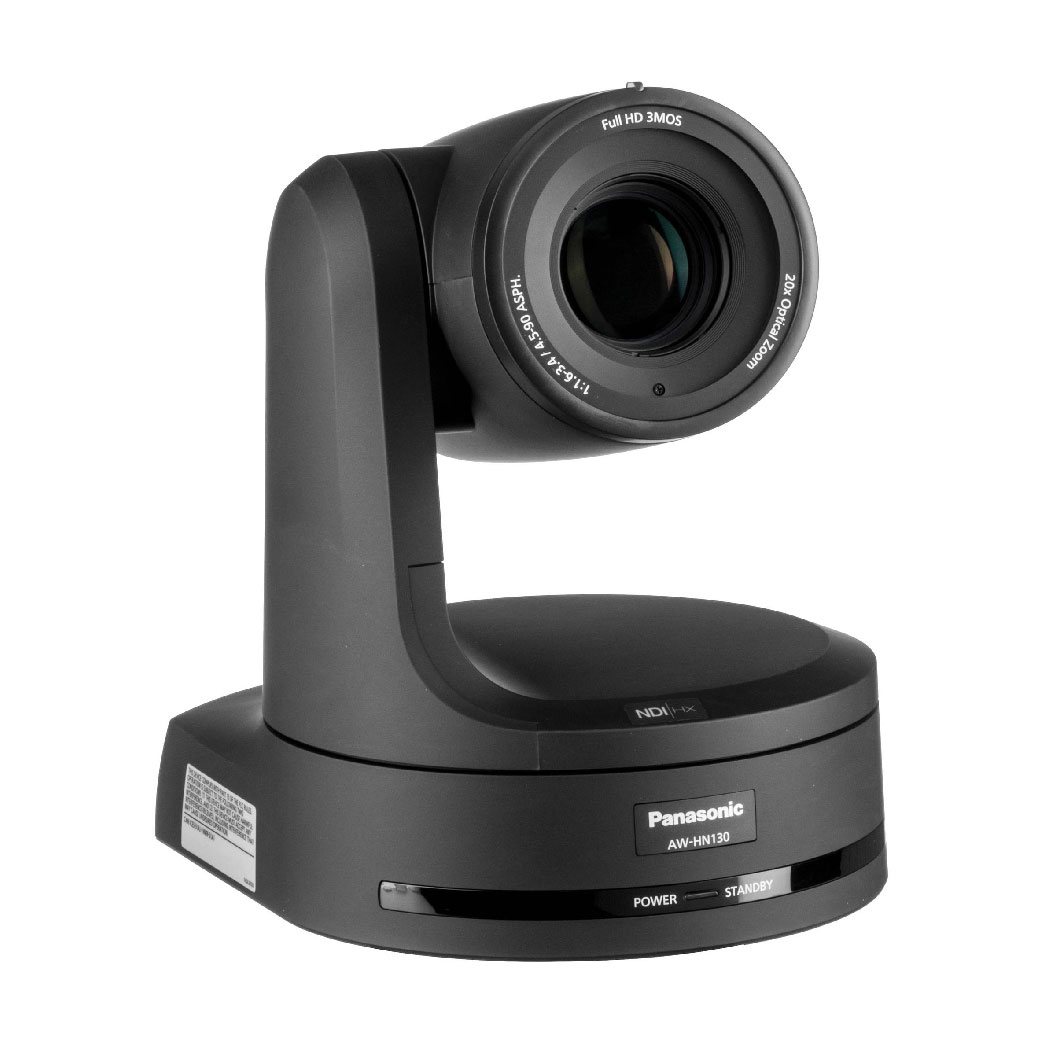

Introducing the Panasonic AW-HN130 PTZ camera, capable of production quality Full HD video output up to 1080/60p with NDI®HX, in addition to 3G-SDI and HDMI. Equipped with three newly developed 1/2.86 MOS sensors for high sensitivity, a superior S/N ratio, and high resolution.

KEY FEATURES

- Newly developed 1/2.86-type three MOS sensors
- 20x Optical Zoom
- Optical Image Stabilizer
- 1.4x Extender Zoom

PRODUCT DETAILS

The Panasonic AW-HN130WPJ is capable of transmitting up to four channels over IP, and at the same time, a single channel over SDI or HDMI, or you can use the NDI protocol to stream video and audio, control (IP), Tally, and power over a single Ethernet cable.

KEY FEATURES

- 4-Ch IP, SDI/HDMI Out, NDI Connectivity
- IP Ch 1: Up to 1080p60/50
- IP Ch 2: 1080p30, Ch 3/4: 720p30
- 1/2.86" 3MOS Sensor + Advanced DSP

PRODUCT DETAILS

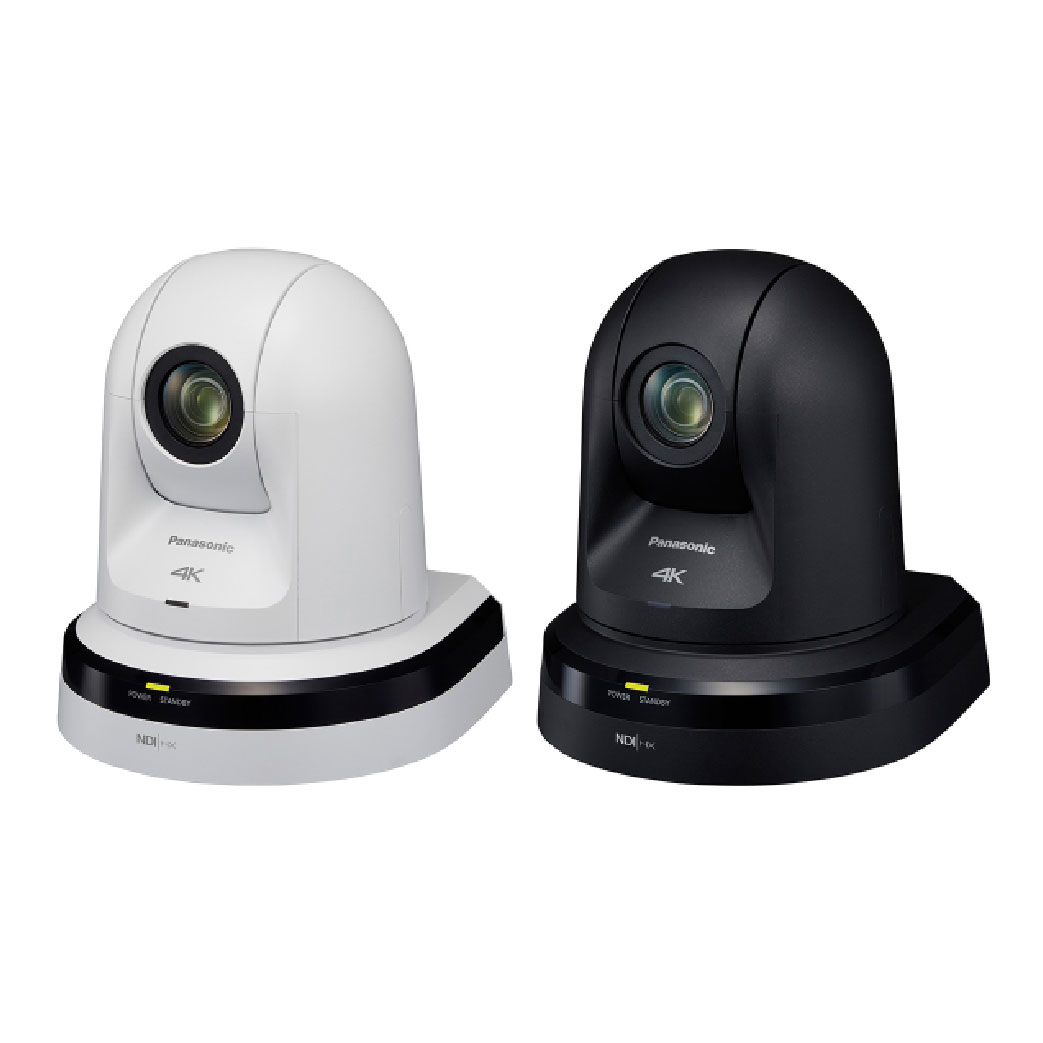

 the AW-UN70WPJ is your key to best-in-class pan/tilt/zoom 4K IP streaming and in-camera 4K recording. It delivers 3840 x 2160 resolution images at 29.97p/25p via HDMI, and is capable of doing it via IP streaming or in-camera.

KEY FEATURES

- Power of Ethernet+ (PoE+) for easier system installation and setup
- RS-422 serial compatibility is available for serial-based control workflows
- Standard professional interfaces include HD/SD-SDI, HDMI, as well as IP/Network for single cable delivery of high-quality content up to 1080/60p.
- The camera is exceptionally easy to integrate and is available in two colors (-W: pearl white and -K: black matte) to suit a wide range of applications

PRODUCT DETAILS
Get streaming beautifully with the AW-UN70 Professional PTZ camera. Take advantage of 4K resolution to give your audience all the details. Everything you need to take your live production to the next level is in here!

KEY FEATURES

- Built in Support for NDI via NDI|HX
- Supports 4K 60p shooting and 12G-SDI output
- 20x Optical Zoom (+30x iZoom and 12x Digital Zoom)
- 1/2.3" MOS Sensor

PRODUCT DETAILS
Get streaming with the AW-HN40H Professional PTZ camera. Take advantage of 30x optical zoom to capture all the action. Everything you need to take your live production to the next level is in here!

KEY FEATURES

- Built in Support for NDI via NDI|HX
- 1/2.3-type MOS sensor
- 30x optical zoom
- 1000 Lines of Horizontal Resolution

PRODUCT DETAILS
The AW-HN40HWPJ camera is designed to produce great results in a variety of applications that require high-quality video and precise control—such as conference video, event capture, staging, distance learning and houses-of-worship.

KEY FEATURES

- Built in Support for NDI via NDI|HX
- 1/2.3-type MOS sensor
- 30x optical zoom
- 1000 Lines of Horizontal Resolution

PRODUCT DETAILS

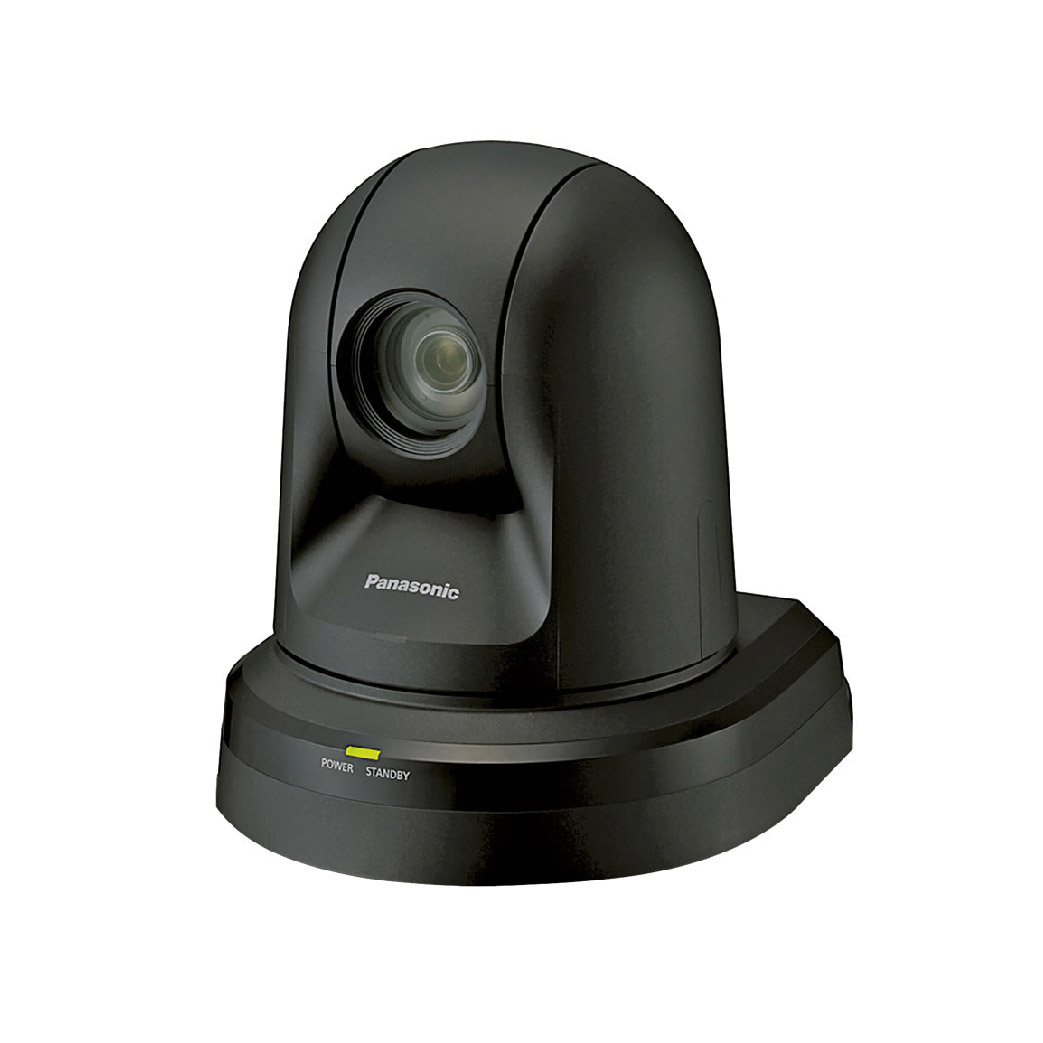

The AW-HN40HKPJ camera is designed to produce great results in a variety of applications that require high-quality video and precise control—such as conference video, event capture, staging, distance learning and houses-of-worship.

KEY FEATURES

- Built in Support for NDI via NDI|HX
- 1/2.3-type MOS sensor
- 30x optical zoom
- 1000 Lines of Horizontal Resolution

PRODUCT DETAILS
The AW-HN38 pan/tilt/zoom camera incorporates newly-developed 1/2.3-type full HD MOS sensors and Digital Signal Processors (DSP) for high sensitivity, high resolution and superior video capture in a wide range of shooting conditions.

KEY FEATURES

- 1/2.3-Type MOS
- 22x Optical Zoom plus 30x i.Zoom & 16x Digital Zoom
- IP Connectivity for web interface and control plus PoE+ support for single cable power, streaming and camera control
- HDMI Video Output, in addition to USB and microSD card built-in recording

PRODUCT DETAILS
The AW-HN38 pan/tilt/zoom camera incorporates newly-developed 1/2.3-type full HD MOS sensors and Digital Signal Processors (DSP) for high sensitivity, high resolution and superior video capture in a wide range of shooting conditions.

KEY FEATURES

- 1/2.3-Type MOS
- 22x Optical Zoom plus 30x i.Zoom & 16x Digital Zoom
- IP Connectivity for web interface and control plus PoE+ support for single cable power, streaming and camera control
- HDMI Video Output, in addition to USB and microSD card built-in recording

PRODUCT DETAILS

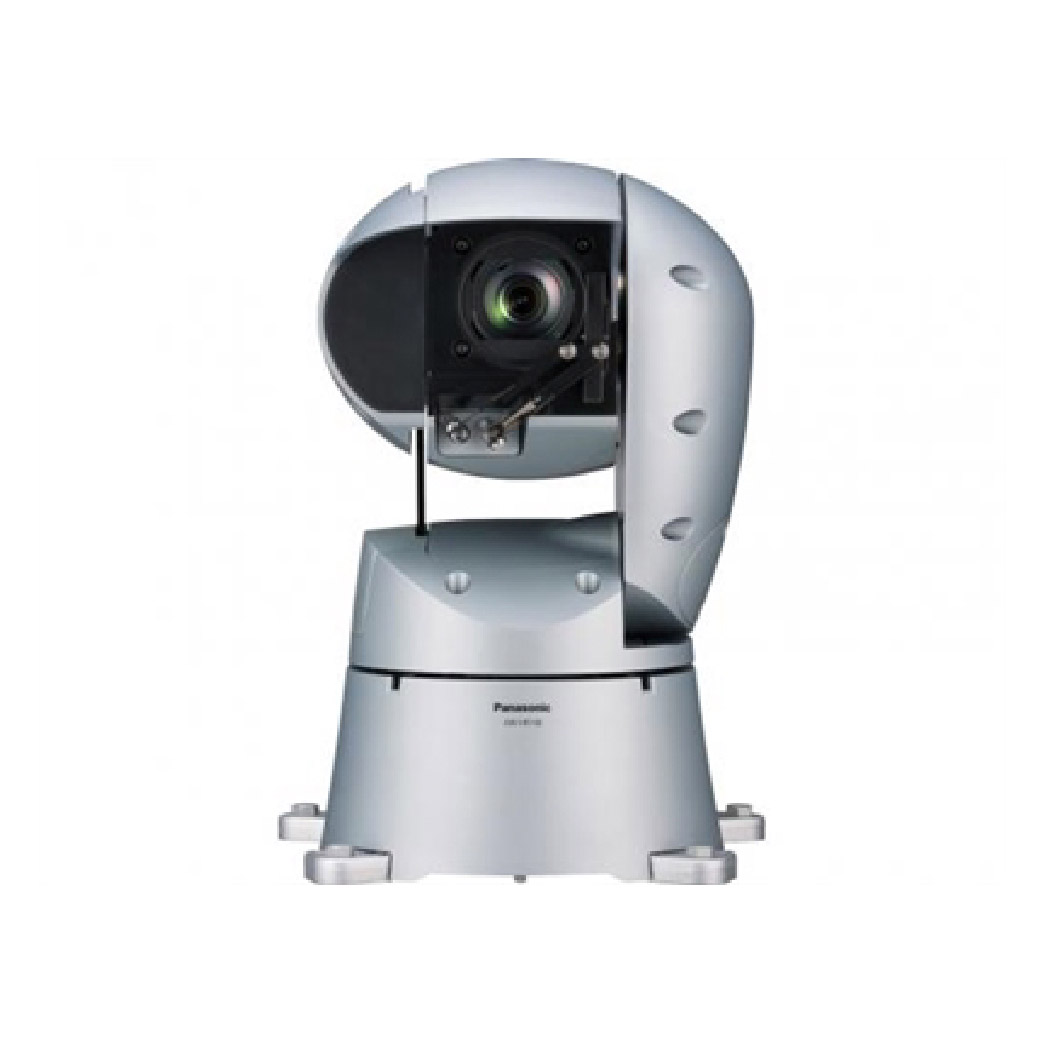

Outdoor housing and camera, lens, and pan head are integrated in this remote camera system.

KEY FEATURES

- 1/2.86-type 3MOS Sensors for High-level Video Capture and Production
- 20x Optical Zoom (plus 1.4x Digital Extender)
- Hybrid Image Stabilizer (mechanical and optical, named DISS) for stable shooting performance
- Protection IP65, salt-resistant paint & includes wipers, heater and defroster (washer optional)
