MXN-AMP
PoE+ Powered Multichannel Amplifier

MXN-AMP

PoE+ Powered Multichannel Amplifier

Multichannel PoE+ powered amplifier designed for speech and program audio reproduction in meeting rooms. The Microflex® Conferencing amplifier is designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, DSP, and loudspeakers, they deliver room-filling sound, quick installation in a variety of room types, and the efficiency of a single-source solution.

Powerfully Simple

  • Can power up to 4 MXP loudspeakers in 8 ohm mode, or up to 8 MXP-5/MXP-6 loudspeakers in 70V mode.
  • Rated at 14.5 watts of combined output power.

Unmatched I/O Flexibility

  • Four Dante inputs and four Dante outputs.
  • Unbalanced stereo analog audio input.
  • Logic input (switches between presets 1 and 2 as defined in web UI).

Dial In Great Sound

  • Onboard Shure DSP utilities include EQ, delay, limiter, and signal/tone generator.
  • Presets for all MXP-series loudspeakers ensure optimal audio performance.  Custom presets can be defined in the MXN-AMP control software.

Easy Installation

  • Can be rack mounted with available CRT-1 rack tray.
  • Can also be wall or ceiling mounted.  (Note:  Shure recommends the use of an additional safety tether for overhead components).
  • UL 2043 Plenum rated.

Confident Communication

  • Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
  • Shure Audio Encryption keeps audio content protected between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room.

Certified For Success

  • Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams

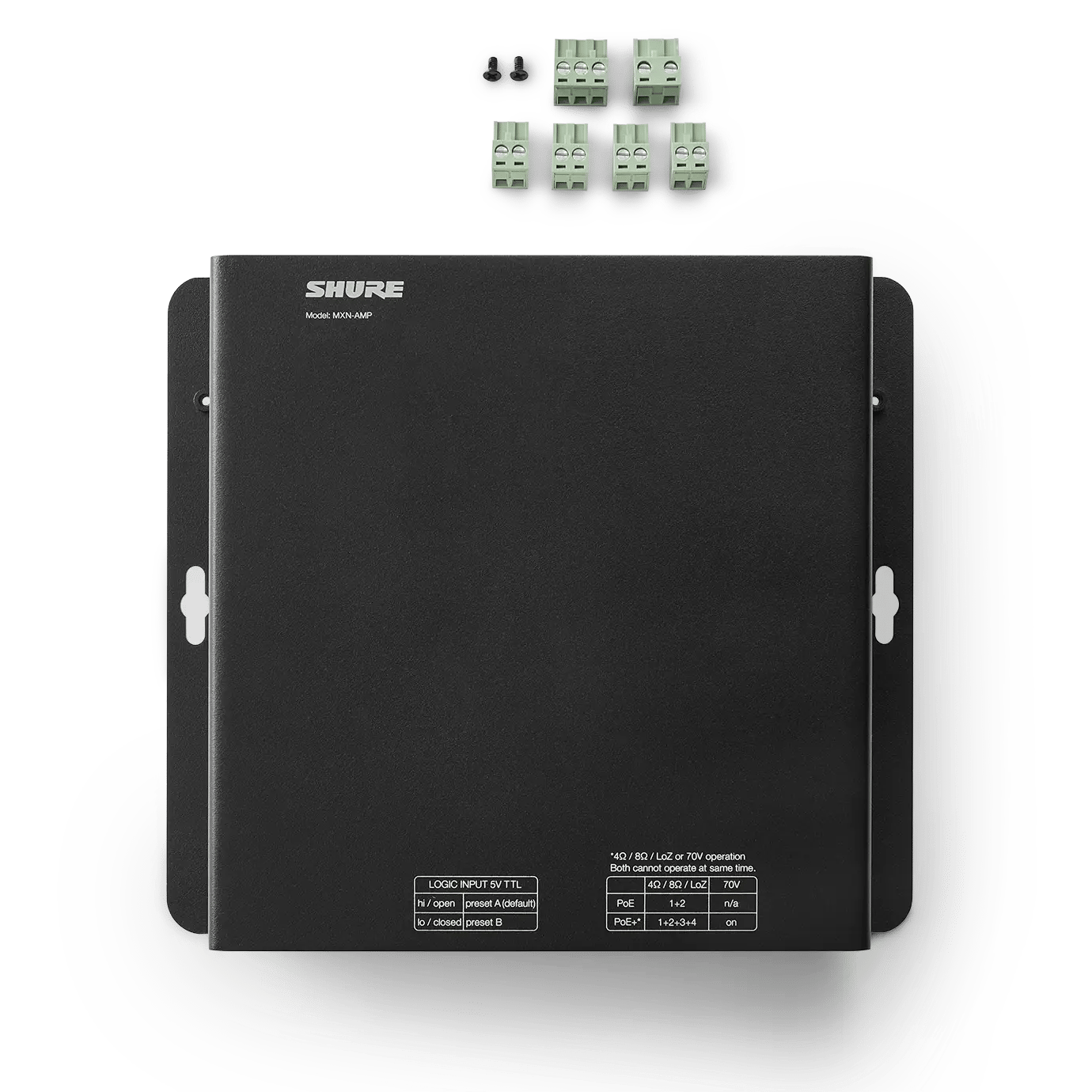

  • 1 Microflex® MXN-AMP PoE Powered Amplifier
  • 1 Logic input block connector
  • 4 LoZ output block connectors
  • 1 70V output connector
  • 2 1/4” screws, #4-40 UNC thread
