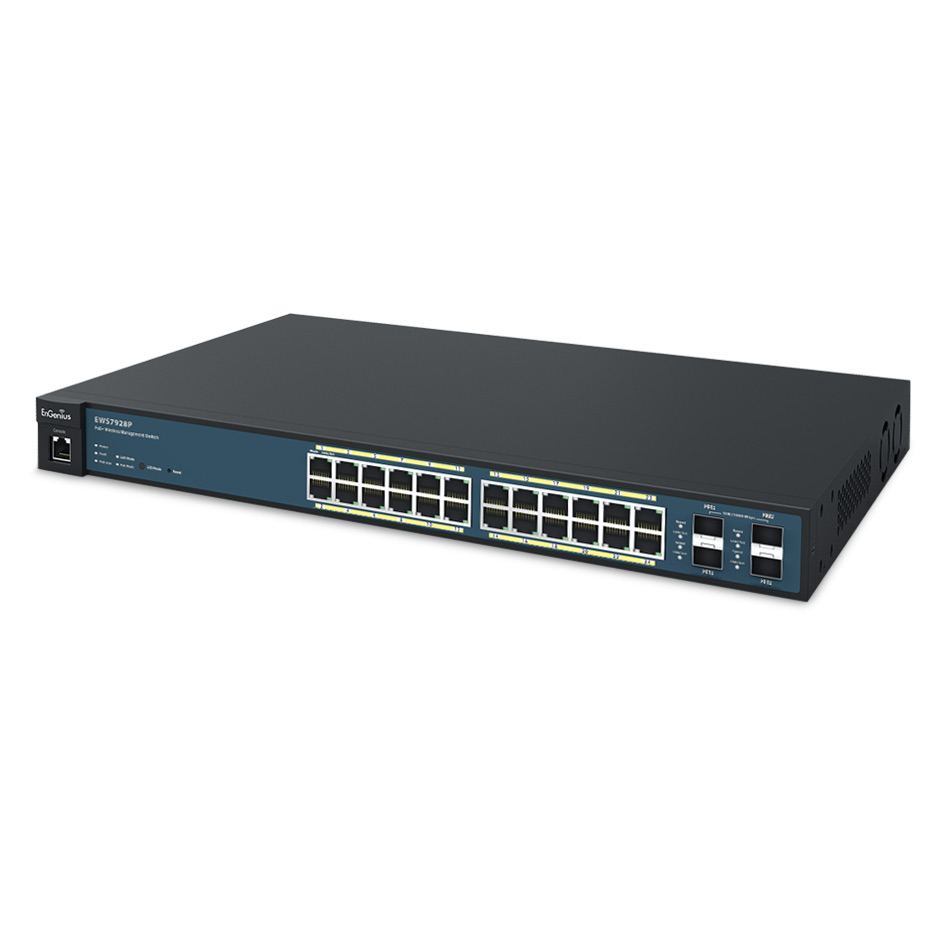

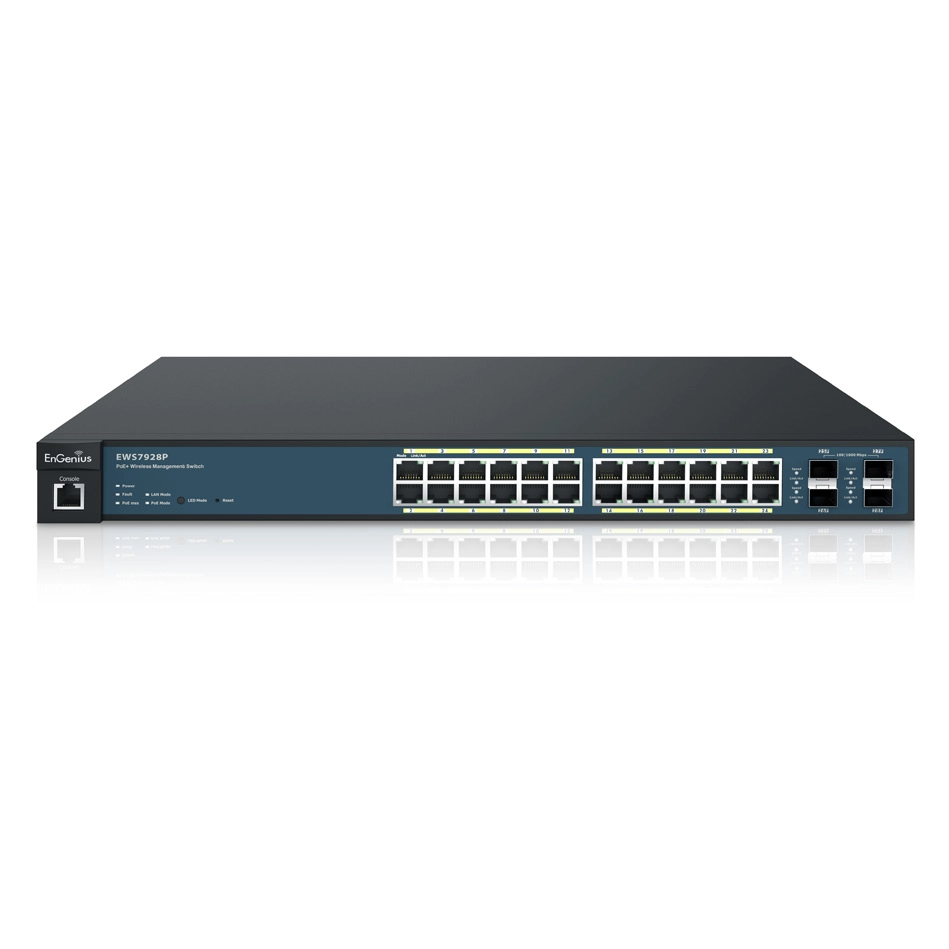

EWS7928P

Product Highlights

The EWS7928P Managed PoE+ 24 Port Gigabit Switch features simplified network configuration, monitoring, and management options along with an intuitive Web interface. Locally manage up to 50 EnSky APs and centrally manage wired and wireless networks via ezMaster. Power compatible PoE+ devices such as IP cameras, VoIP phones, and APs.

  • (24) 10/100/1000 Mbps Gigabit Ethernet PoE+ Ports; (4) SFP Ports
  • 19” Rackmount Supports 802.3af/at PoE & Total Budget of 185W
  • 4 Types of In-Switch Network Management Options
  • Network Troubleshooting, Monitoring & Email Alerts

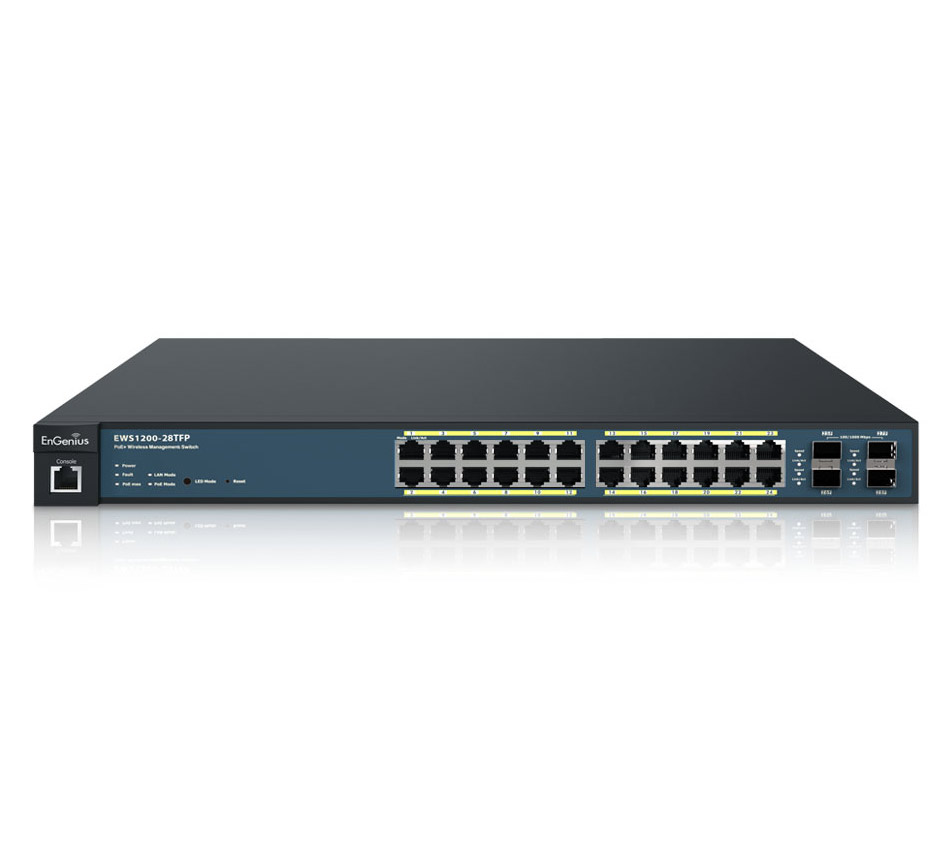

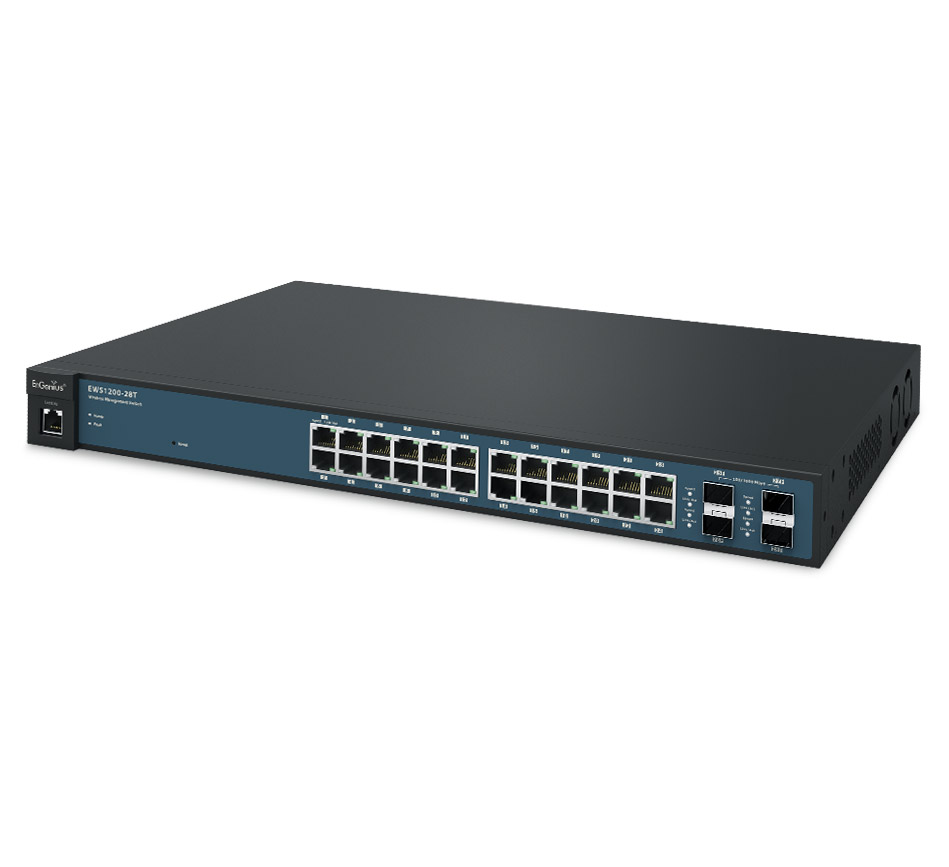

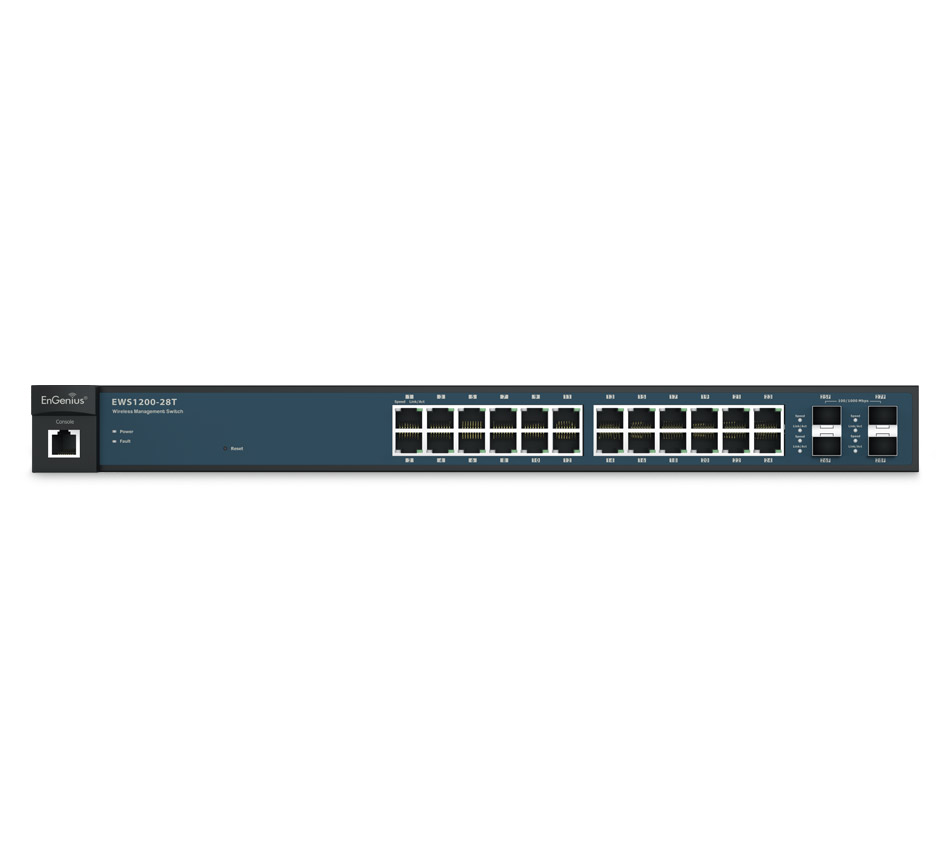

EWS1200-28TFP

Product Highlights

The EWS1200-28TFP PoE+ Managed 24 Port Gigabit Switch features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Locally manage up to 50 EWS APs and centrally manage wired and wireless networks via ezMaster. Power compatible PoE+ devices such as IP cameras, VoIP phones, and APs.

  • (24) 10/100/1000 Mbps Gigabit Ethernet PoE+ Ports; (4) SFP Ports
  • 19” Rackmount Supports 802.3af/at PoE & Total Budget of 410W
  • 4 Types of In-Switch Network Management Options
  • Network Troubleshooting, Monitoring & Email Alerts

Must be Powered over Ethernet, does not include AC Adapters.

General Systems

EWS7928P

EWS1200-28TFP

Interface

Model Name EWS7928P EWS1200-28TFP
Description EnSky EWS 24-Port Gigabit 250W PoE+ Managed Switch EnSky EWS 24-Port Gigabit 410W PoE+ Managed Switch
100/1000 Base-T Ports 24 24
100/1000 SFP Ports 4 4
10G SFP+ Ports 0 0
RJ45 Console Port 1 1
PoE Capable Ports 1-24 1-24

Performance

Model Name EWS7928P EWS1200-28TFP
Switching Capacity (Gbps 56Gbps 56Gbps
Max. Packet Forwarding Rate (Mpps) 41.664Mpps 41.664Mpps
MAC Address Table Size 8K 8K
Packet Buffer Size 512KB 512KB

Physical Specification

Model Name EWS7928P EWS1200-28TFP
Dimension 440mm x 260mm x 44mm 440mm x 260mm x 44mm
Fan Fan Fan
Power Input 100-240 VAC 100-240 VAC
