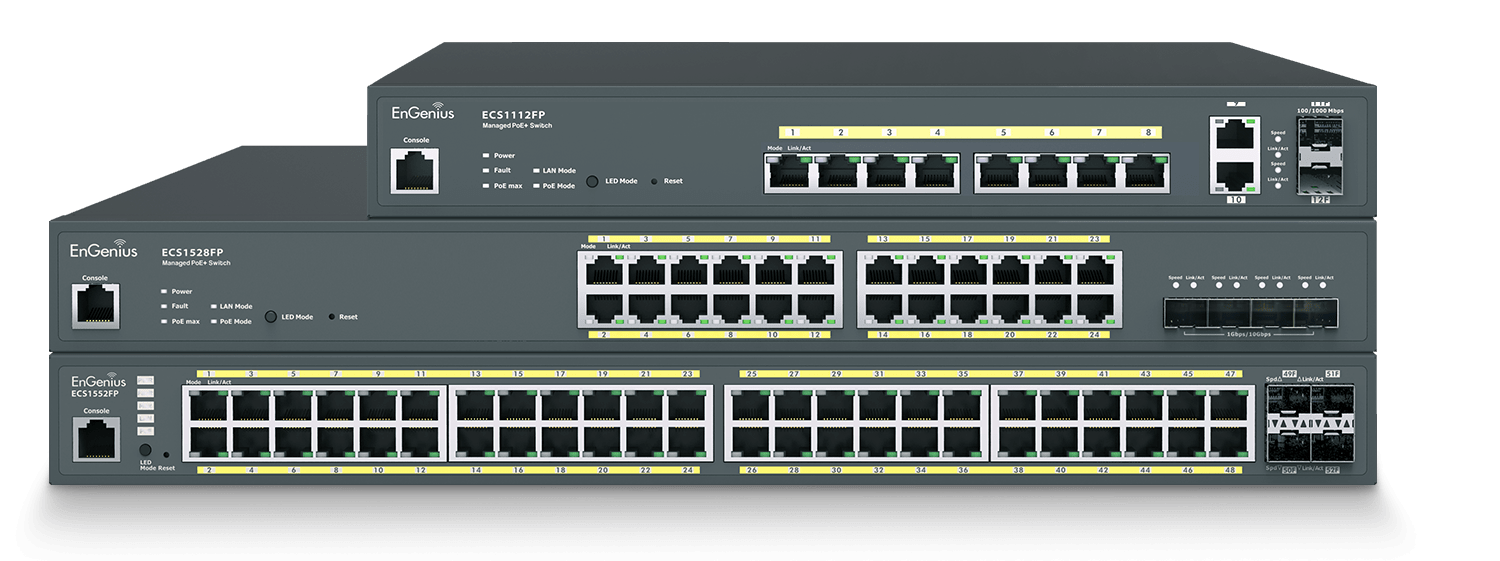

L2 + POE CLOUD SIWTCH
EnGenius EnSky and Cloud managed Switches offer enterprise-class features, simplified network configuration, robust management options, and optimal network performance for small to mid-size organizations.

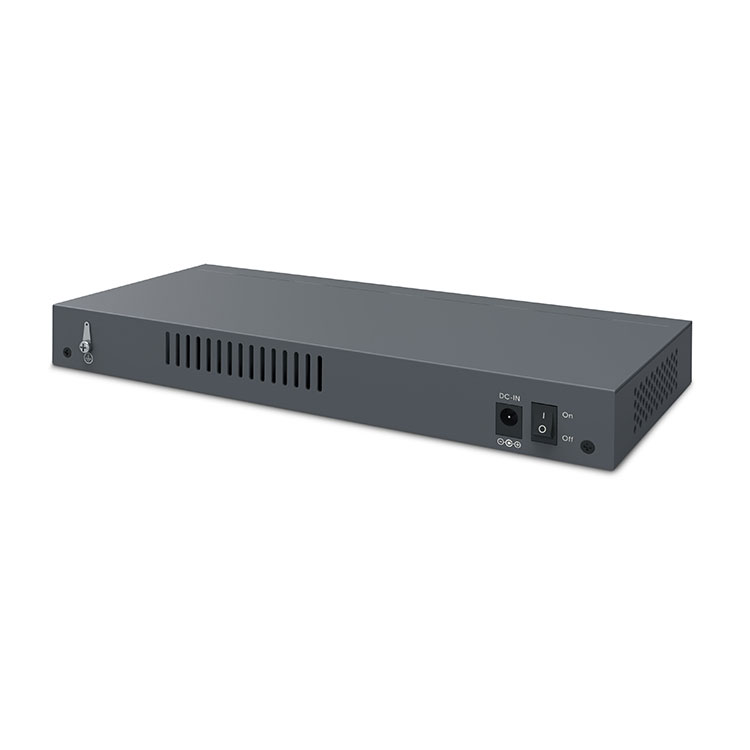

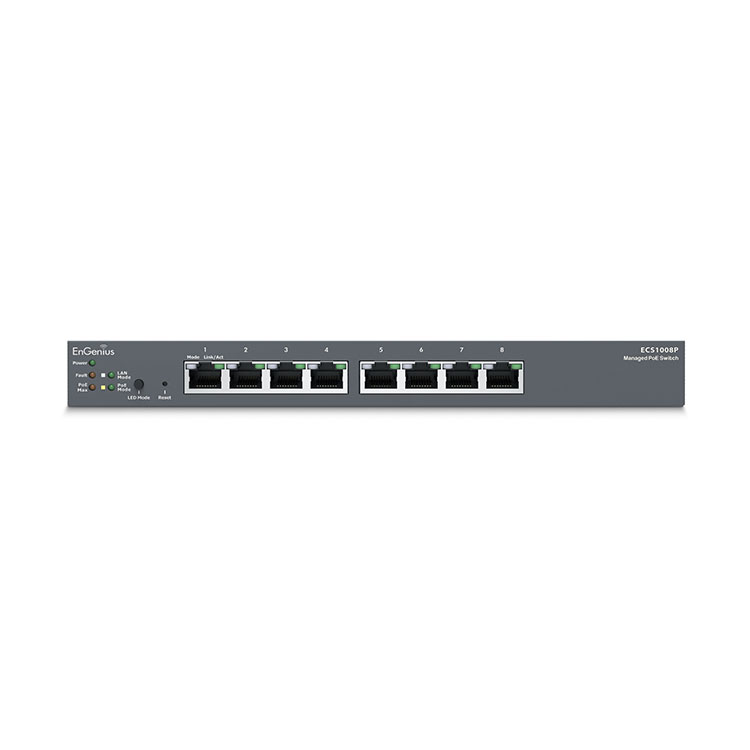

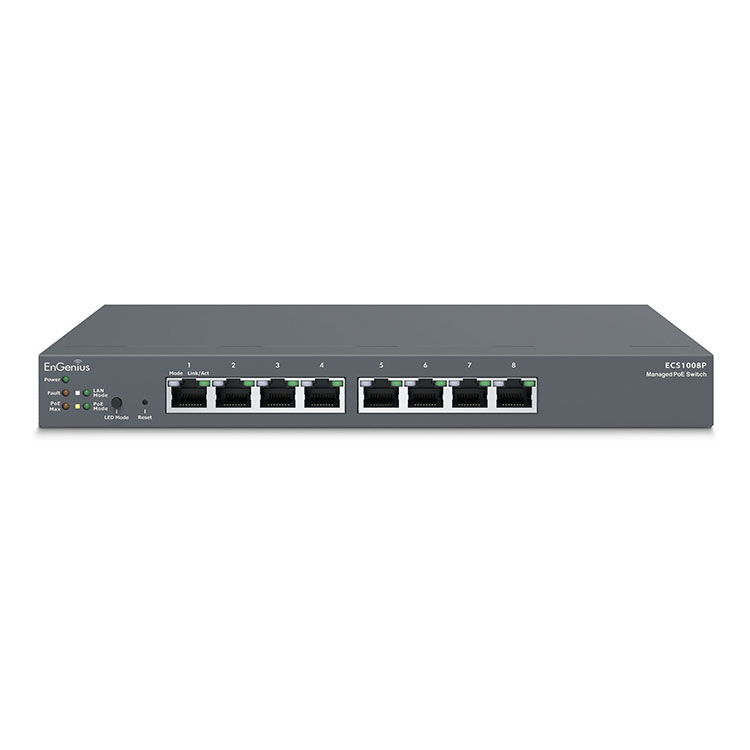

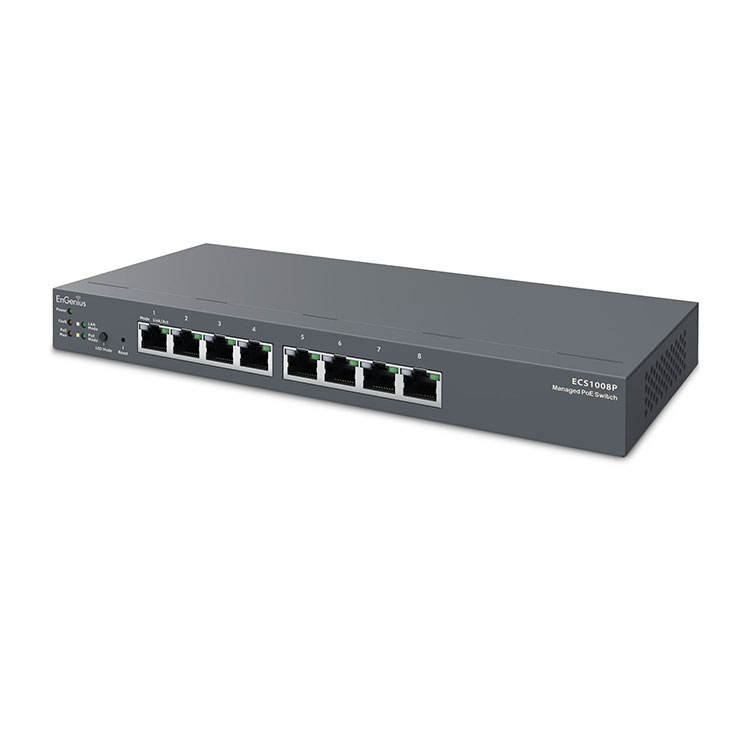

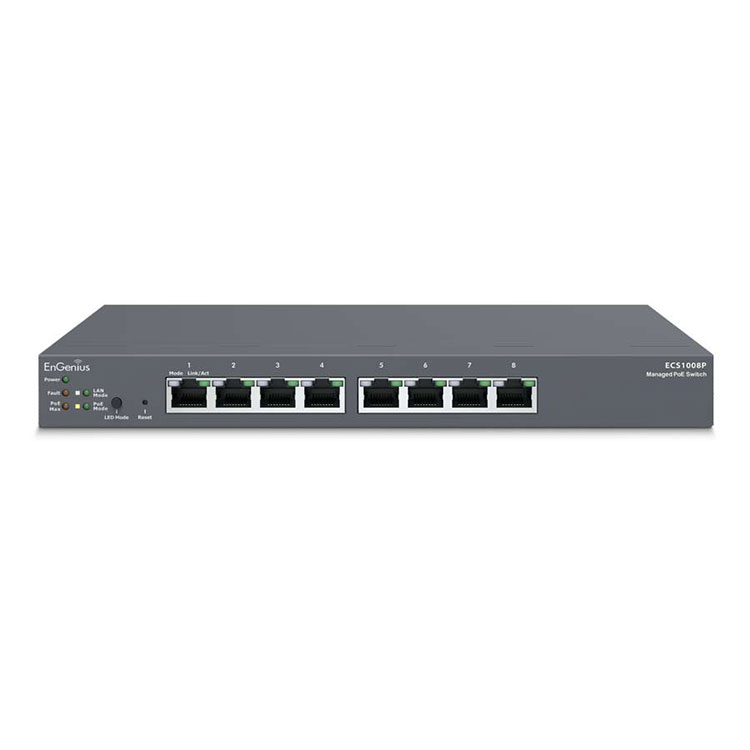

ECS1008P
Product Highlights
EnGenius Cloud ECS1008P, an 8-Port Gigabit PoE Layer 2 Switch with 55W Budget. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance while reducing capital and operating expenses for cost-conscious SMBs.
- 8 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 802.3af PoE Ready on All Ports with 55W PoE budget
- 16 Gbps Switching capacity
- Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations

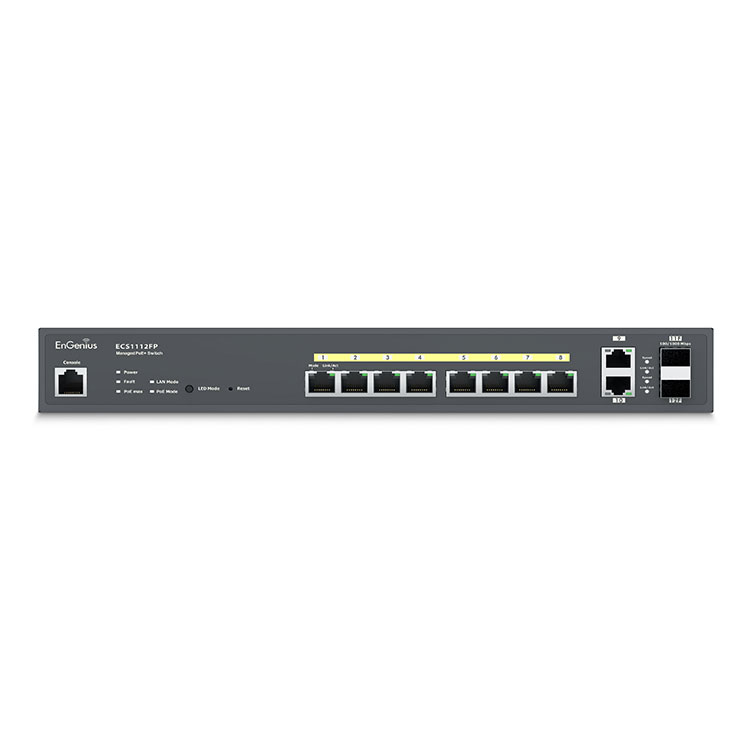

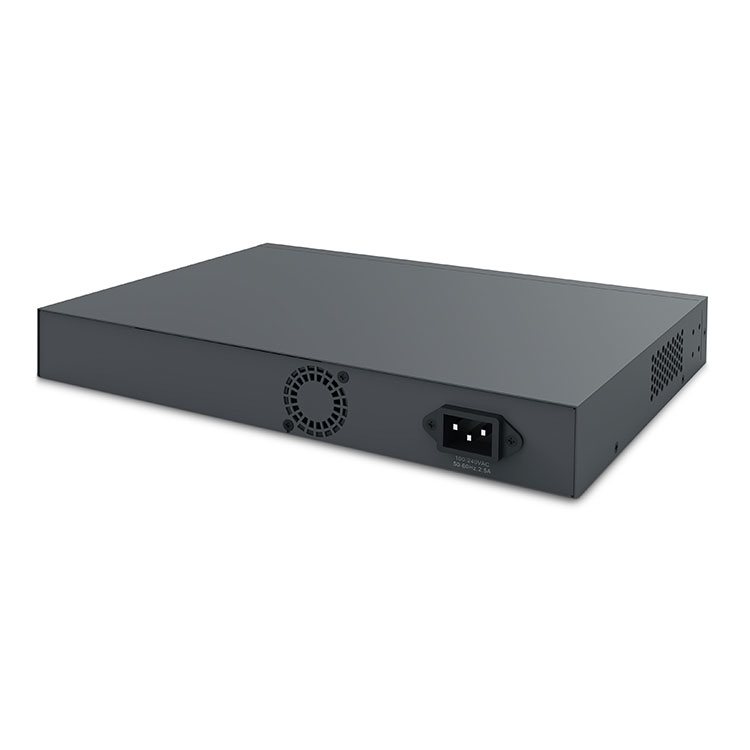

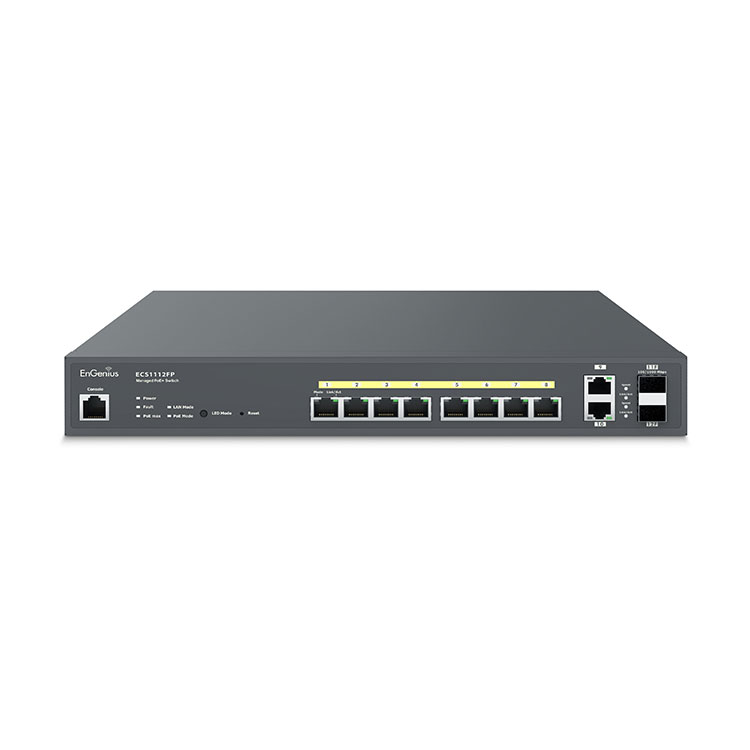

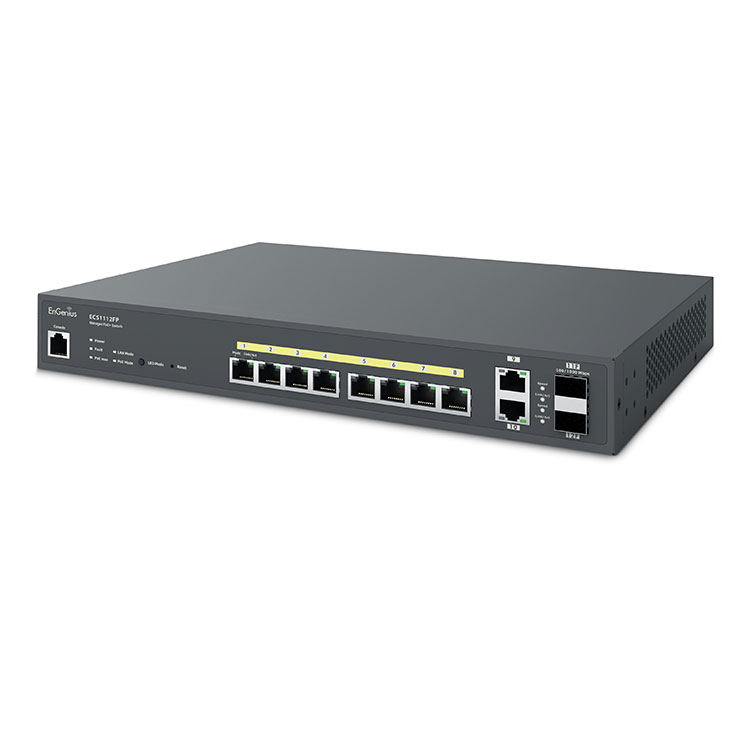

ECS1112FP
Product Highlights
EnGenius Cloud ECS1112FP, an 8-Port Gigabit PoE+ Layer 2+ Switch with 130W Budget, 2 GbE and 2 Dual-Speed SFP ports for uplinks. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.
- 8 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 802.3 at/af PoE+ Ready on All Ports with 130W PoE budget
- 24 Gbps Switching capacity
- 2 Gigabit Ethernet Port and 2 Dual-Speed SFP (fiber) uplink ports

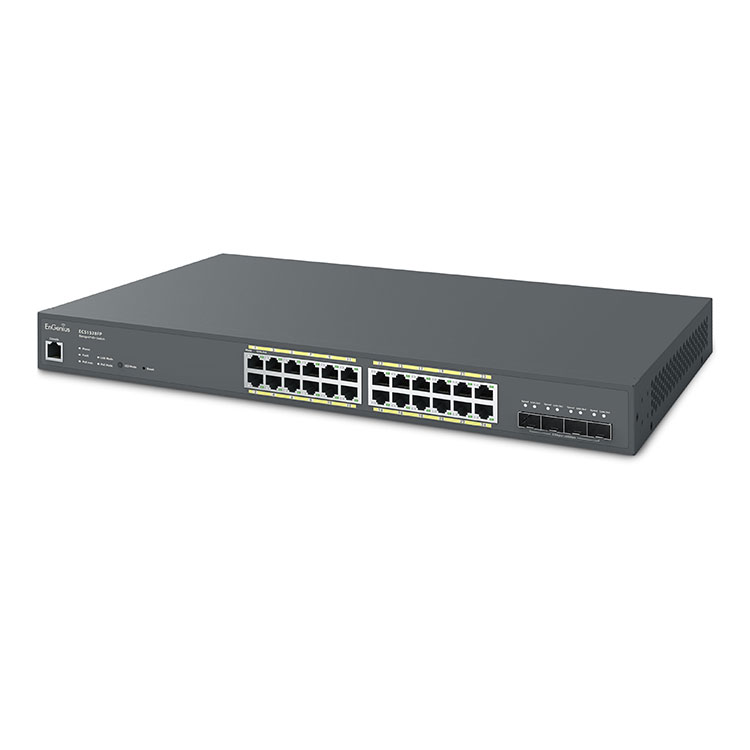

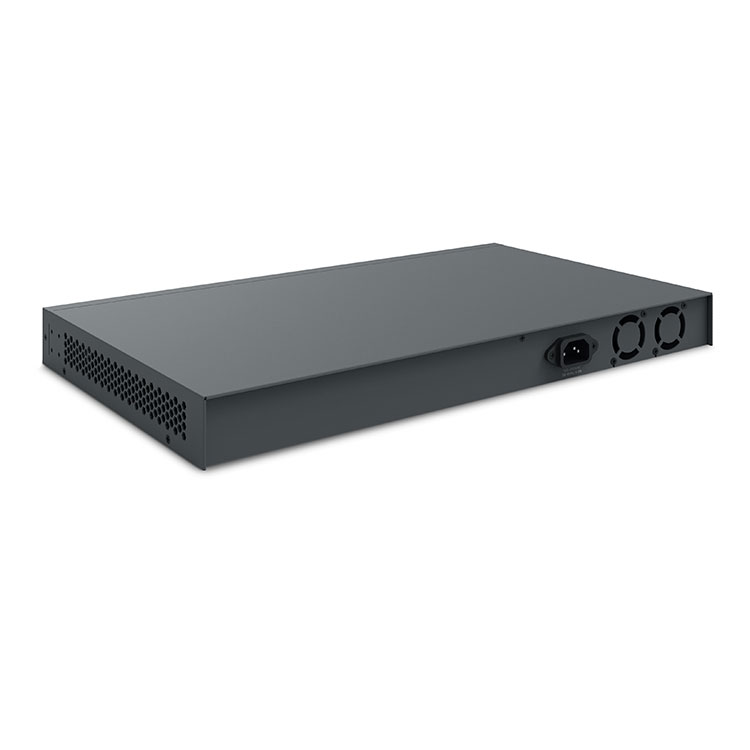

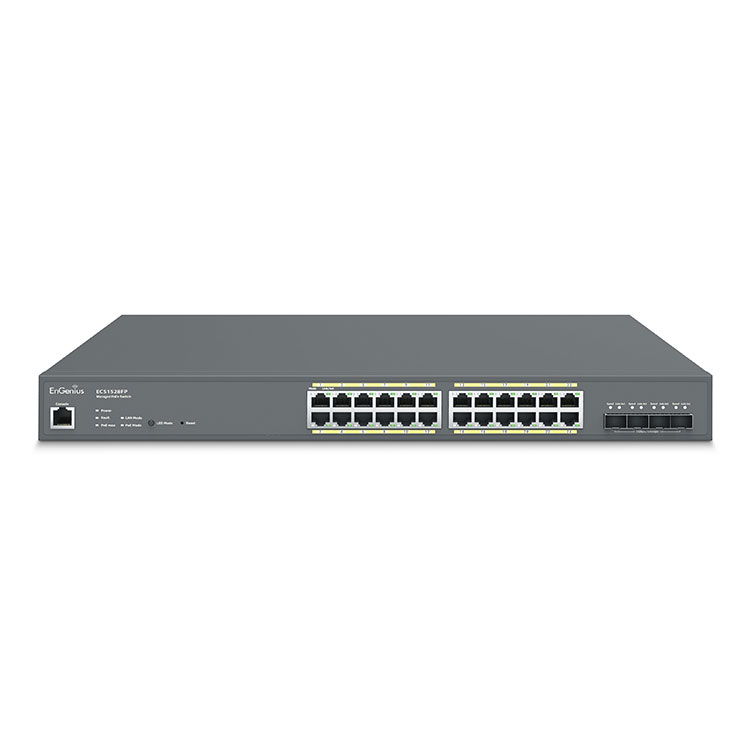

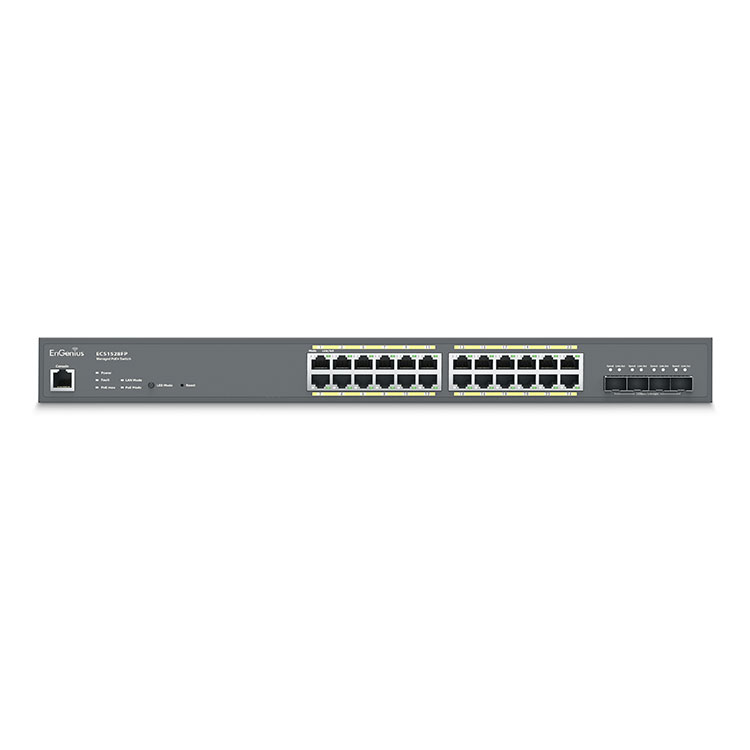

ECS1528FP
Product Highlights
EnGenius Cloud ECS1528FP, a 24-Port Gigabit PoE+ Layer 2+ Switch with a 410W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.
- 24 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 802.3 at/af PoE+ Ready on All Ports with 410W PoE budget
- 128 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Available with Hardware v2 and Later
- PoE Extended Mode – Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard – Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades

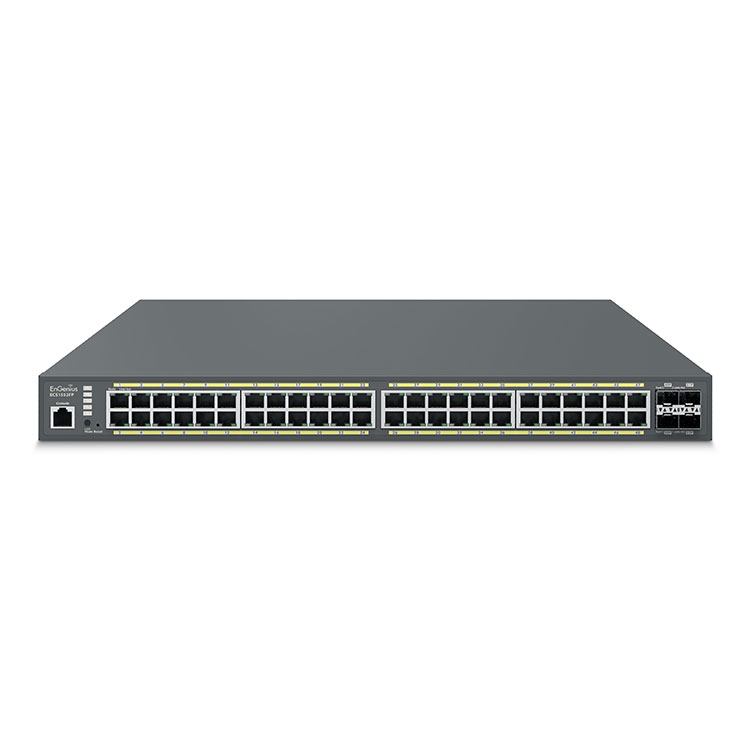

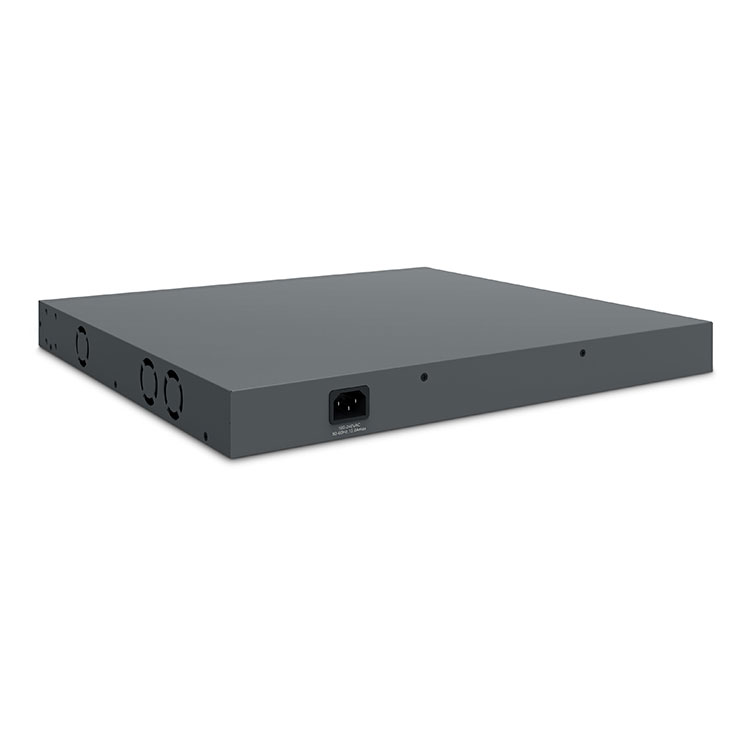

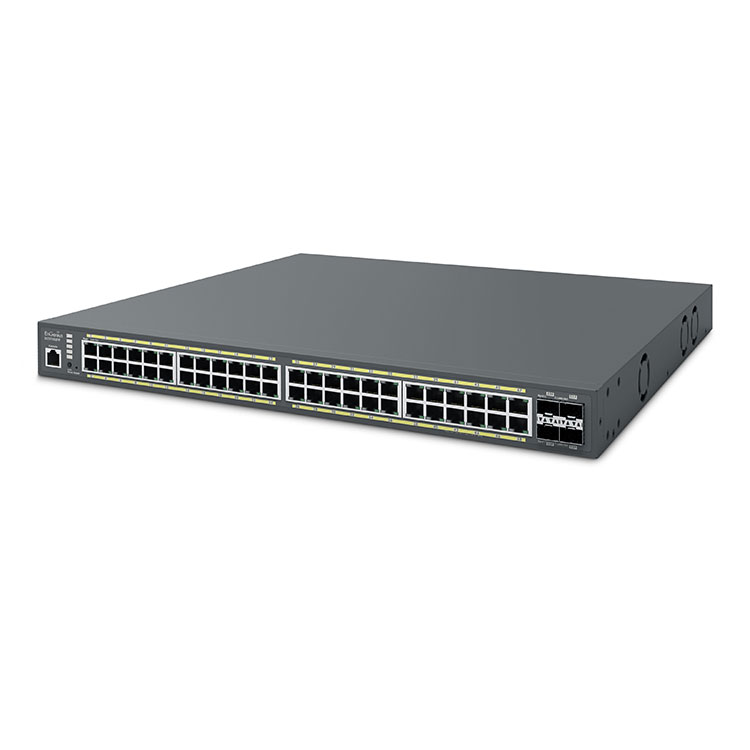

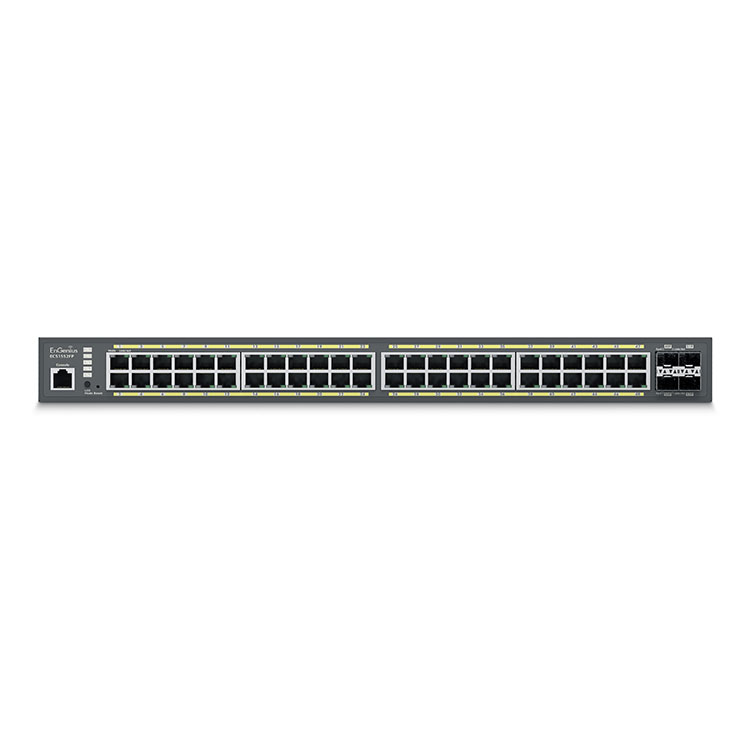

ECS1552FP
Product Highlights
EnGenius Cloud ECS1552FP, a 48-Port Gigabit PoE+ Layer 2+ Switch with a 740W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.
- 48 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
- 176 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Available with Hardware v2 and Later
- PoE Extended Mode – Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard – Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades
General System
ECS1008P
ECS1112FP
ECS1528FP
ECS1552FP
Interface
| Model Name | ECS1008P | ECS1112FP | ECS1528FP | ECS1552FP |
|---|---|---|---|---|
| Description | Cloud ECS 8-Port 55W 802.3af Managed Switch | Cloud ECS 8-Port 130W PoE+ Managed Switch | Cloud ECS 24-Port SFP+ 410W PoE+ Managed Switch | Cloud ECS 48-Po SFP+740W PoE Managed Switch |
| 100/1000 Base-T Ports | 8 | 10 | 24 | 48 |
| 100/1000 SFP Ports | 0 | 2 | 0 | 0 |
| 10G SFP+ Ports | 0 | 0 | 4 | 4 |
| RJ45 Console Port | 0 | 1 | 1 | 1 |
| PoE Capable Ports | 8-Jan | 8-Jan | 24-Jan | Jan-48 |
Performance
| Model Name | ECS1008P | ECS1112FP | ECS1528FP | ECS1552FP |
|---|---|---|---|---|
| Switching Capacity (Gbps) | 16Gbps | 24Gbps | 128Gbps | 176Gbps |
| Max. Packet Forwarding Rate (Mpps) | 11.90Mpps | 17.856Mpps | 95.23Mpps | 130.95Mpps |
| MAC Address Table Size | 8K | 8K | 16K | 32K |
| Packet Buffer Size |
512KB | 512KB | 1.5MB | 2MB |
Physical Specifications
| Model Name | ECS1008P | ECS1112FP | ECS1528FP | ECS1552FP |
|---|---|---|---|---|
| Dimension | 240mm x 105mm x 27mm | 330mm x 230mm x 44mm | 440mm x 260mm x 44mm | 440mm x 310mm 44mm |
| Fan | Fanless | Fan | Fan | Fan |
| Power Input | 100-240 VAC | 100-240 VAC | 100-240 VAC | 100-240 VAC |

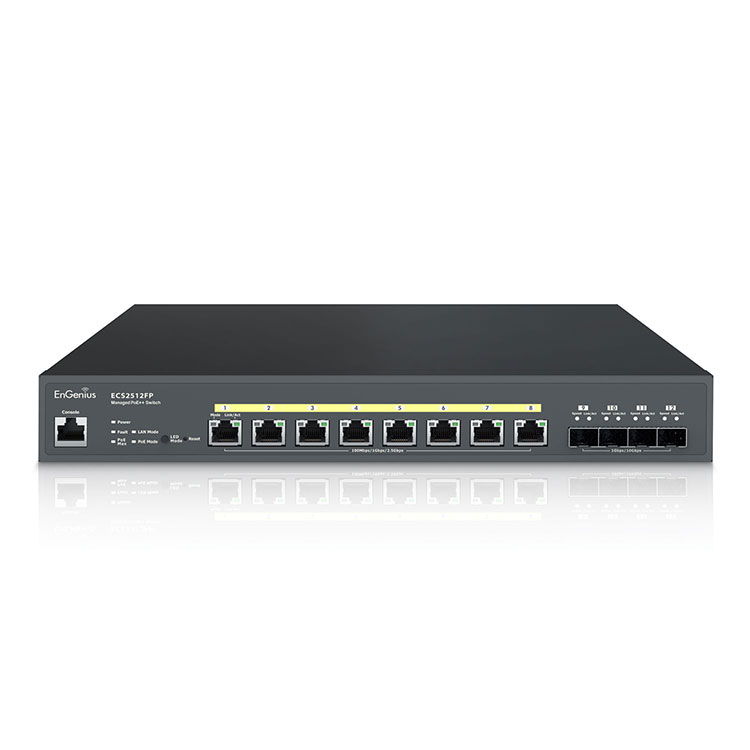

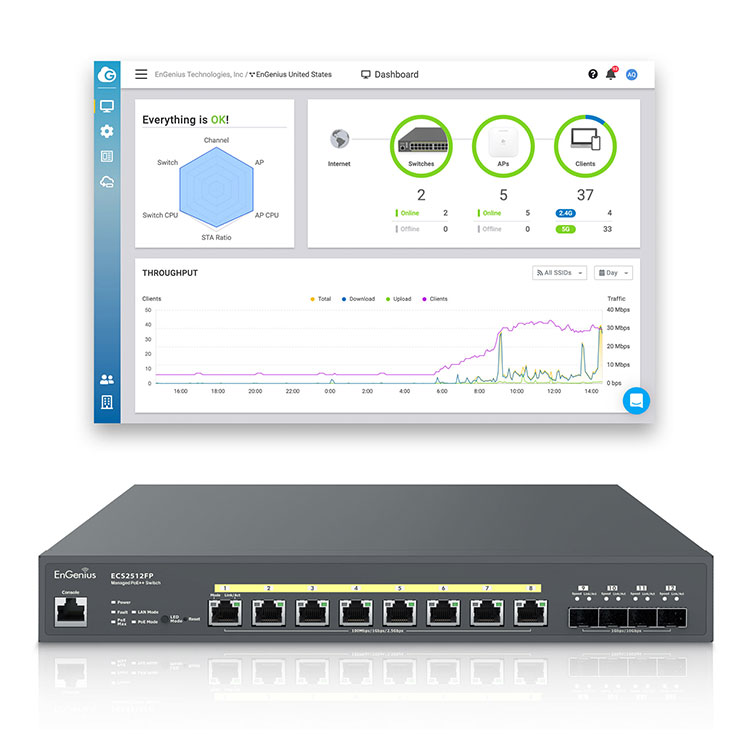

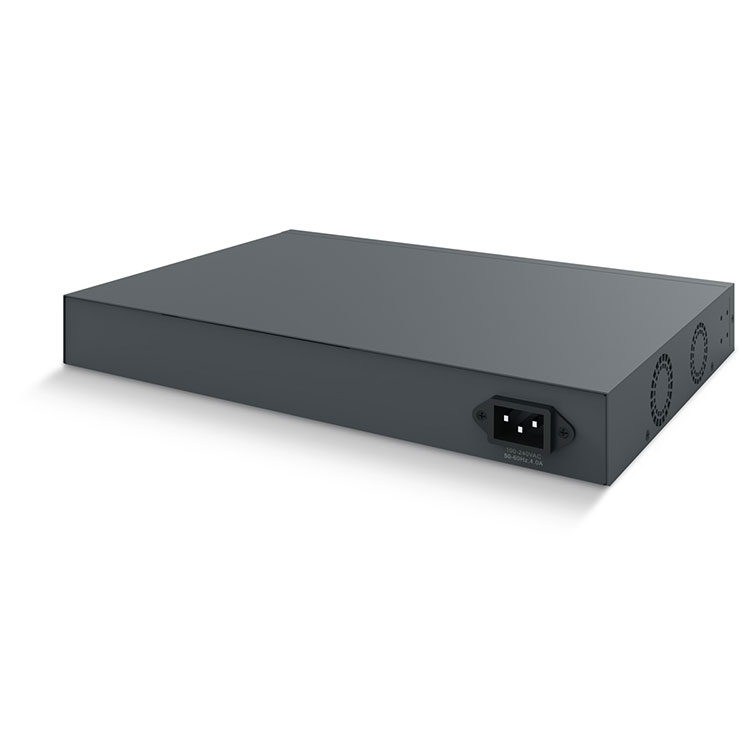

ECS2512FP
Product Highlights
EnGenius Cloud ECS2512FP Multi-Gigabit 2.5 Gb Switch has 8-Ports, 2.5G per port, 802.3af/at/bt PoE++ Layer 2+ with 240W Budget, and 4 10G SFP+ uplink ports. Multi-Gigabit switches optimize network efficiency ensuring peak performance for large businesses. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or budget.
- Full-Featured Layer 2+ Switching
- 8 10/100/1000/2500 Base-T GbE Ports to serve high-bandwidth devices
- 802.3af/at/bt PoE++ capable on all ports with a 240W PoE budget
- 120 Gbps Switching capacity for improved performance
- 4 Dual-Speed 10G SFP+ (fiber) uplink ports

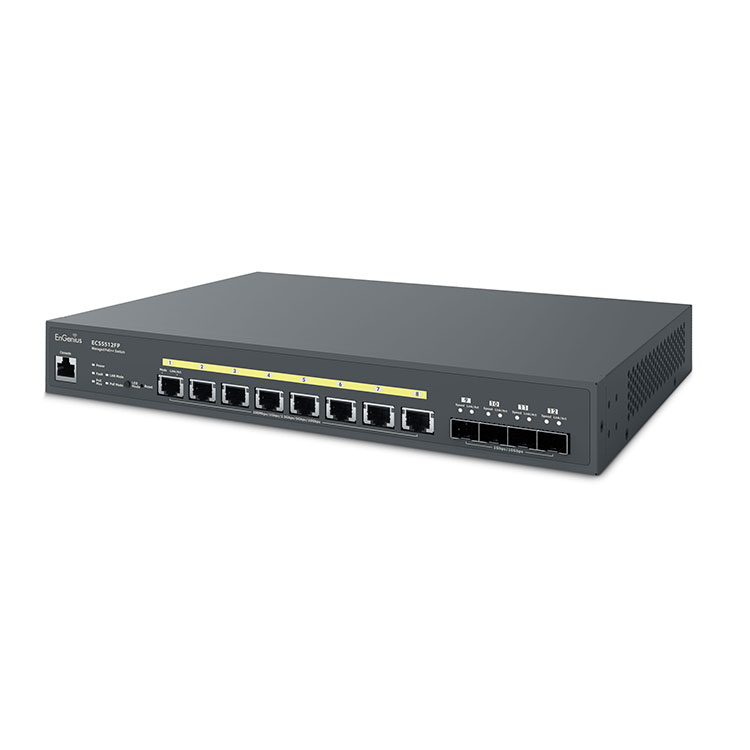

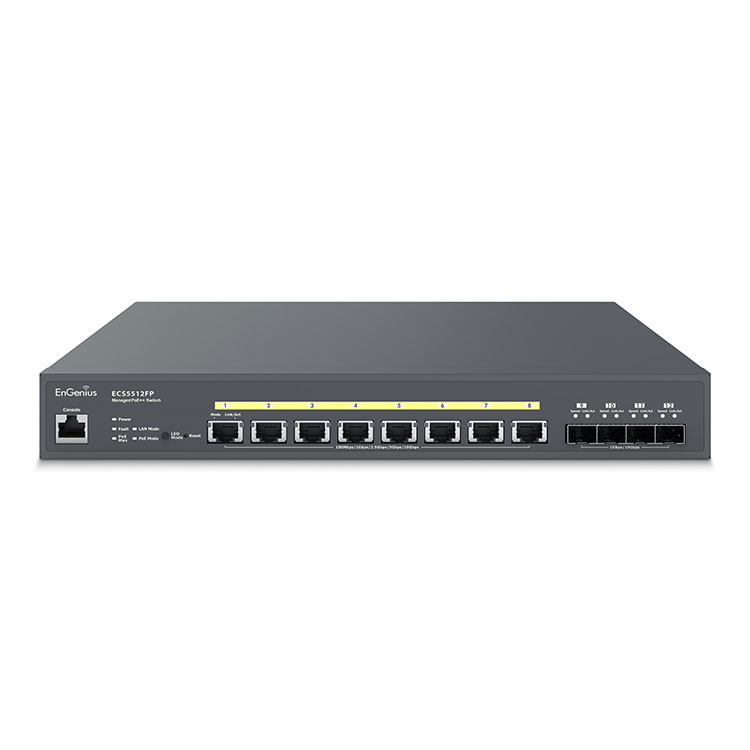

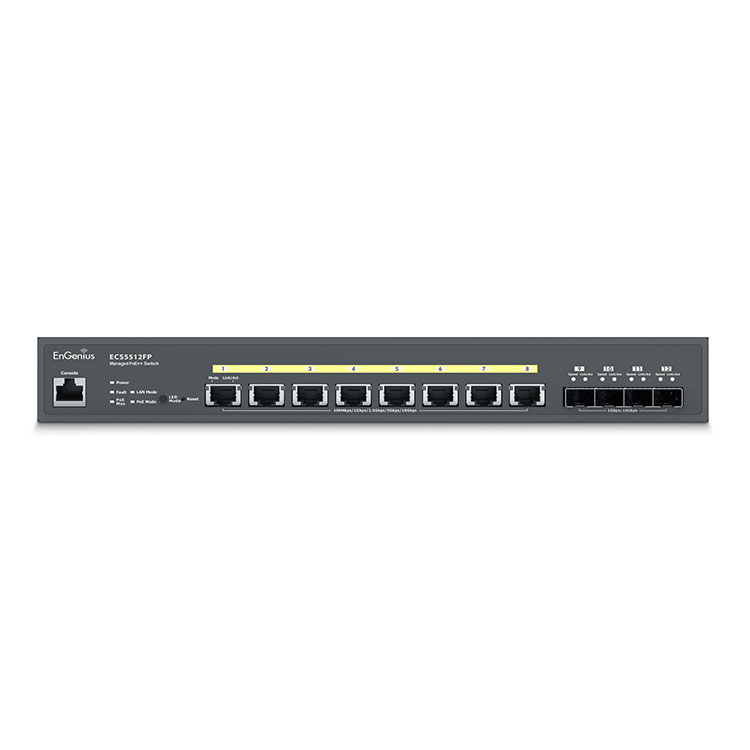

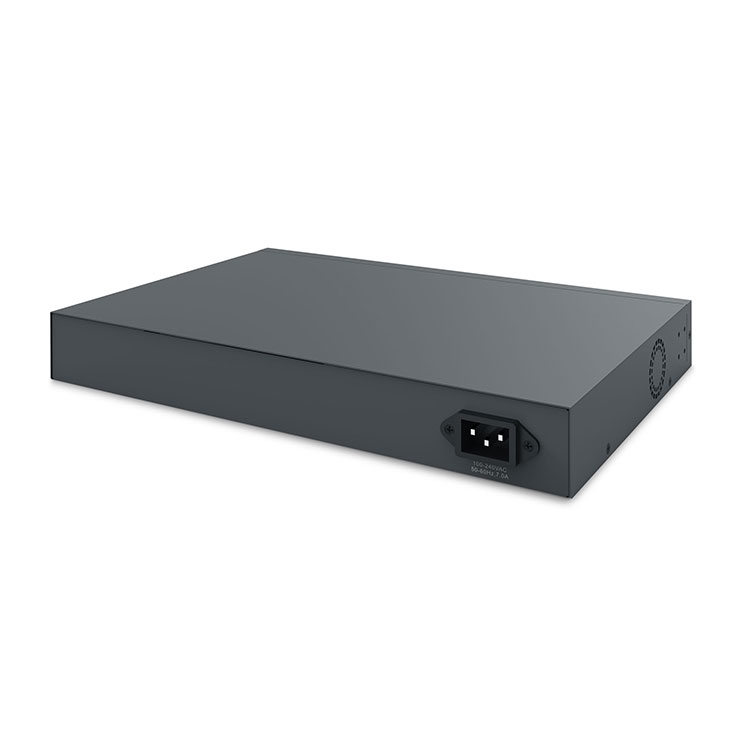

ECS5512FP
Product Highlights
The EnGenius Cloud ECS5512FP is an 8-port, 10G per port, PoE++ layer 2+ switch that comes with a 420W power budget and 4 10G uplink ports, ensuring peak network efficiency and performance for successful large businesses. Choose Cloud or on-premises management based on your network architecture, administrative permissions, technical aptitude, and budget.
Full-featured layer 2+ switching.
- 8 100/1000/2500/5000/10000 Base-T GbE ports to serve high-bandwidth devices
- 802.3af/at/bt PoE++ capable on all ports with a 420W PoE budget for maximum power supply to devices
- 240 Gbps switching capacity for improved performance
- 4 Dual-Speed 10G SFP+ (fiber) uplink ports to connect at long distances, high speeds & high capacity
- Security – access control list/port security; 802.1X & RADIUS authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad link aggregation (LACP) supports traffic load balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
General System
ECS2512FP
ECS5512FP
Interface
| Model Name | ECS2512FP | ECS5512FP |
|---|---|---|
| Description | Cloud ECS 8-Port MultiG SFP+ 240W PoE++ Managed Switch |
Cloud ECS 8-Port 10G SFP+ 420W PoE++ Managed Switch |
| 2.5-Gigabit Ethernet Ports | 8 | N/A |
| 10-Gigabit Ethernet Ports | N/A | 8 |
| 100/1000 SFP Ports | 0 | 0 |
| 10G SFP+ Ports | 4 | 4 |
| RJ45 Console Port | 1 | 1 |
| PoE Capable Ports | 1-8 | 1-8 |
Performance
| Model Name | ECS2512FP | ECS5512FP |
|---|---|---|
| Switching Capacity (Gbps) | 120Gbps | 240Gbps |
| Max. Packet Forwarding Rate (Mpps) | 89.29Mpps | 8178.57Mpps |
| MAC Address Table Size | 32K | 32K |
| Packet Buffer Size |
1.5MB | 1.5MB |
| RJ45 Console Port |
1 | 1 |
| PoE Capable Ports |
1-8 | 1-8 |
Physical Specifications
| Model Name | ECS2512FP | ECS5512FP |
|---|---|---|
| Dimension | 330mm x 230mm x 44mm | 330mm x 230mm x 44mm |
| Fan | Fan | Fan |
| Power Input | 100-240 VAC | 100-240 VAC |
