L2 + NON-POE CLOUD SIWTCH
EnGenius EnSky and Cloud managed Switches offer enterprise-class features, simplified network configuration, robust management options, and optimal network performance for small to mid-size organizations.

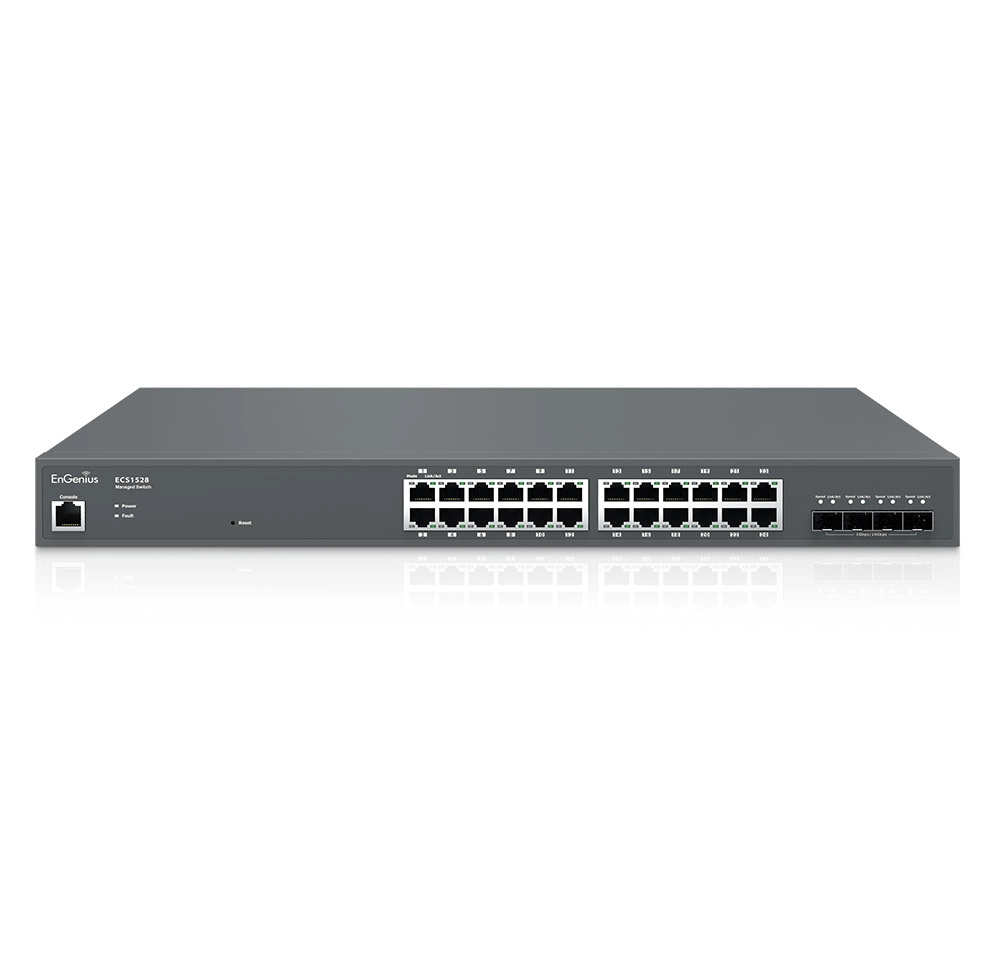

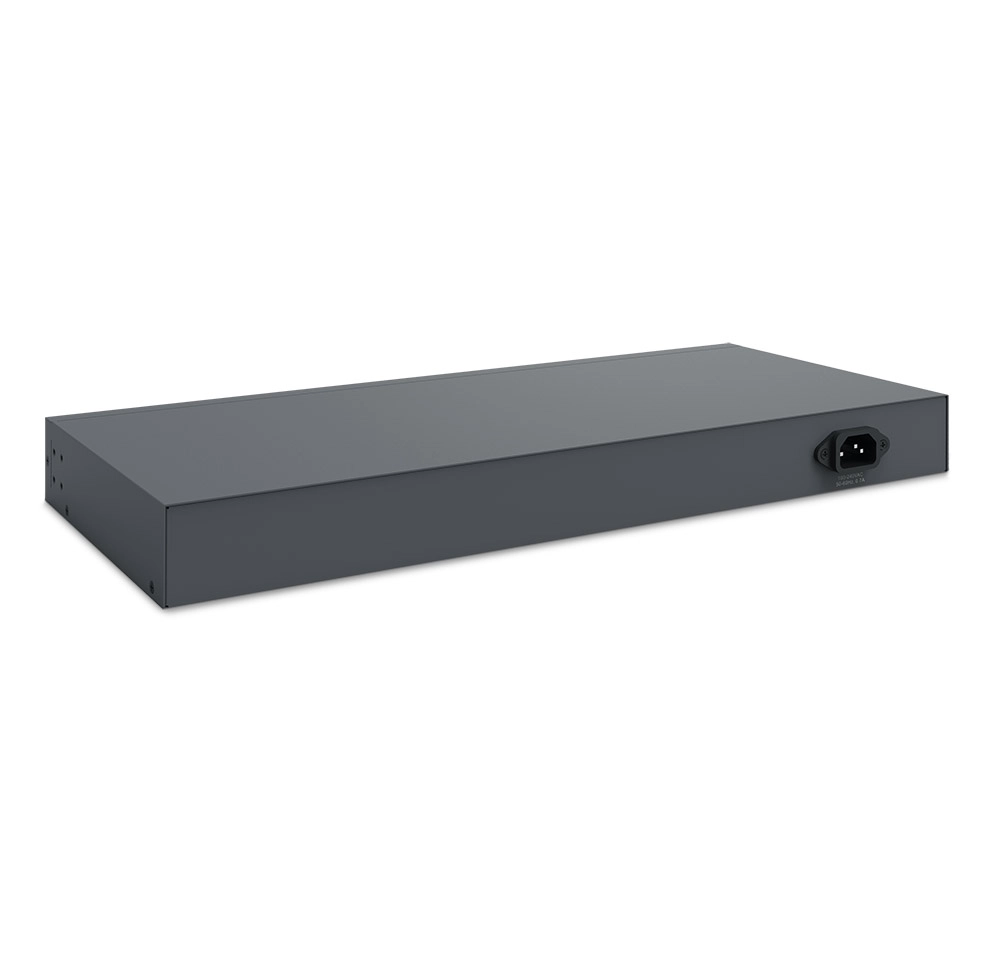

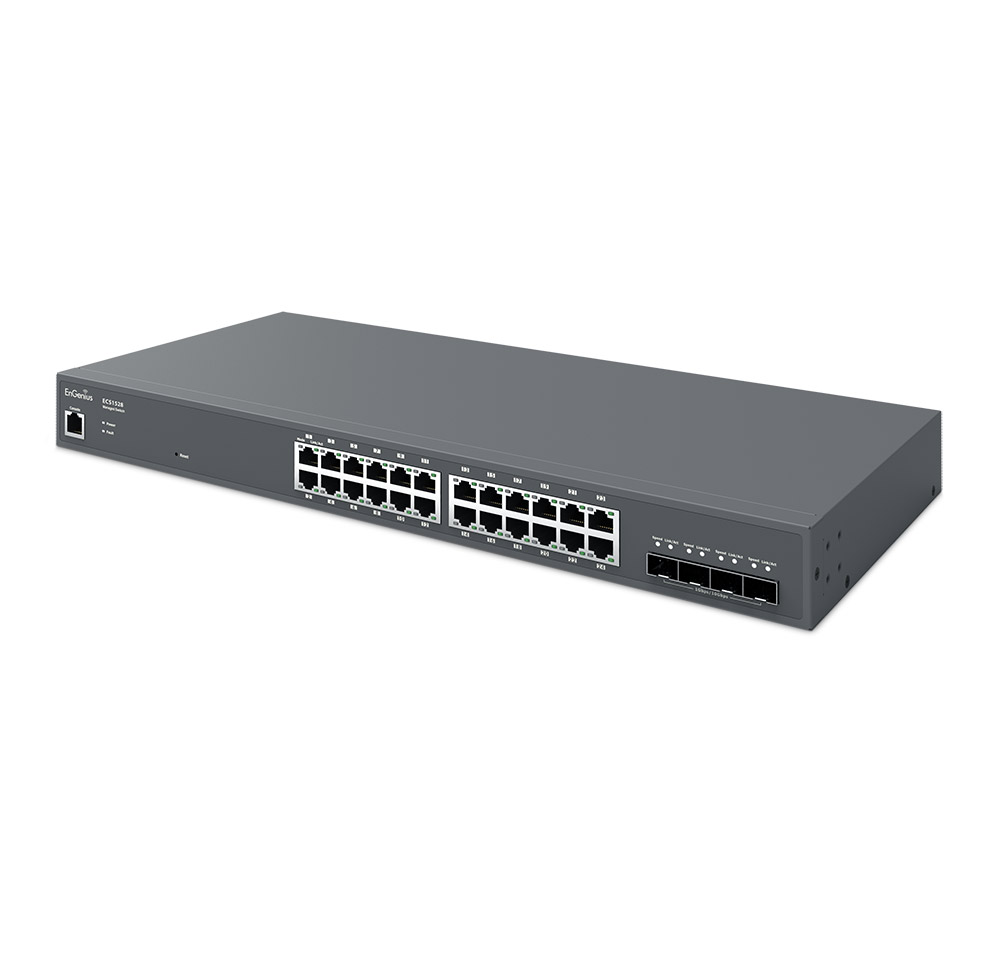

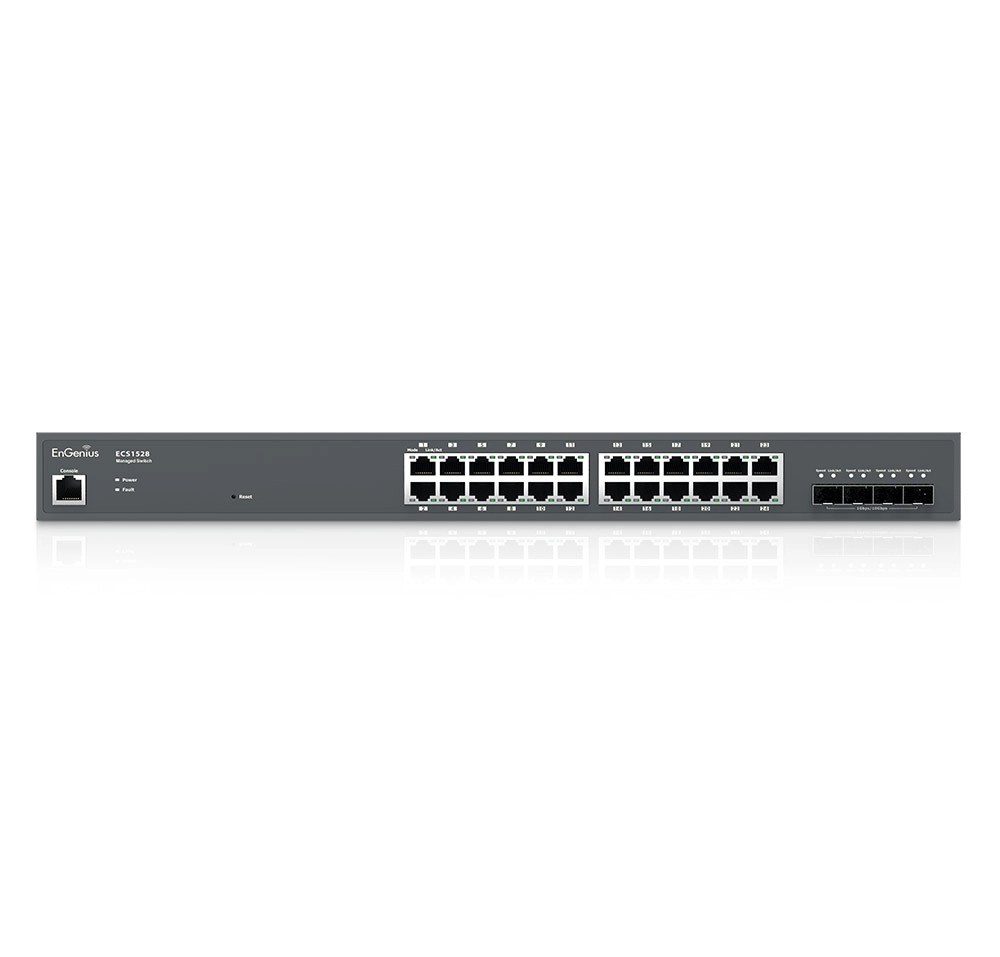

ECS1528
Product Highlights
EnGenius Cloud ECS1528 is a 24-Port Gigabit Layer 2+ Switch with 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for large businesses.
- 24 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 128 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Security – Access Control List/Port Security; 802.1X & RADIUS Authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency

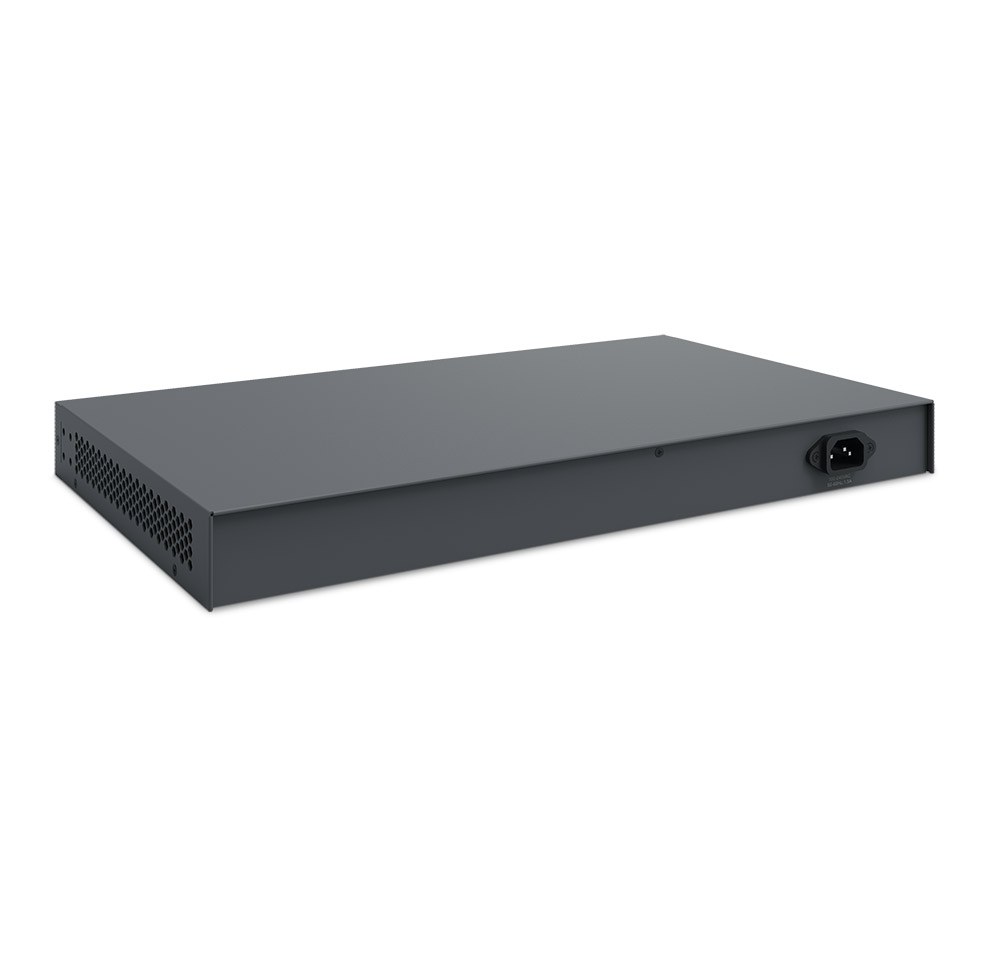

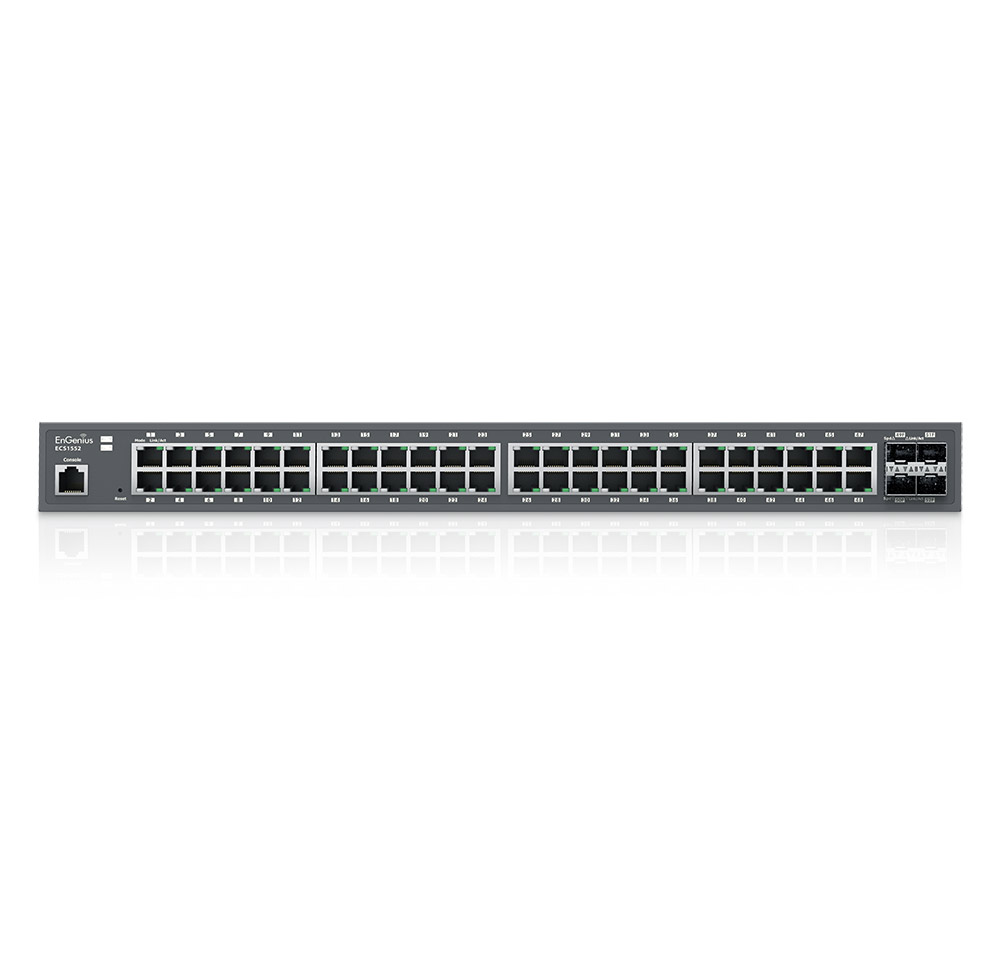

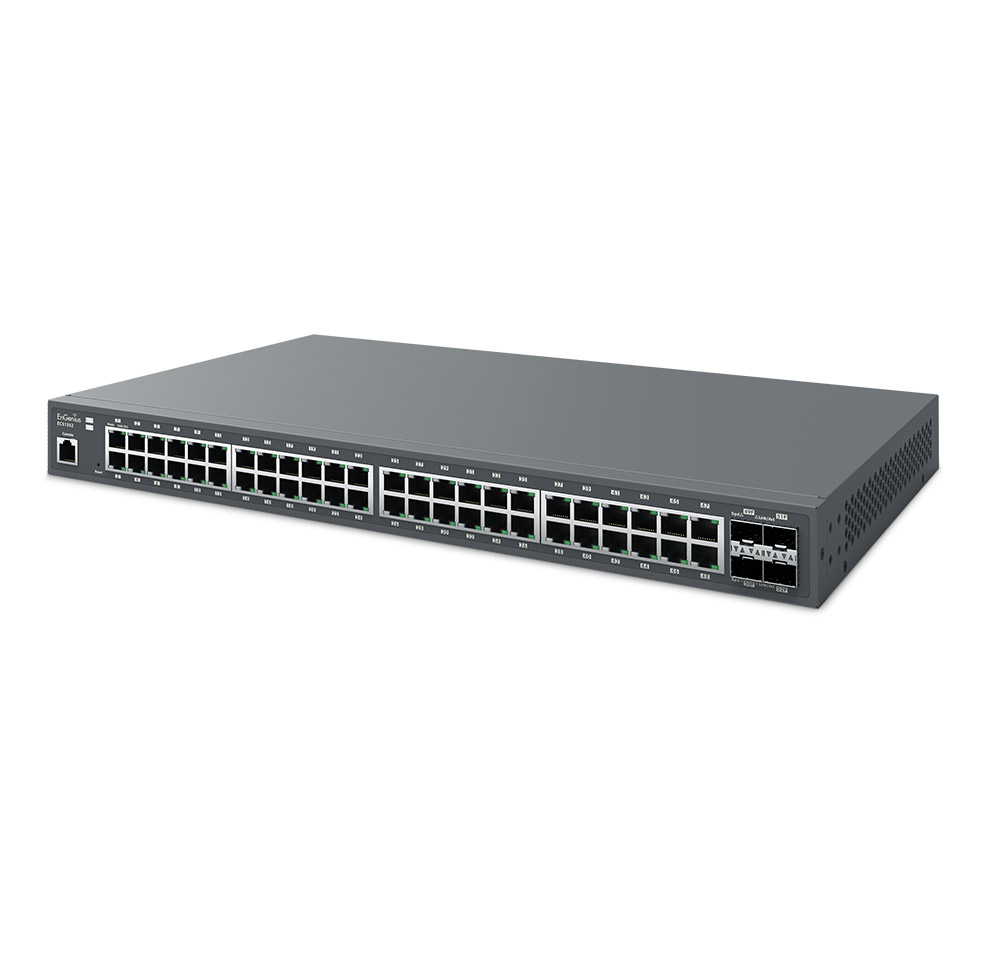

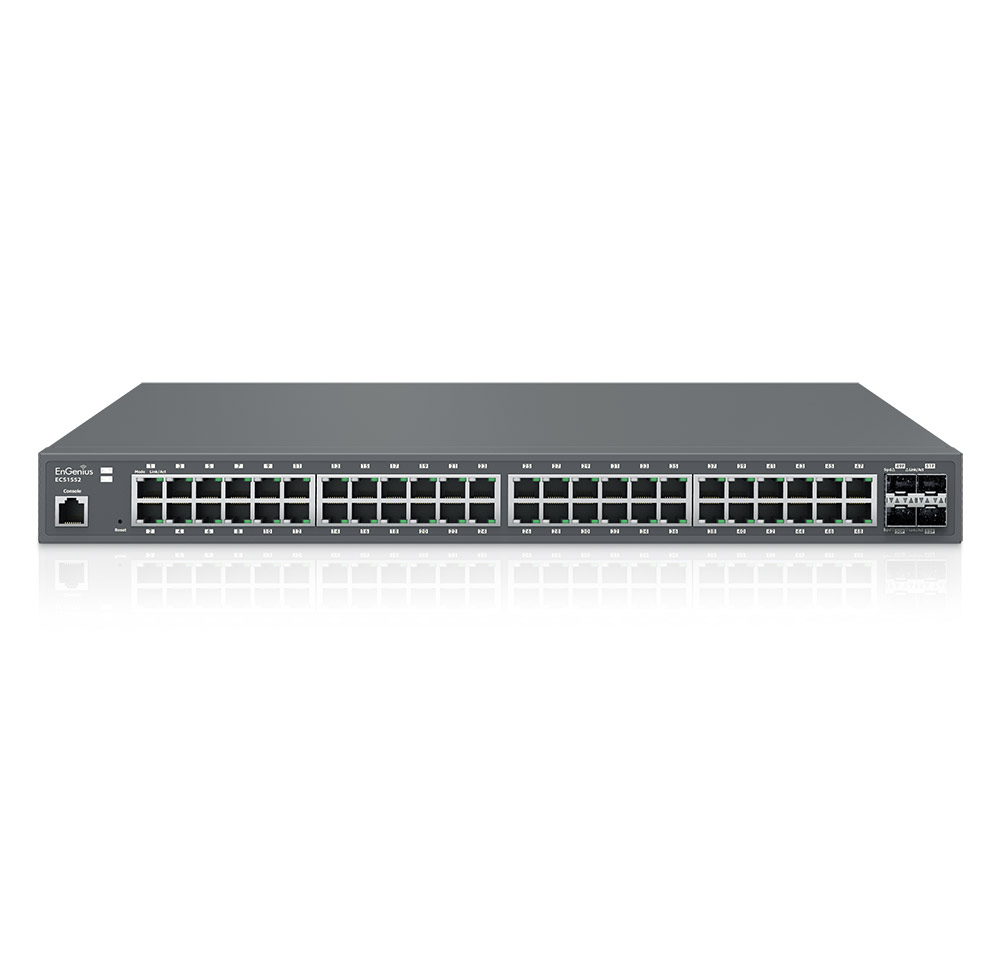

ECS1552
Product Highlights
EnGenius Cloud ECS1552 is a 48-Port Gigabit Layer 2+ Switch with 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for large businesses.
- 48 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 176 Gbps Switching capacity
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- Security – Access Control List/Port Security; 802.1X & RADIUS Authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency

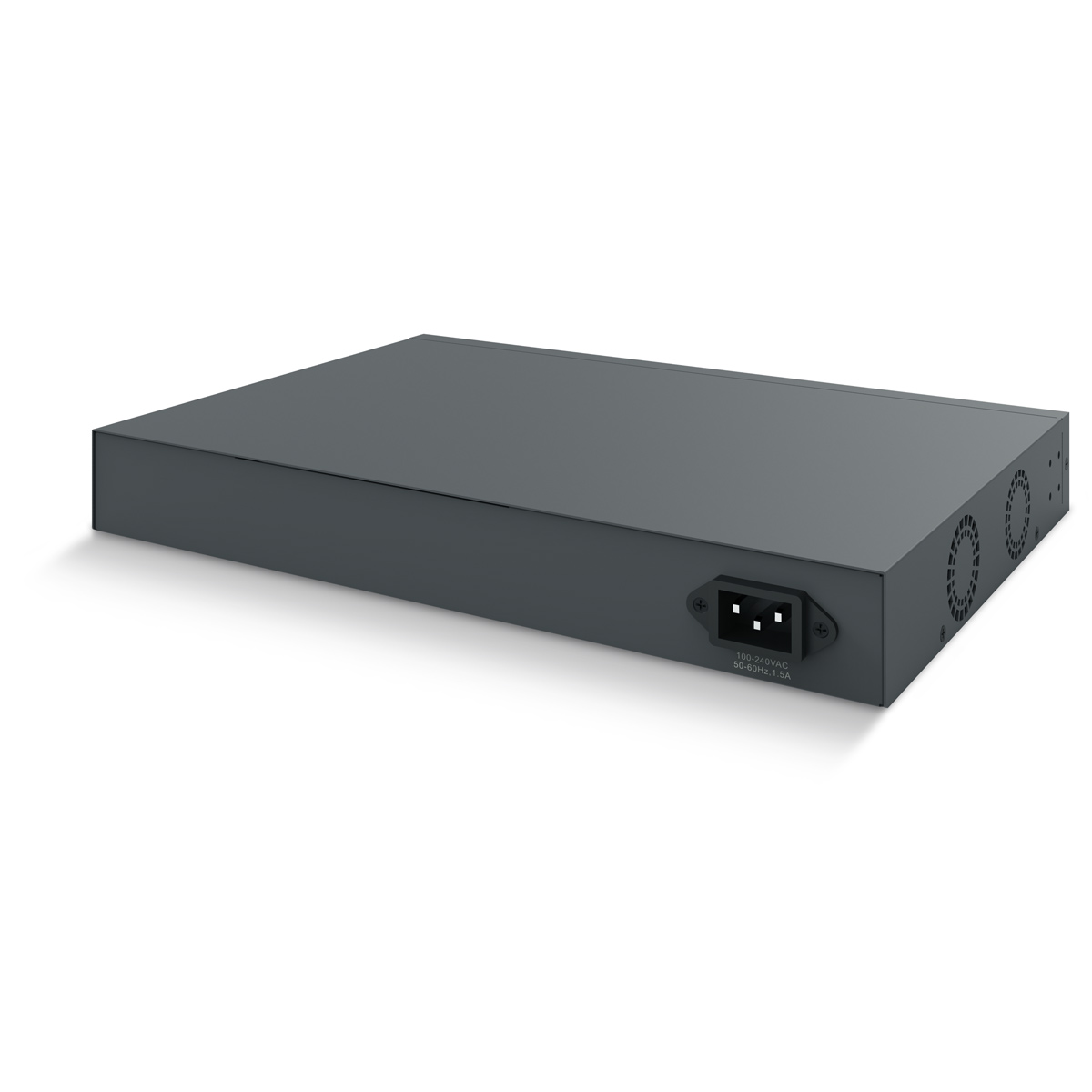

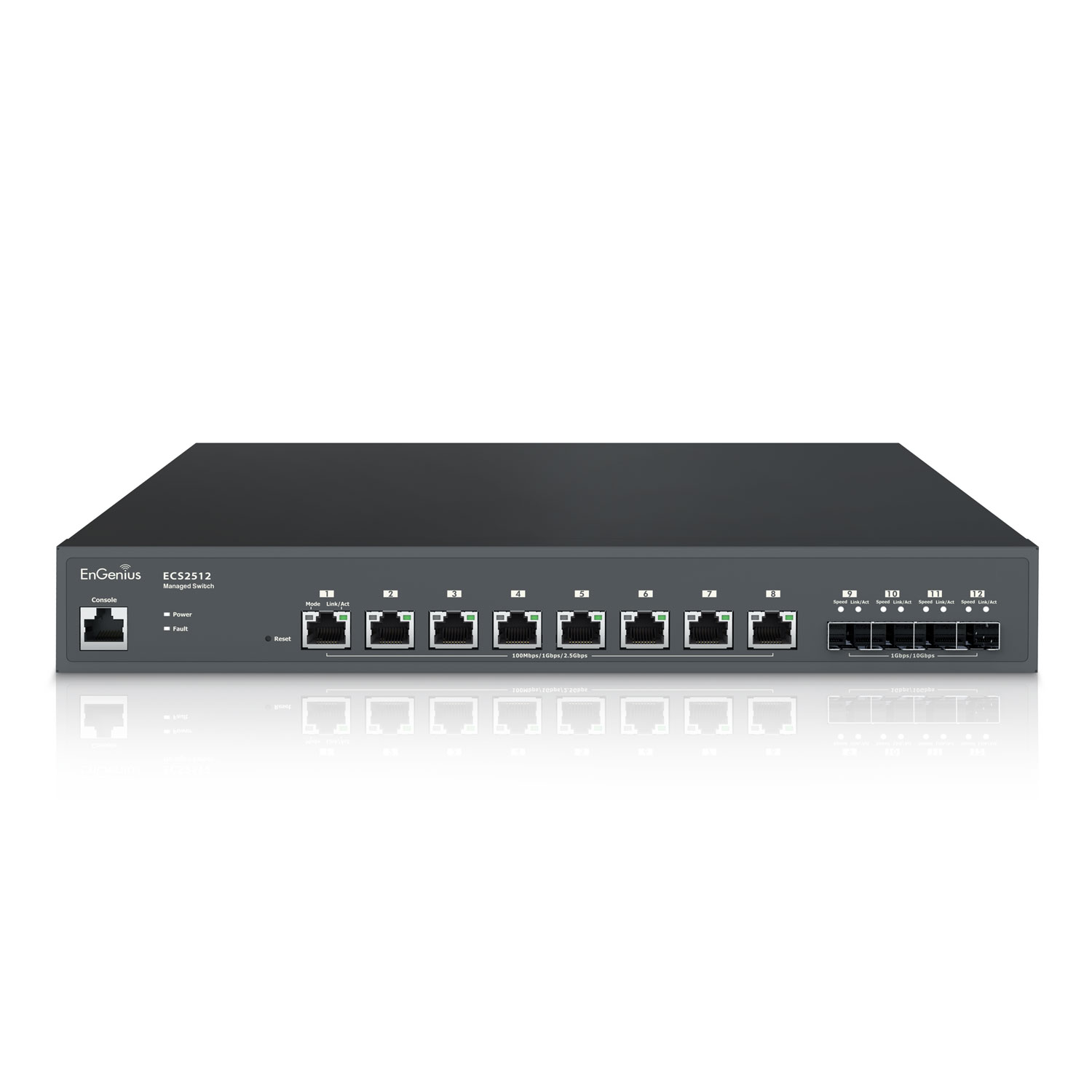

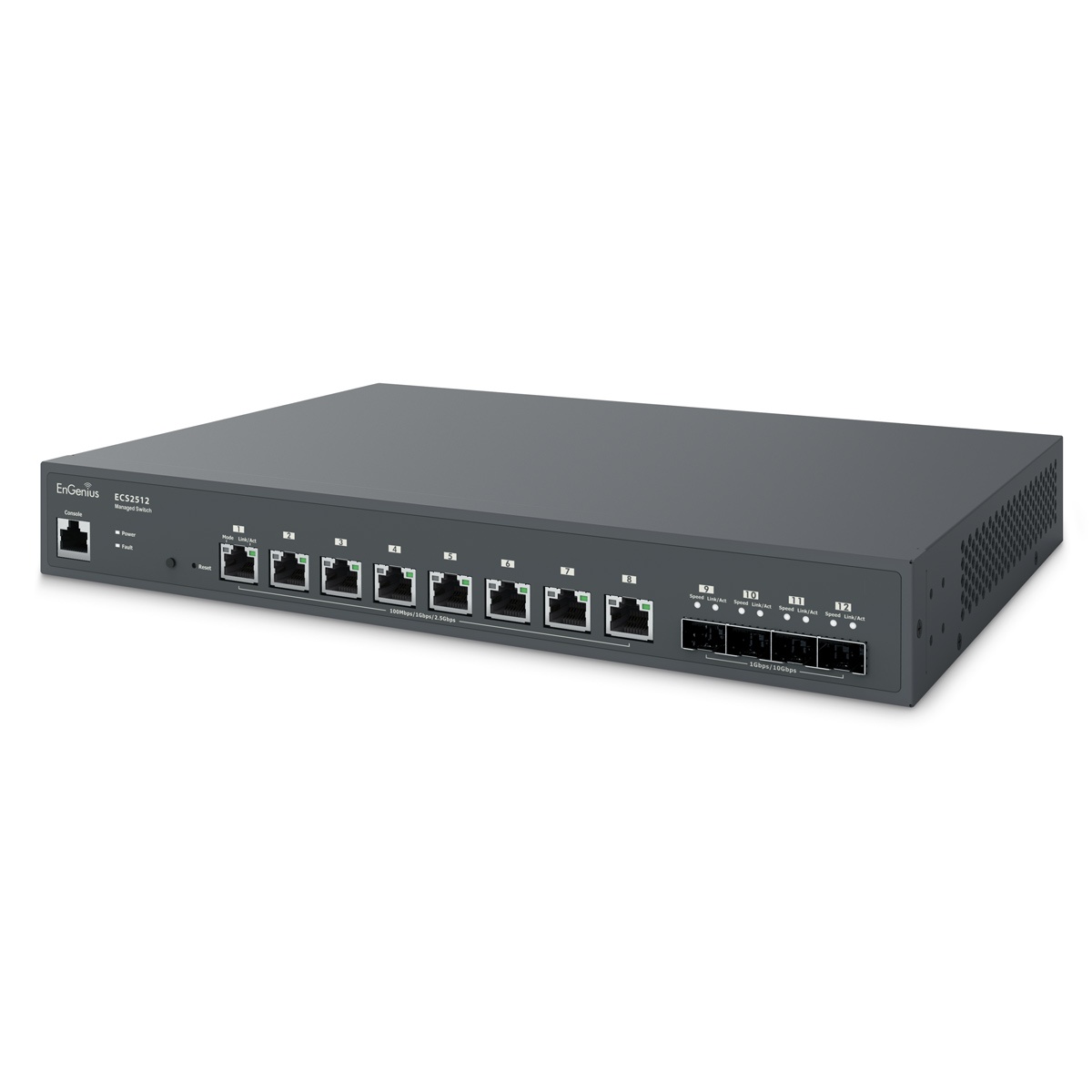

ECS2512
Product Highlights
EnGenius Cloud Multi-Gigabit ECS2512 is an 8-Port, 2.5G per port, Layer 2+ Switch with 4 10G SFP+ uplink ports. Multi-Gig switches with enterprise-class features optimize network efficiency ensuring peak performance for large businesses. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or budget.
- Full-Featured Layer 2+ Switching
- 8 10/100/1000/2500 Base-T GbE Ports to serve high-bandwidth devices
- 120 Gbps Switching capacity for improved performance
- 4 Dual-Speed 10G SFP+ (fiber) uplink ports
- Security – Access Control List/Port Security; 802.1X & RADIUS Authentication
ECS5512
Product Highlights
The EnGenius Cloud ECS5512 is an 8-port, 10G per port, layer 2+ switch that comes with 4 10G uplinks ports. These 10 gig switches with enterprise-class features ensure network efficiency and peak performance for large businesses. Cloud or on-premises management is available based on network architecture, administrative permissions, technical aptitude, and budget.
- Full-featured layer 2+ switching
- 8 100/1000/2500/5000/10000 Base-T GbE ports to serve high-bandwidth devices
- 240 Gbps switching capacity for improved performance
- 4 Dual-Speed 10G SFP+ (fiber) uplink ports to connect at long distances, high speeds & high capacity
- Security – access control list/port security; 802.1X & RADIUS authentication
- IGMP & MLD snooping provides advanced multicast filtering & network efficiency
- 802.3ad link aggregation (LACP) supports traffic load balancing
- Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
- Voice VLAN for fast, reliable deployment of VoIP services
General System
ECS1528
ECS1552
ECS2512
ECS5512
Interface
| Model Name | ECS1528 | ECS1552 | ECS2512 | ECS5512 |
|---|---|---|---|---|
| Description | Cloud ECS 24-Port SFP+ Managed Switch | Cloud ECS 48-Port SFP+ Managed Switch | Cloud ECS 8-Port MultiG SFP+ Managed Switch | Cloud ECS 8-Port 10G SFP+ Managed Switch |
| 100/1000 Base-T Ports | 24 | 48 | N/A | N/A |
| 2.5-Gigabit Ethernet Ports | N/A | N/A | 8 | N/A |
| 10-Gigabit Ethernet Ports | N/A | N/A | N/A | 8 |
| 100/1000 SFP Ports | 0 | 0 | 0 | 0 |
| 10G SFP+ Ports | 4 | 4 | 4 | 4 |
| RJ45 Console Port | 1 | 1 | 1 | 1 |
| PoE Capable Ports | 0 | 0 | 0 | 0 |
Performance
| Model Name | ECS1528 | ECS1552 | ECS2512 | ECS5512 |
|---|---|---|---|---|
| Switching Capacity (Gbps) | 128Gbps | 176Gbps | 120Gbps | 240Gbps |
| Max. Packet Forwarding Rate (Mpps) | 95.23Mpps | 130.95Mpps | 89.29Mpps | 178.57Mpps |
| MAC Address Table Size | 16K | 32K | 32K | 32K |
| Packet Buffer Size |
1.5MB | 2MB | 1.5MB | 1.5MB |
Physical Specifications
| Model Name | ECS1528 | ECS1552 | ECS2512 | ECS5512 |
|---|---|---|---|---|
| Dimension | 440mm x 200mm x 44mm | 440mm x 260mm x 44mm | 330mm x 230mm x 44mm | 330mm x 230mm x 44mm |
| Fan | Fanless | Fan | Fan | Fan |
| Power Input | 100-240 VAC | 100-240 VAC | 100-240 VAC | 100-240 VAC |
