General Systems

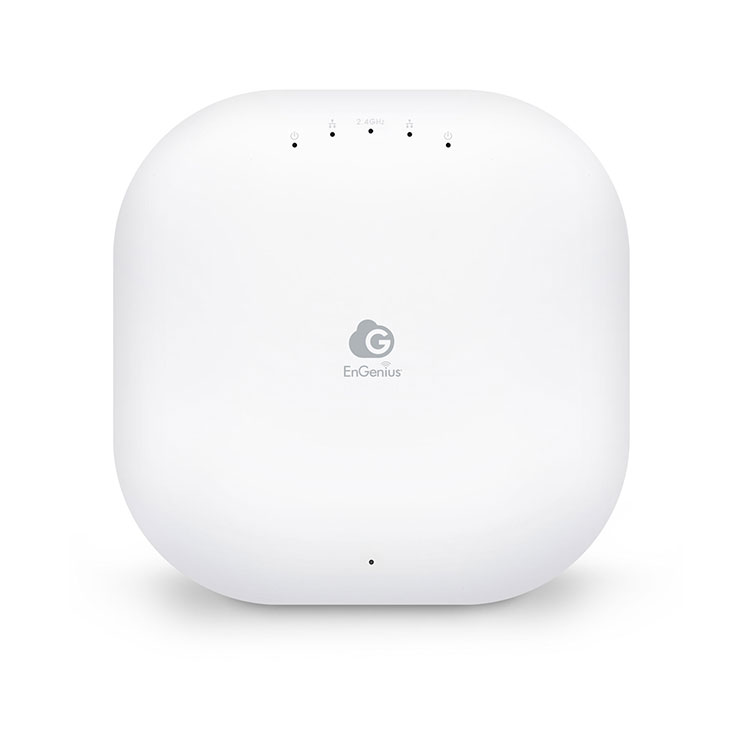

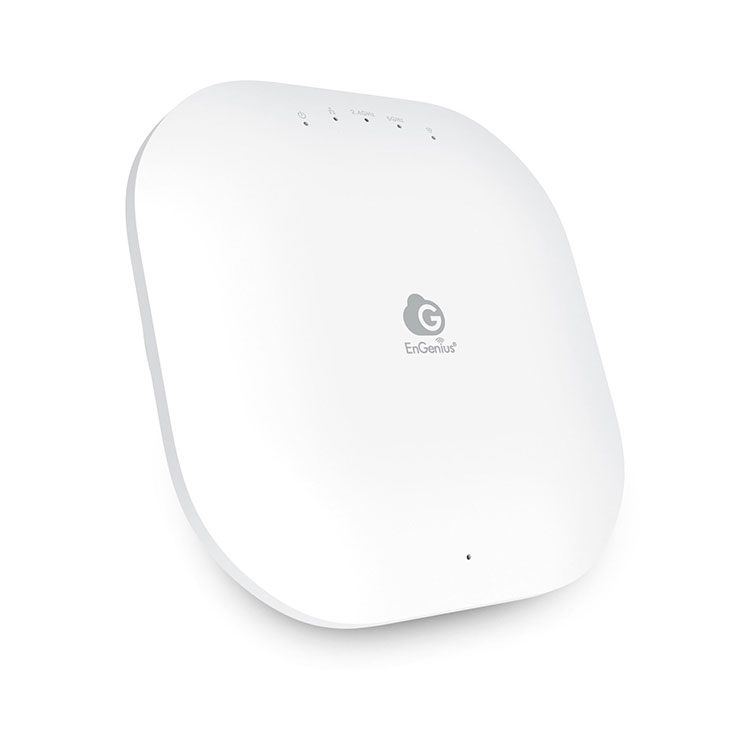

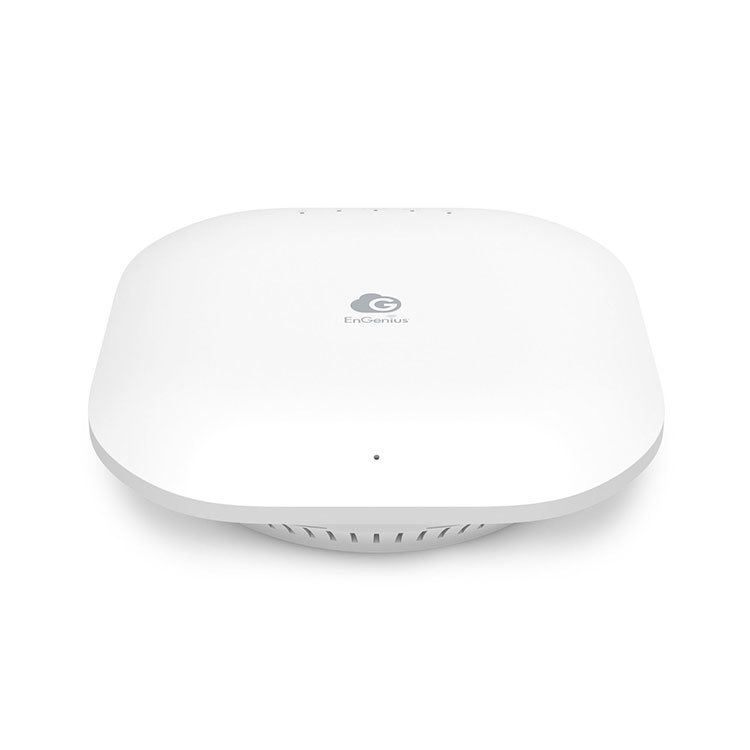

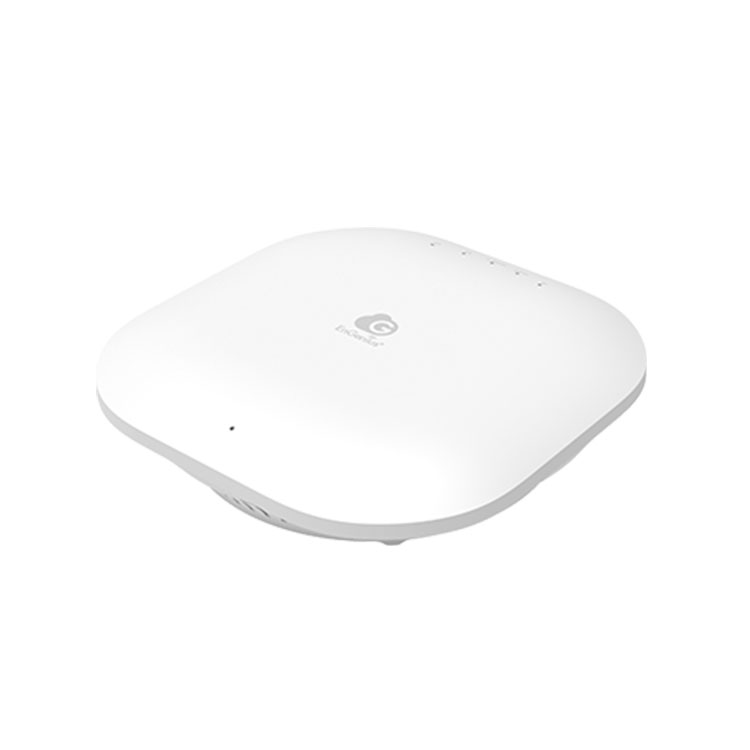

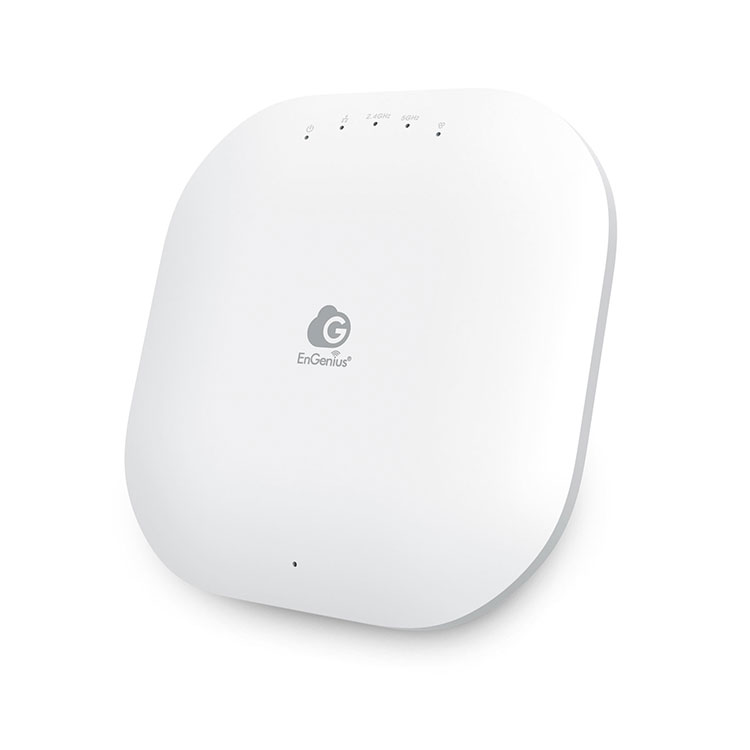

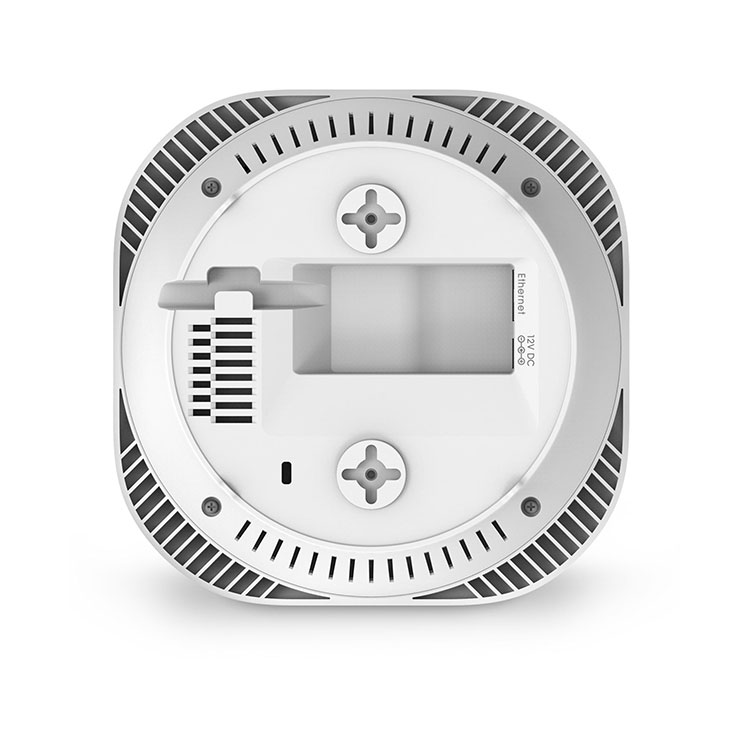

ECW120

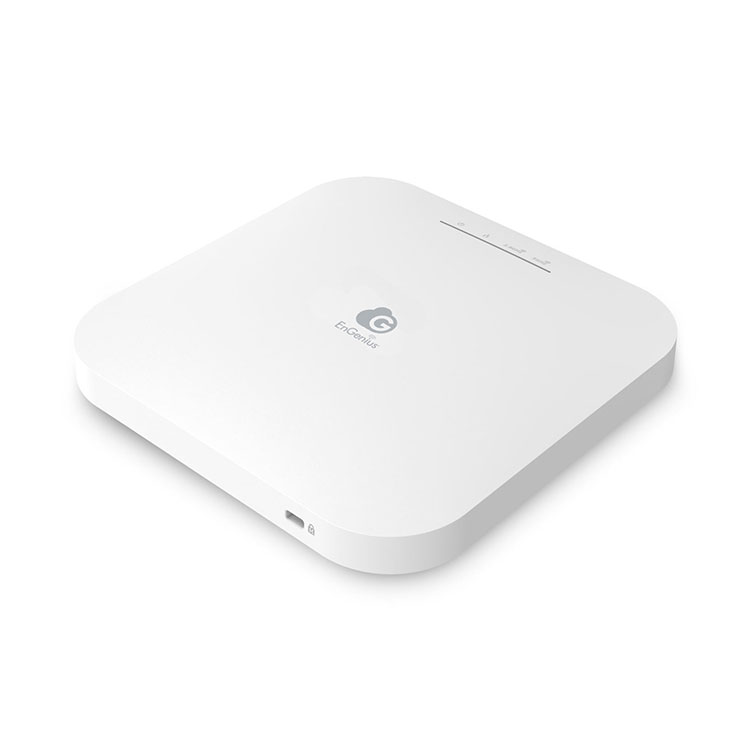

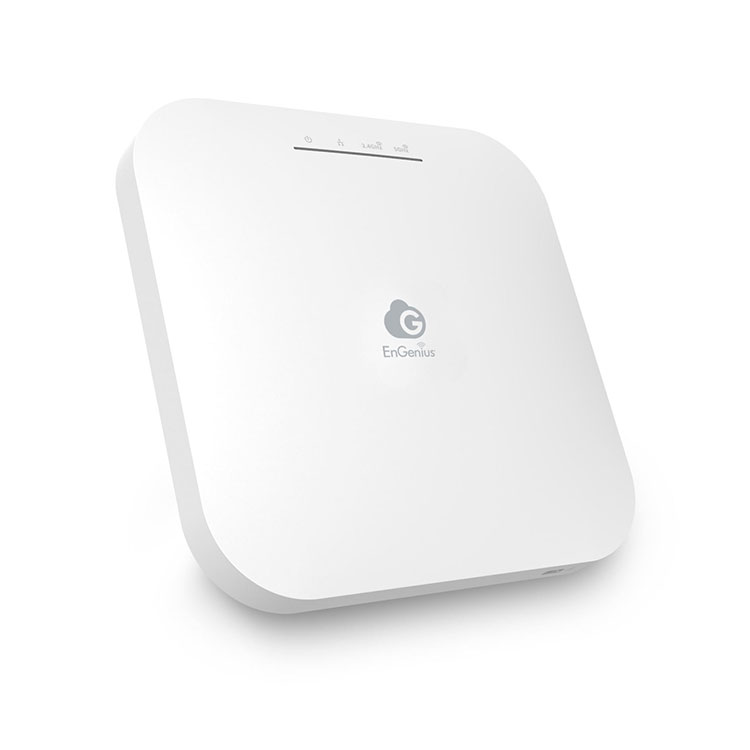

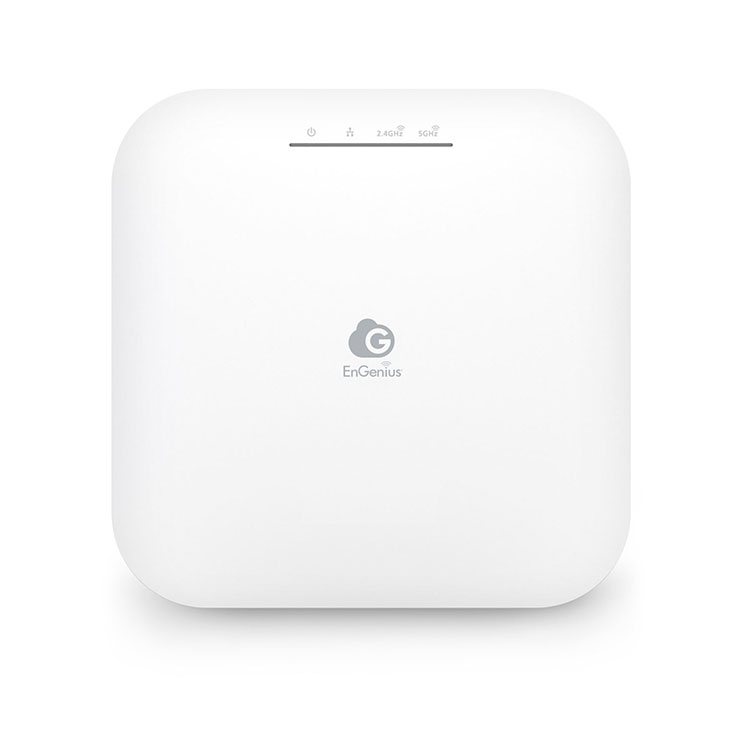

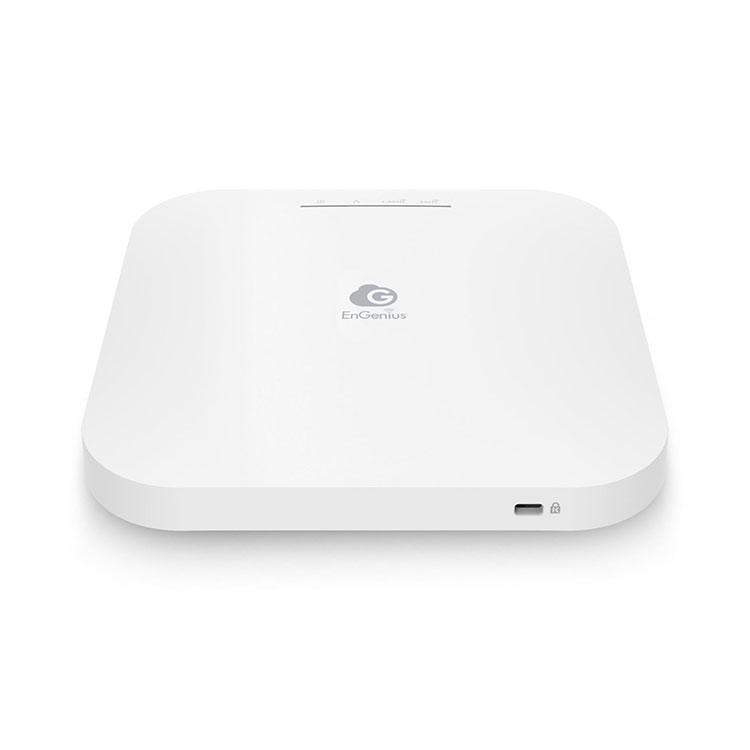

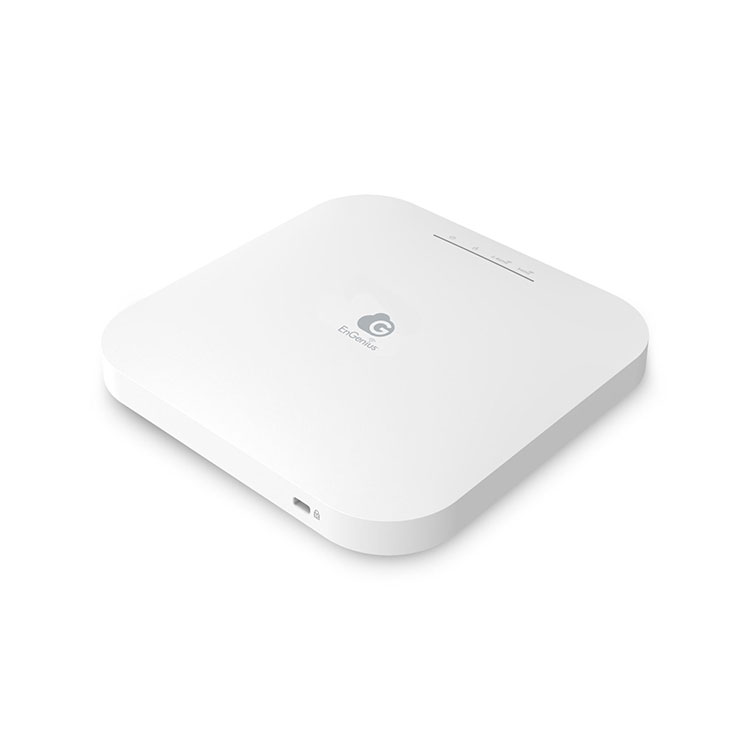

ECW220

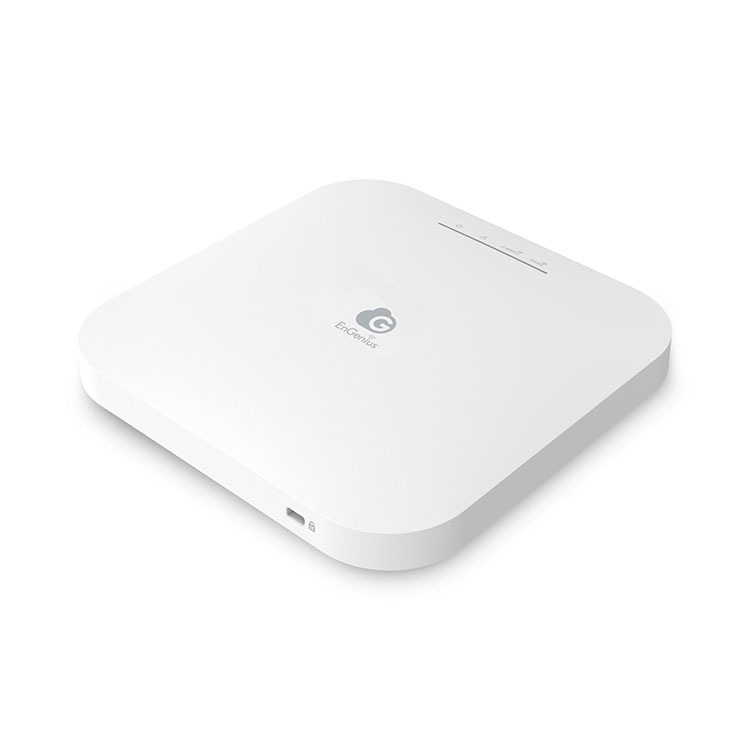

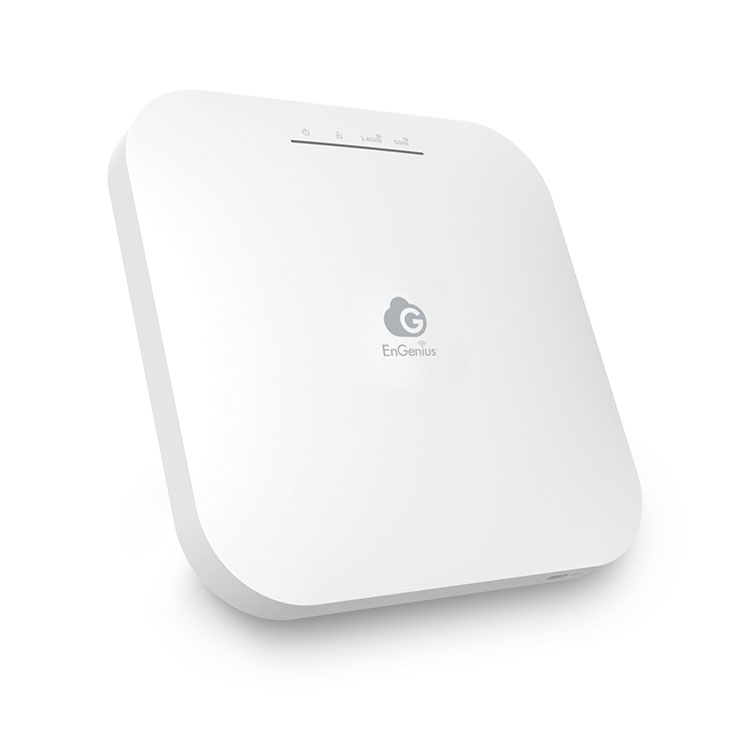

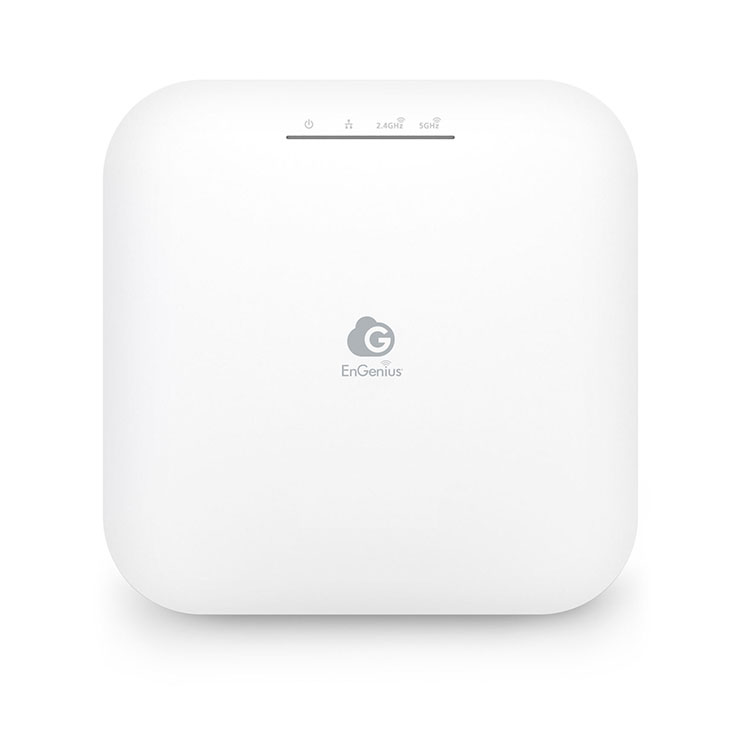

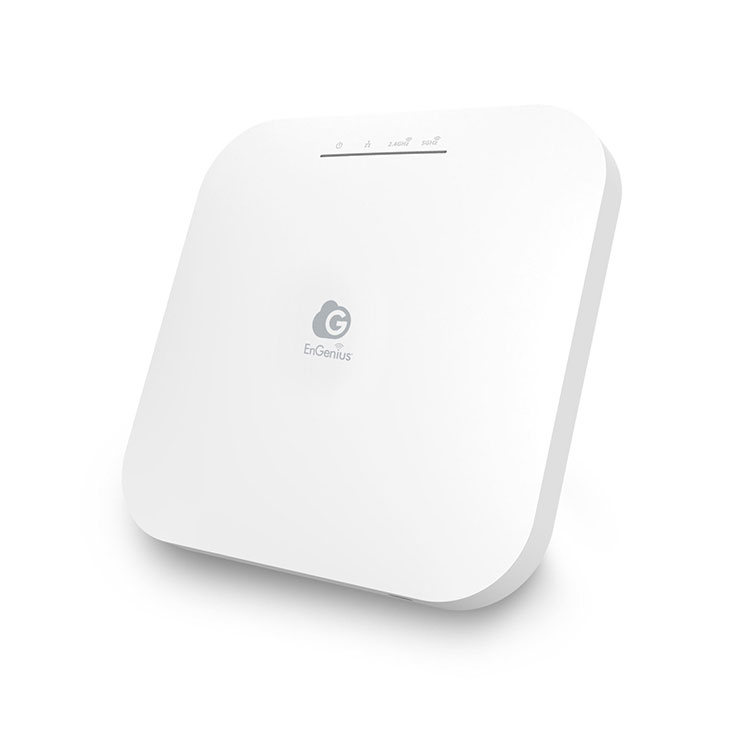

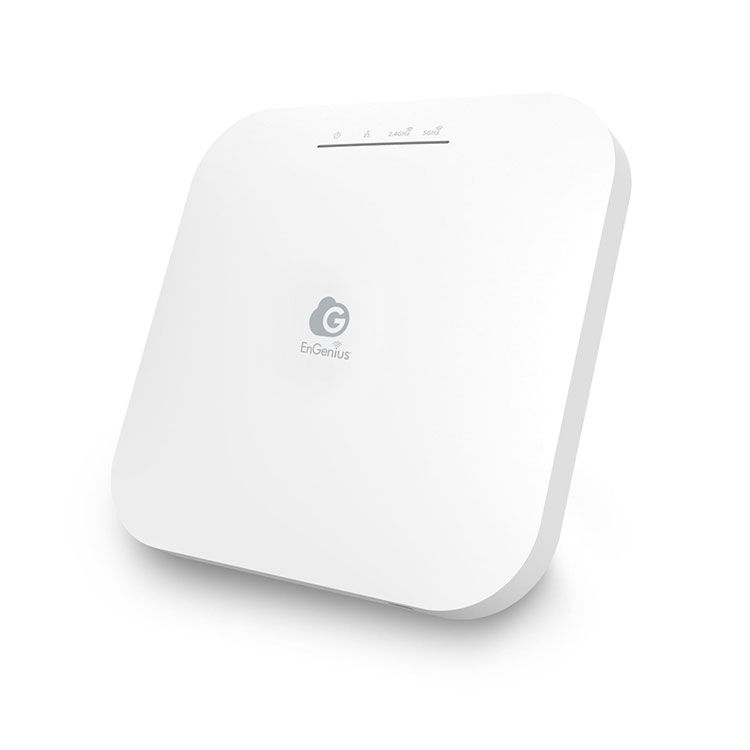

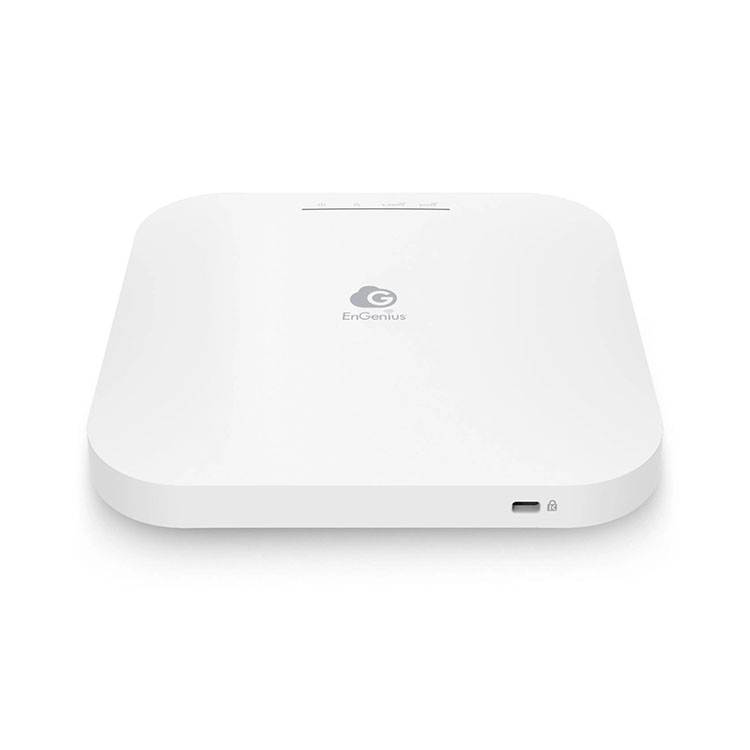

ECW230

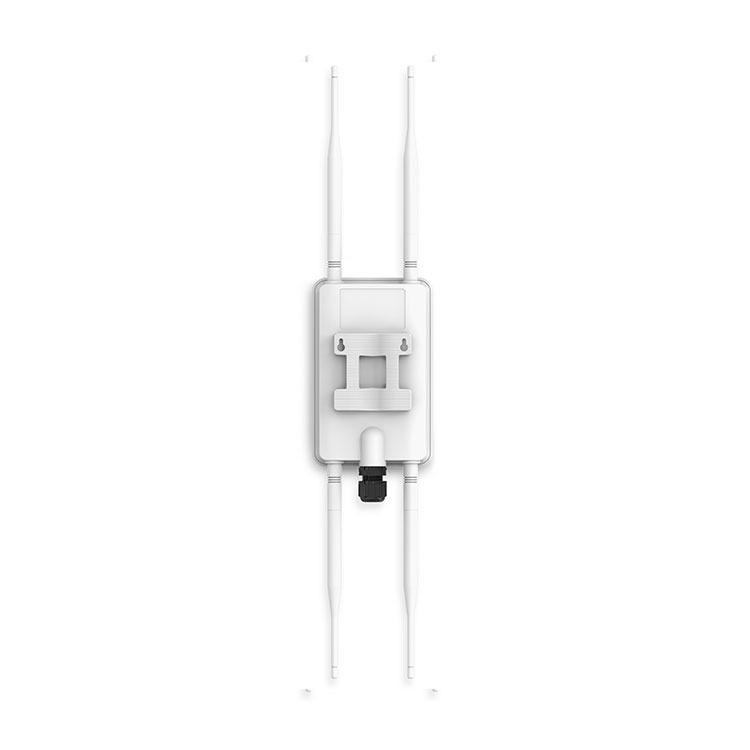

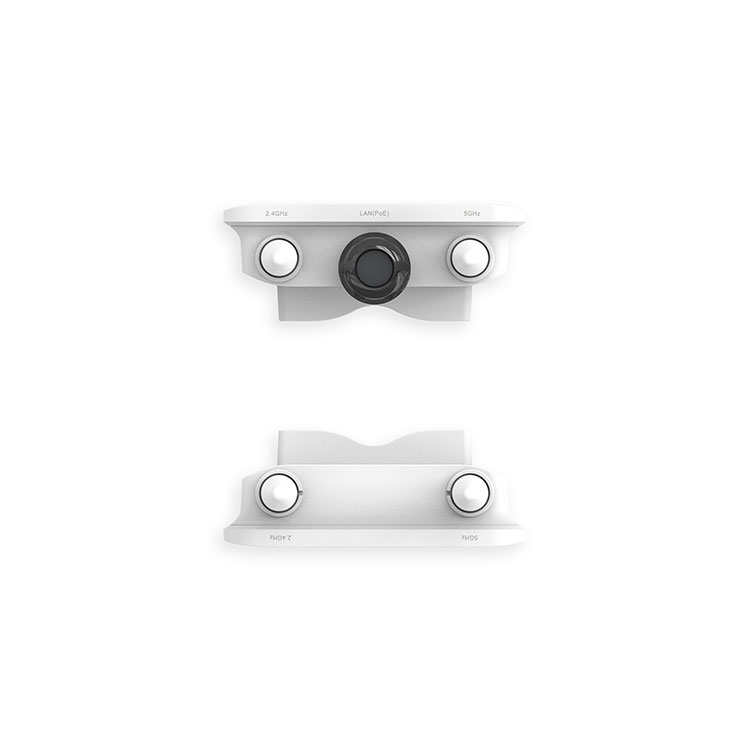

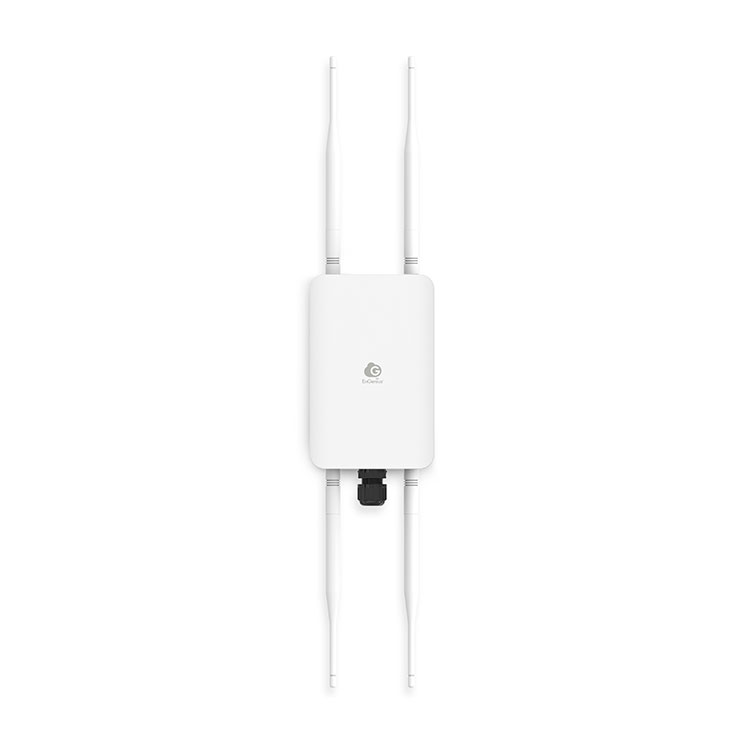

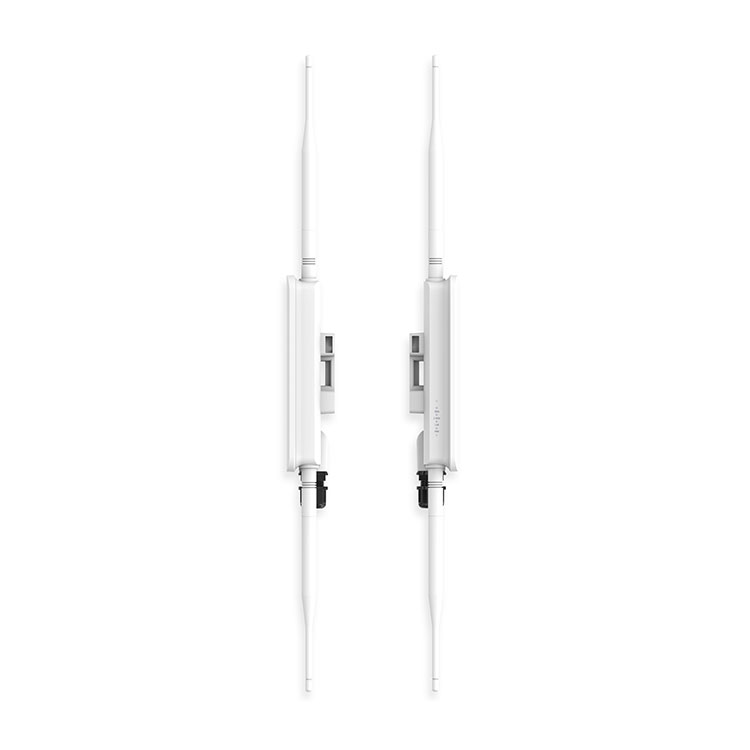

ECW160

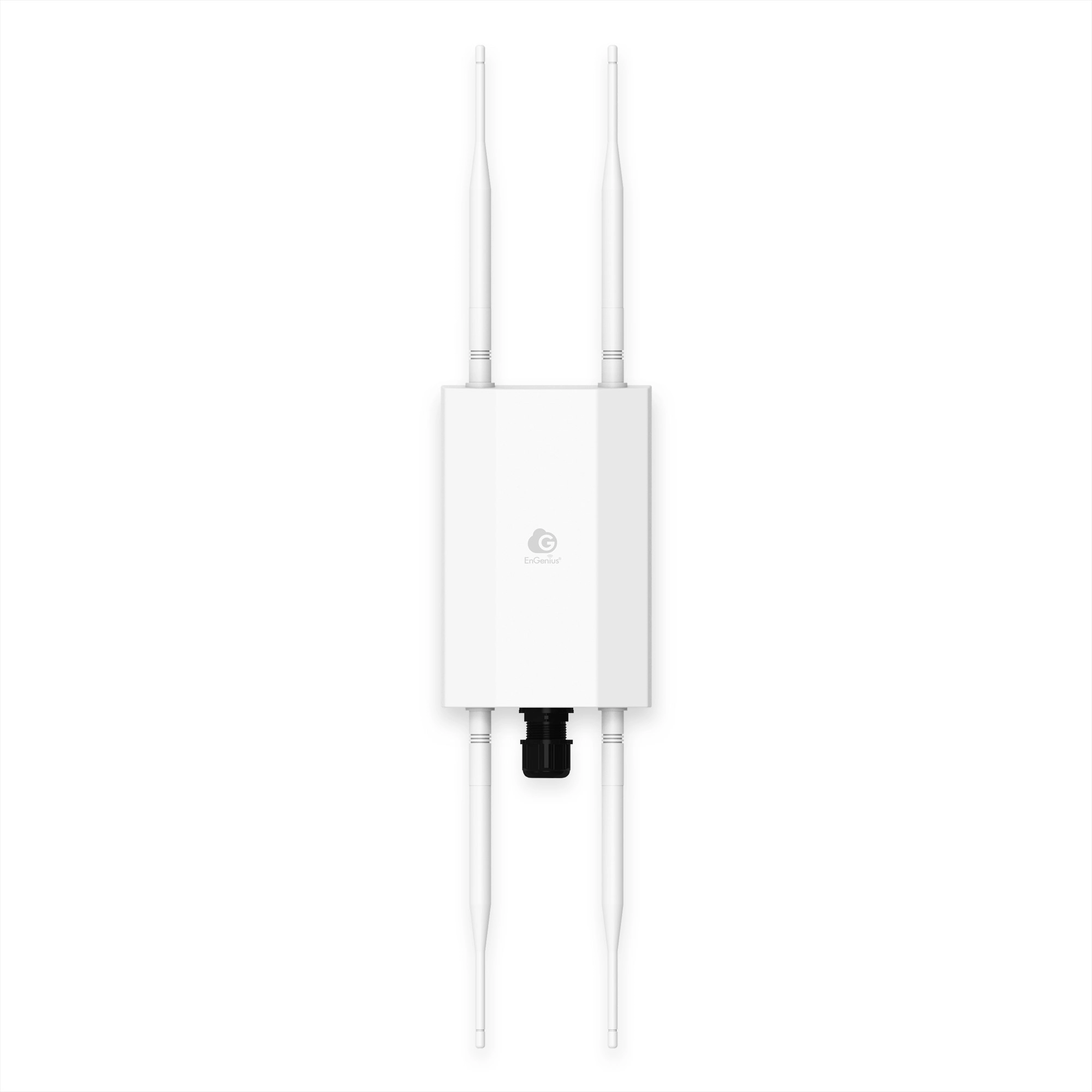

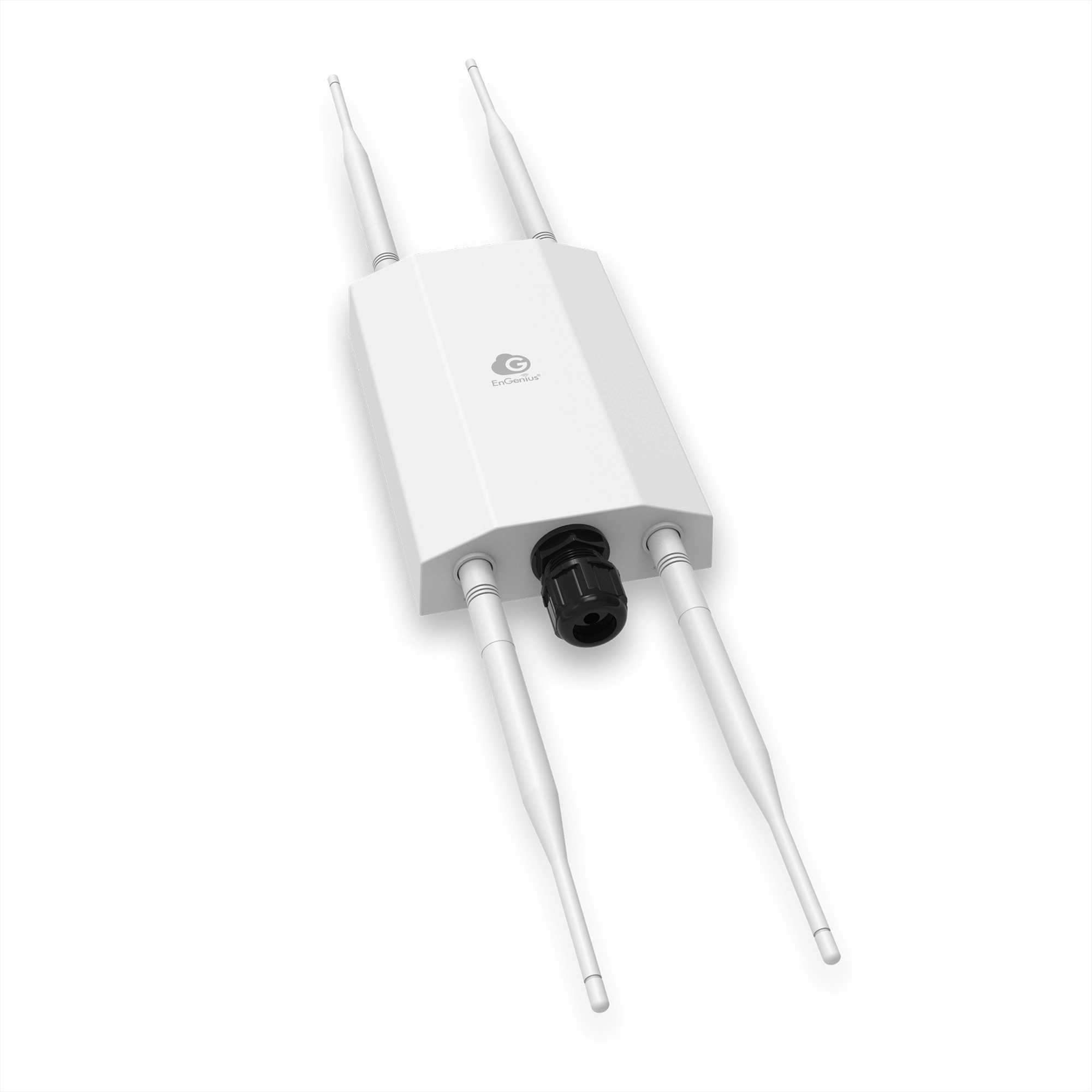

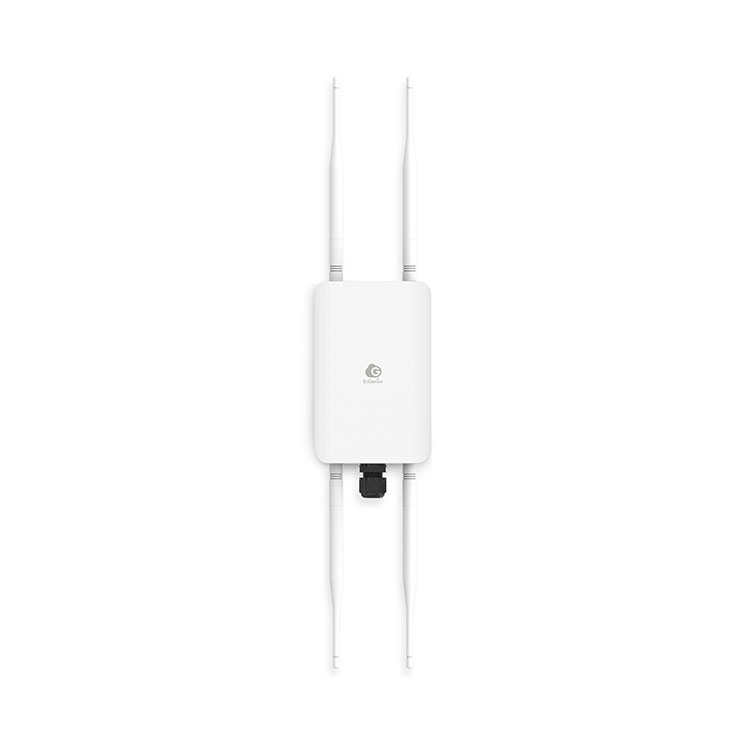

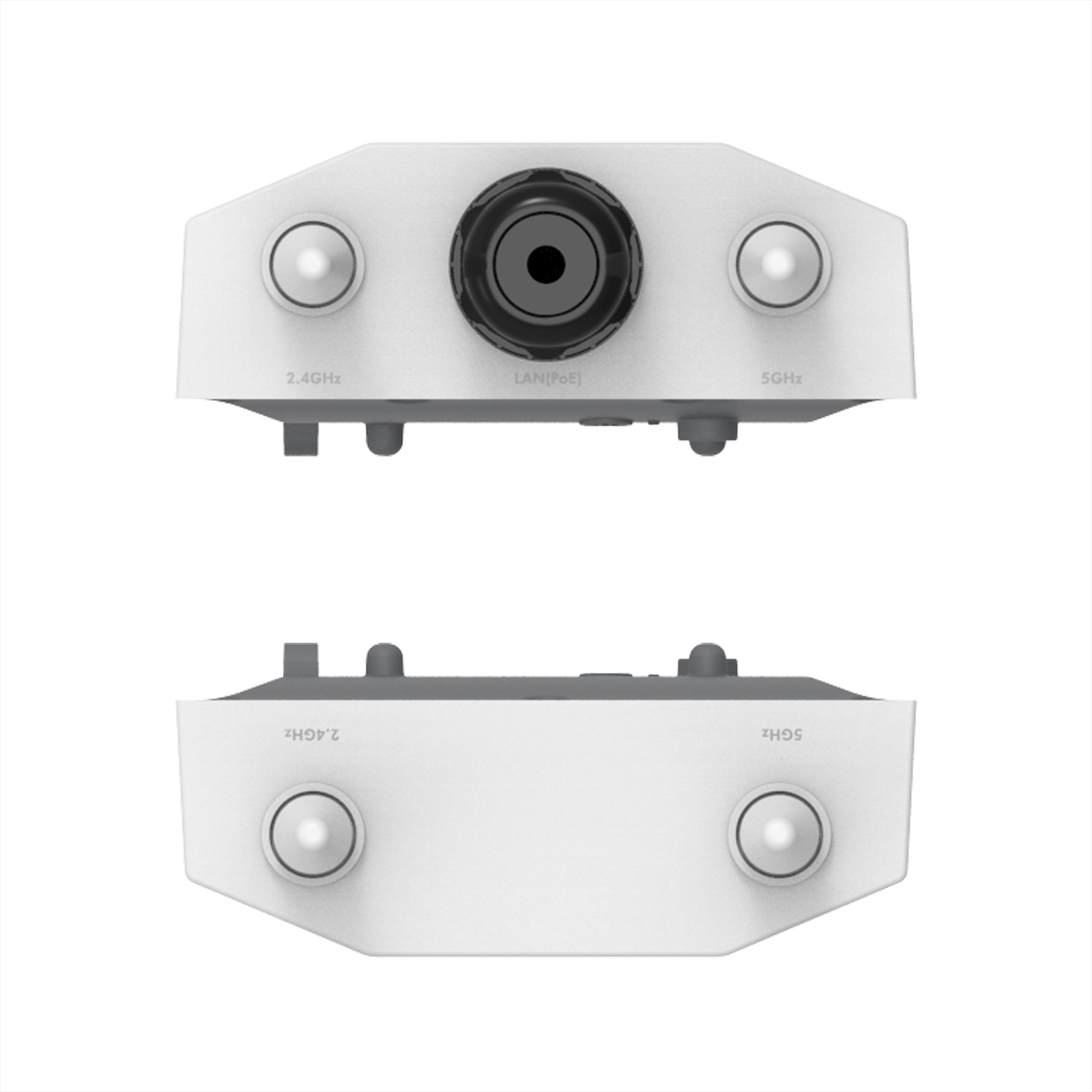

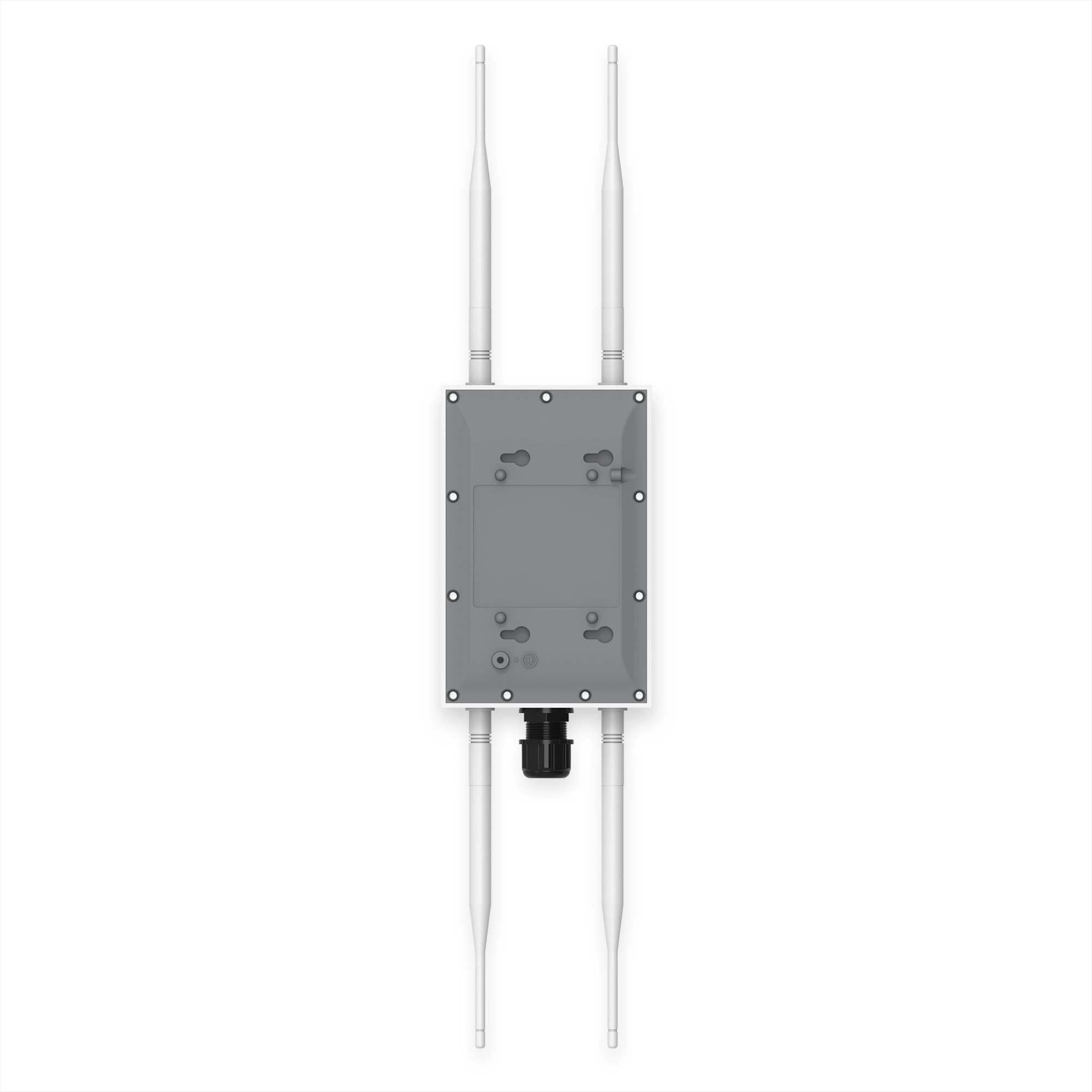

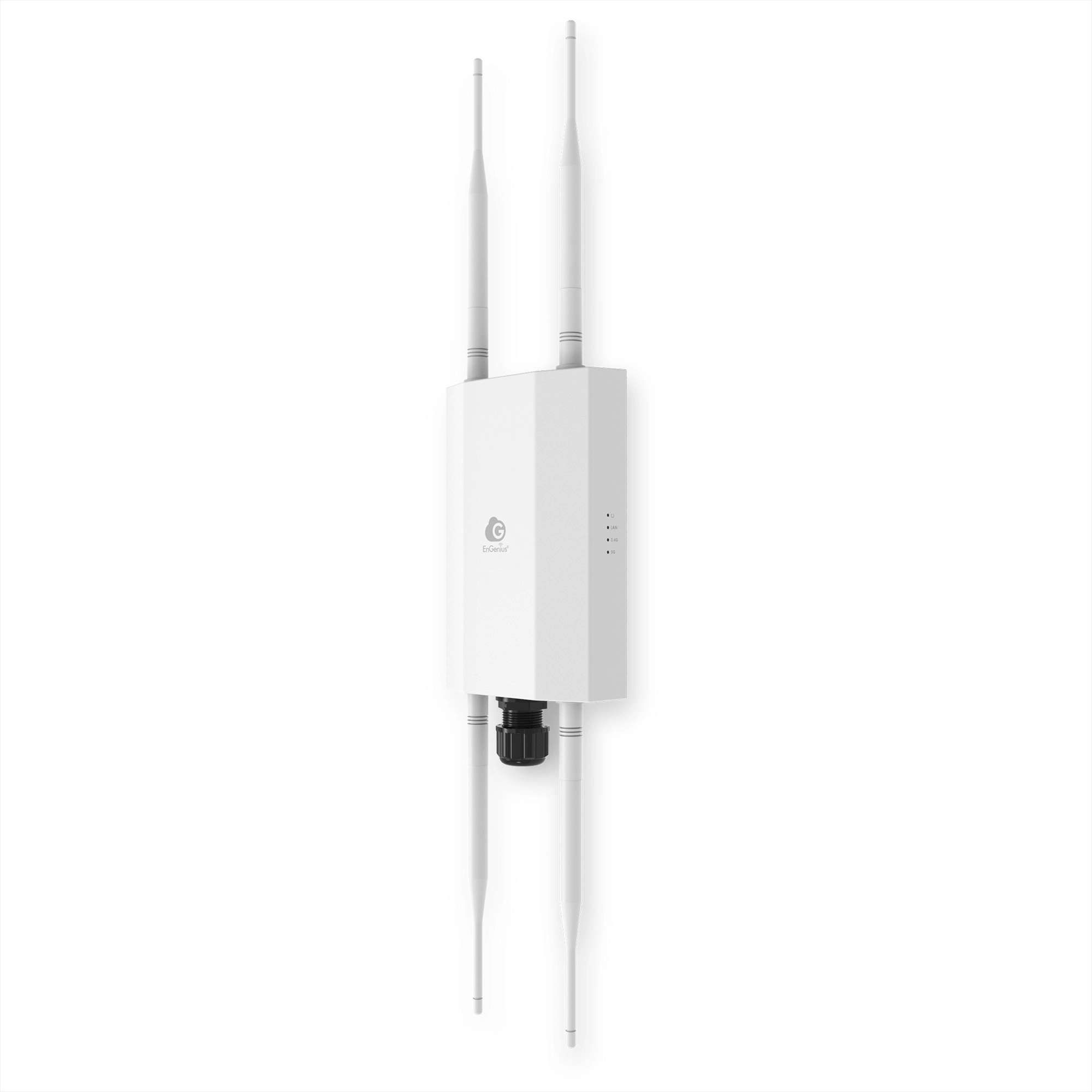

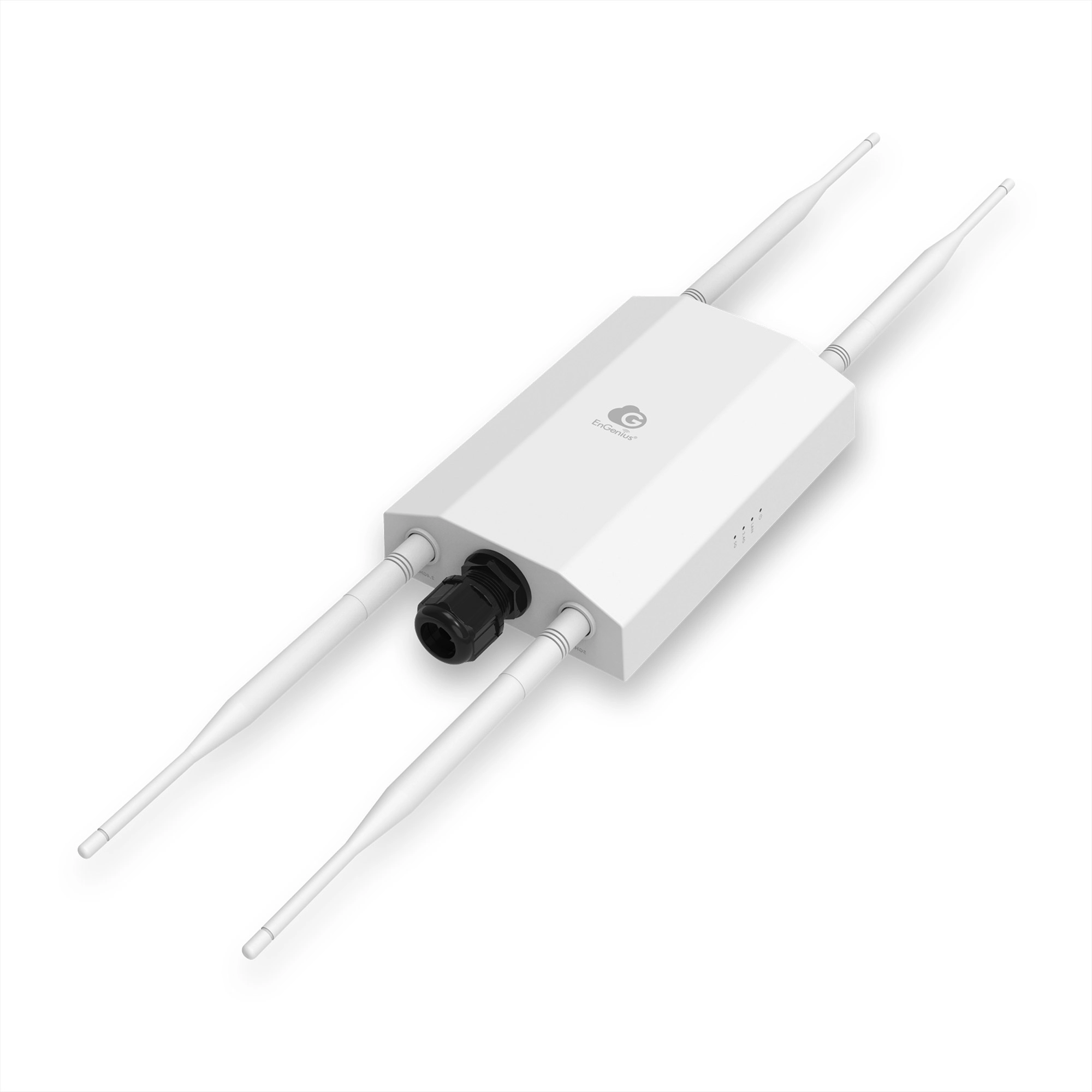

ECW260

Product Highlight

Model Name ECW120 ECW220 ECW230 ECW160 ECW260
Description V1 V1 V1 V1 V1
Radio Chain 2x2 2x2 4x4 2x2 2x2
Total Data Rate 1300 Mbps 1800 Mbps 3600 Mbps 1300 Mbps 1800 Mbps
WiFi Speed (2.4GHz) 400Mbps 574Mbps 1,148Mbps 400Mbps 600Mbps
WiFi Speed (5GHz) 867Mbps 1,200Mbps 2,400Mbps 867Mbps 1200Mbps
Maximum Output Power(2.4GHz) 23dBm 22dBm 23dBm 23dBm 23dBm
Maximum Output Power(5GHz) 23dBm 22dBm 23dBm 23dBm 25dBm
Antenna Type Internal Omni Internal Omni Internal Omni External Omni External Omni
Antenna Gain (dBi) @ 2.4GHz 5dBi 3dBi 5dBi 5dBi 5dBi
Antenna Gain (dBi) @ 5GHz 5dBi 3dBi 5dBi 5dBi 5dBi
Antenna connector type N/A N/A N/A SMA SMA
RF Radio Surge Protection N/A N/A N/A Yes Yes
PoE Input 802.3af 802.3af 802.3at 802.3af 802.3at
Maximum Power Comsuption 12W 12.5W 20.4W 12W 15.9W
Deployment Option Cloud-managed Cloud-managed Cloud-managed Cloud-managed Cloud-managed
Application Indoor Indoor Indoor Outdoor Outdoor
IP Rating N/A N/A N/A IP67 IP67
Ethernet Port & Link Rate 1 x Gigabit 1 x Gigabit 1 x Multi Gigabit 1 x Gigabit 1 x Multi Gigabit
Plenum Rated (UL-2043) N/A N/A N/A Yes Yes
Housing (Plastic) Yes Yes Yes Yes Yes
Housing (Metal) N/A Yes Yes N/A Yes
Wall Mount Yes Yes Yes Yes Yes
Ceiling Mount Yes Yes Yes N/A N/A
Pole Mount N/A N/A N/A Yes Yes

Cloud Managed ECW215 11ax 2×2:2 Wall Plate Access Point with built-in 2-port Gigabit switch and offers in-demand, high-speed in-room wired and wireless connectivity that is flexible and reliable. Deploy in hotel guest rooms, dorms, classrooms, and multi-tenant dwellings

  • Cloud Managed with AP & Mesh mode.
  • 802.11ax Wave 2 (Wi-Fi 6) technology.
  • Throughput speed of 1,200 Mbps (5 GHz) and 574 Mbps (2.5 GHz) .
  • Gigabit Ethernet PoE-in port and 12V DC Input for flexible power options.
  • 2 GE-port support 802.3af/at PoE-in.
  • Power VoIP Phones or other PoE devices with PoE out.
  • Quick-scan device register & configuration and remote monitoring & troubleshooting.
  • Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App.
  • Mesh Wireless Support simplifies setup, optimizes signals & self-heals.

The EnGenius Cloud Managed ECW336 6 GHz tri-band 4×4 WiFi 6E Access Point supports up to 8.4 Gbps using 2.4 GHz, 5 GHz, and the newly-released 6 GHz band. The seven super-wide 160 MHz channels greatly increase network capacity and reduce bandwidth congestion. The wide-open 6GHz spectrum is occupied only by efficient Wi-Fi 6 client devices, removing frustrations currently caused by overcrowding of legacy devices on multiple Wi-Fi networks. There are twice as many channels on the newly opened 6GHz band that do not overlap with each other greatly reducing network bottlenecks. The ECW336 also supports a 5 GbE PoE+ port for easy AP placement, WPA3 Enterprise security and “enhanced open” for stronger encryption and authentication.

  • • 4×4:4 MU-MIMO Wi-Fi 6 (802.11ax) compatible for top speeds.
  • • 8.4 Gbps tri-radio aggregate frame rate for gigabit Wi-Fi.
  • • 5 GbE PoE+ port to maximize the connection speed and AP placement.
  • • Tri-concurrent 802.11ax architecture backward compatible with all ac/a/b/g/n client devices.
  • • The 1200 MHz band that supports AR/VR, ultra-high HD, and other applications.
  • • The 6 GHz interference-free band allows ultra-fast speeds.
  • • Integrated enterprise security and guest access.
  • • Powerful built-in Qualcomm Quad-core CPU for superior performance and advanced 1024-QAM for faster packet transmission.
  • • OFDMA and MU-MIMO for fast, efficient transmissions between the AP and client devices and BSS coloring for increased spatial reuse.
  • • Access point diagnostic tools for real time channel utilization.

ECW270 Wi-Fi 6, 4×4, IP68, MU-MIMO Cloud Managed Dual-Band Outdoor Wireless Access Point reaches speeds of 2,400 Mbps on 5 GHz and 1,200 Mbps on 2.4 GHz band. This top-of-the-line cloud-managed AP features the latest in rugged weatherproofing and Wi-Fi 6 technology with guaranteed top-notch performance and reliability in the harshest environments.

  • • Dual concurrent 802.11ax & backward-compatible with 11ac/a/b/g/n client devices.
  • • Supports up to 2,400 Mbps in 5 GHz band & 1,200 Mbps in 2.4 GHz band.
  • • IP68-Rated weatherproof & dustproof housing withstands harsh environments.
  • • 1 x 2.5 Giga PoE++ compatible port realizes greater throughput and supports Power over Ethernet (802.3 at/bt) for flexible installation over 100 meters (328 feet).
  • • 1 x Gigabit Port.
  • • Four detachable 5 dbi high-gain 2.4GHz antennas.
  • • Four detachable 7 dbi high-gain 5GHz antennas.
  • • Quick-scan device register & configuration and remote monitoring & troubleshooting.
  • • Cloud manage an unlimited number of APs from anywhere with the EnGenius Cloud App.
  • • Mesh Wireless Support simplifies setup, optimizes signals & self-heals.
