mfusion – SD-WAN Orchestrator and NMS
RansNet mfusion orchestrates SD-WAN provisioning and configuration for all RansNet solutions, and doubles as an enterprise IT infrastructure Monitoring and Management system for 3rd-party devices and applications, all through a secure and intuitive single pane of glass.

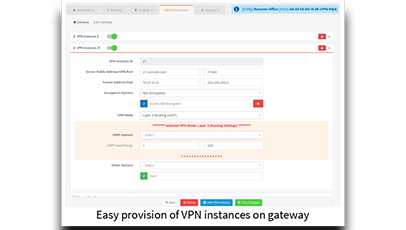

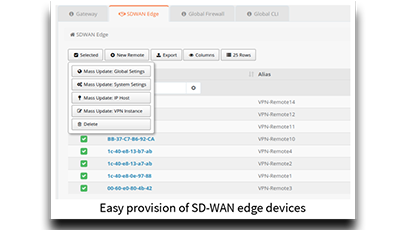

- Automated SD-WAN Provisioning
- Policy-based SD-WAN configuration
- Monitor 3rd-party devices
- Template-based Monitoring
- Automated Alerting and Reporting

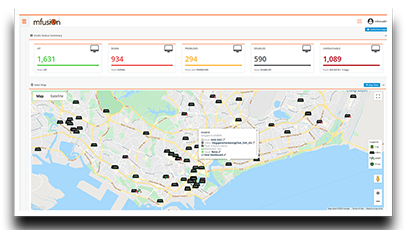

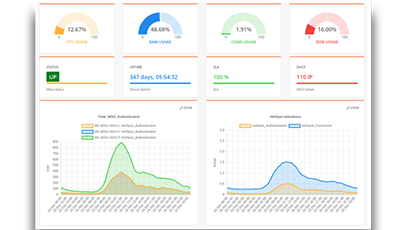

- Customizable Dashboard
- OpenAPI for 3rd-party platform integration
- On-premise (hardware/VM) or cloud (VM) deployment
RansNet SD-WAN Orchestrator and NMS
Hardware Specifications
| Model | NMS-2000 | NMS-5000 |
|---|---|---|
| Processor | Multi-core | Dual CPU |
| Memory (RAM) | 32GB | 64GB |
| Storage | 1TB SSD | 2TB SSD |
| Gigabit Interface | 8x GbE | 8x GbE |
| Optional 10G Interface (fiber or copper) | ✓ | ✓ |
| Dimensions (WxHxD) | 430 x 44 x 450 | 562 x 88 x 430 |
| Weight | 6kg | 13kg |
| Design form factor | 1U rack mountable | 2U rack mountable |
| Power Consumption | < 230W | < 420W |
| Redundant Power Supply | Optional | Included |
| Operating temperature | 0°C to 40°C | 0°C to 40°C |
Network & Security Features
| Model | NMS-2000 | NMS-5000 |
|---|---|---|
| Stateful Firewall & DHCP Server | ✓ | ✓ |
| Static, Dynamic Routing (OSPF/BGP) | ✓ | ✓ |
| NAT, PAT, SNAT, DNAT, Port forwarding | ✓ | ✓ |
| IPSec, GRE, SSLVPN, L2TPv3 | ✓ | ✓ |
| IPv4 and IPv6 Capable | ✓ | ✓ |
| VLAN, Trunking (802.1q), Bonding | ✓ | ✓ |
| HA w/ Stateful Failover | ✓ | ✓ |
| Bandwidth Control (Static/Dynamic) | ✓ | ✓ |
| Time/Data/Session/Device Control | ✓ | ✓ |
| Whitelist by URL/Domain/IP/MAC | ✓ | ✓ |
| Local Authentication (RADIUS) | ✓ | ✓ |
| PMS/API/payment gateway integration | ✓ | ✓ |
| User log and data Analytics | ✓ | ✓ |
| Wireless AP management (MACC) | ✓ | ✓ |
| mfusion monitoring & management | ✓ | ✓ |
| Online Firmware Patching and Upgrade | ✓ | ✓ |
