RansNet SD-WAN Gateways (CMG Series)

The Cloud Managed Gateways (CMG) are the head-end SD-WAN gateways that work with central orchestrator (mfusion) to automate provisioning of VPN tunnels and routing with all remote branch routers, distribute VPN tunnel profiles and keys, and auto steer traffic based on application and link performances. They are often bundled as enterprise grade routers by many Internet Service Providers (ISP) to provide high-speed broadband Internet access to support large amount of users and connections.
  • Scalable SD-WAN gateway to support massive VPN tunnels
  • Multi-WAN link balancer for link aggregation and redundancy
  • Stateful firewall integrable to RansNet cloud SASE subscription
  • Multi-protocol VPN interoperable with 3rd-party vendors
  • Central SD-WAN provisioning and orchestration by mfusion
Inquire now
Datasheet

Applicable to all SD-Branch Models: UA-800 | UA-520 | HSA-520

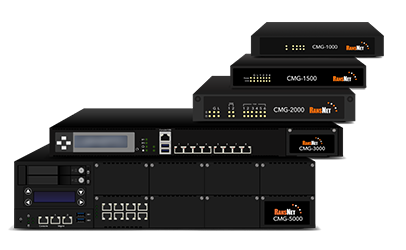

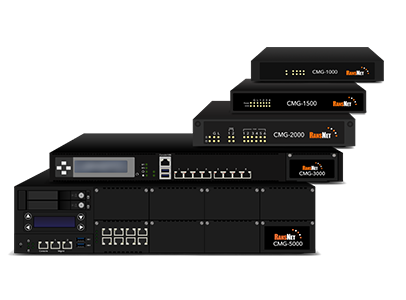

RansNet SD-WAN Gateways (CMG Series) are high performance network appliances designed to empower enterprise business connectivity. Combining RansNet OS (hardened Linux kernel) and Intel processors, CMG produces extremely high performance, manageability, reliability and security, all packed in a purpose-built industrial grade computing platform. Various models are available with different performance to handle different no. of concurrent devices, catered for different customers environments.
zero-deployment

Zero-touch Deployment

Connects to any WAN links via Ethernet/RJ45 connections. FiberONT/MPLS/PPPoE/Metro-E Remote configuration provisioning and editing through mfusion.
firewall

Firewall & VPN

Secures network with stateful firewall inspection. Supports PAT, port forwarding, 1-2-1 NAT, etc. Supports multiple VPN protocols, such as IPSec, SSL, GRE, L2TPv3.
maximum-uptime

High Availability

Supports redundant uplink & downlink connections via Ethernet bridging, link aggregation (bonding/LACP) and VRRP for high availability (HA).
OSPF

Versatile Routing

Supports Static & Dynamic Routing (OSPF & BGP), policy-based routing based on IP/Network/Applications.
multi-vlan

Multi-VLAN/Networks

Supports up to 500 VLANs and able to map each VLAN to different SSID or different zones/locations for differentiated user experiences and access controls
bandwidth

Bandwidth Control

Support bandwidth control (QoS) based on physical interfaces, VLANs, networks, IP, applications (protocol and port nos), and user profiles.

ip

IPv4 & IPv6

Supports IPv4 & IPv6 internet connection. IPv6 to IPv4 address translation
speed

Higher Performance

Supports up to 10Gbps router throughput and 2 million user sessions (model dependant)
dns-dhcp

DNS & DHCP

Built-in DNS and DHCP server.  Able to manage more than 100K IP addresses and up to 25K concurrent devices.
Model CMG-1500 (Business Connectivity) CMG-2000 (Enterprise Connectivity) CMG-3000 (Enterprise Connectivity) CMG-5000 (Carrier Connectivity)
ProcessorMulti-coreMulti-coreMulti-core Multi-core (Dual CPU)
Memory (RAM)4GB4GB8GB32GB
Router throughput1.5Gbps10Gbps10Gbps10Gbps
Firewall Throughput 1.5Gbps2Gbps5Gbps 10Gbps
Max Concurrent Connections300,000500,0001,000,0002,000,000
Recommended Concurrent Users2005001000 3000
Multi-WAN link balancing (WAN bonding)Up to 3 WAN linksUp to 7 WAN linksUp to 15 WAN linksUp to 28 WAN links
LAN / WAN Interface4x GbE6x GbE 8x GbE 8x GbE
Optional 2-Port 10G (fiber/copper)–✓✓✓
Optional 8/4-Port GE (fiber/copper)––✓✓
Dimensions (WxHxD)231.9 x 44 x 152 231 x 44 x 197430 x 44 x 450430 x 88 x 550
Weight1.64kg2.5kg6kg13kg
Design form factorDesktopDesktop1U rack mountable2U rack mountable
Power Consumption< 18W<60W< 230W< 420W
Redundant Power Supply––OptionalIncluded
Operating temperature0°C to 50°C0°C to 50°C0°C to 50°C0°C to 50°C
CertificationsFCC, CE, ROHSFCC, CE, ROHSFCC, CE, ROHSFCC, CE, ROHS

CMG Series Datasheet
