LVW02-46T
Pop-Out Video Wall Mount
DESCRIPTION

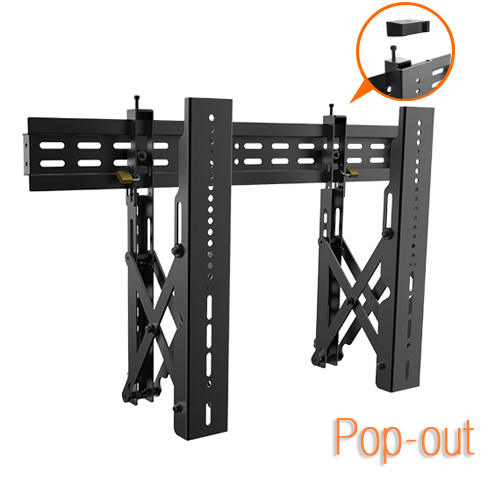

LVW02-46T is a professional video wall mount designed to offer the ultimate in versatility and universal compatibility with load capacity of 45kg/99lbs and max. VESA 600×400 hole pattern. This mount extends out 202mm from wall by a press with pop-out function and places 60mm to wall when retracted with quick lock mechanism. Lateral shift brackets and built-in screen level adjustment for seamless display alignment and level. It is the perfect solution for public and commercial displays with anti-theft design (require for a padlock). To customize multiple screen display solution, please use with connect plates.
Features:
- Pop-Out Extension: provides quick access for installation and maintenance
- Lateral Shift Brackets: enable width adjustment and fast alignment
- Leveling adjustments: allow TV to be perfectly positioned after hanging
- Connecting wall plates make it easy to create longer menu boards
- Anti-Theft Locking Hole: for additional security preventing any unwanted removal (extra padlock required)
- Pop-Out Lock System: ensures safety by reducing the possibility of accidental pop-outs
Specifications
| Product Category: Video Wall Stand |
| Rank: Standard |
| Material: Steel |
| Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,Bracket Arm THK=2.5mm cold-rolled sheet |
| Surface Finish: Powder Coating |
| Color: Fine Texture Black |
| Color (Accessory): Fine Texture Black |
| Dimensions: 760x465x215mm(29.9"x18.3"x8.5") |
| Column Size(Main Column/Extension Column): 136x80x2mm(5.4"x3.1"x0.079") |
| Fit Screen Size: 37"-70" |
| VESA Compatible: 200x200,400x200,300x300,400x400,600x400 |
| Max. Mounting Hole: 600x400 |
| Weight Capacity(Per Screen): 45kg(99lbs) |
| Screen Qty: 1 |
| Strength Tested: 4 Times Approved |
| Profile: 68~215mm(2.7"~8.5") |
| Screen Level: +3°~-3° |
| Installation: Solid Wall |
| Cable Management: No |
| Anti-theft: Yes |
| Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag |
| Instruction Manual Included: Yes |
| Screw Kit for Samsung TV: No |
Package Information
| Package Type: Brown Box |
| Unit Packing Size: 98x11.2x10.2CM |
| Volume: 0.01 |
| Unit GW/NW: 7.45KG/6.670KG |
| Carton Size: 100x33x13.5CM |
| Q'ty/Carton: 3 |
| GW/NW: 23KG/20KG |
| Q'ty/20'GP: 1815 |
| Q'ty/40'GP: 3765 |
| Q'ty/40'HP: 4302 |
