Affordable Heavy-Duty Tilt TV Wall Mount

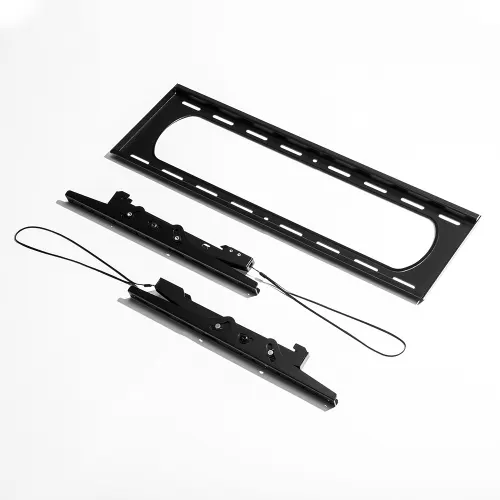

To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the LP73-46T Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 80kg/176lbs to firmly hold 37’’~80’’ TVs. Ample space in the center is perfect for installing the socket outlet and concealing all the messy cables. +10°~-10° toolless tilting mechanism provides the perfect viewing angle. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install. Choose LP73-46T to grasp more market share quickly!


  • Toolless Tilt: allows for effortless positioning
  • Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
  • Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
  • Open Architecture: provides increased ventilation and easier access to wires
  • Heavy-Duty Steel Construction: provides extra strength and durability


Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.8mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet(Bracket Arm THK=0.071" cold-rolled sheet, Wall Plate THK=0.071" cold-rolled sheet)
Surface Finish: Powder Coating:
Color: Fine Texture Black
Dimensions: 60x685x425mm(2.4"x27"x16.7")
Fit Screen Size: 37"-80"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,
Max. Mounting Hole: 645x402mm
Weight Capacity: 80kg(176lbs)
Strength Tested: 4 Times Approved
Profile: 60mm(2.4")
Tilt Range: +10°~-10°
Screen Freely Tilting: Yes
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: Yes
Anti-theft: No
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Instruction Manual Included: Yes
Power Plug Included: No
Magnetic: No
Lithium Battery: No
Lithium Dry Battery: No
Samsung Screw Kit: No
Solid Wood Included: No
Silk Screen: Can be silkscreen printed
By Function: Tiltable
Application Control: No

Package Information

Package: Type: Gift Box
Unit Packing Size: 71.2x23.2x4CM
Volume: 0.01
Unit GW/NW: 3.46KG/3.090KG
Carton Size: 73x25x26.5CM
Q'ty/Carton: 6
GW/NW: 21KG/19KG
Q'ty/20'GP: 3348
Q'ty/40'GP: 6942
Q'ty/40'HP: 7938
