To address the gap in the niche market of heavy-duty large-sized TV wall mounts, the LP73-46F Affordable Heavy-Duty TV Wall Mount is a reasonable solution. A stiffener structure levels the weight capacity up to 80kg/176lbs to firmly hold 37’’~80’’ TVs. Ample space in the center is perfect for installing the socket outlet and concealing all the messy cables. A quick-release spring lock allows TV removal quick and easy and only takes seconds to install. Choose LP73-46F to grasp more market share quickly!


  • Heavy-Duty Steel Construction: provides extra strength and durability
  • Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
  • Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
  • Open Architecture: provides increased ventilation and easier access to wires


Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.8mm cold-rolled sheet,Wall Plate THK=1.8mm cold-rolled sheet (Bracket Arm THK=0.071" cold-rolled sheet,Wall Plate THK=0.071" cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 30x685x425mm (1.2"x27"x16.7")
Fit Screen Size: 37"-80"
Fit Curved TV: Yes
Mounting Hole Pattern: VESA & Universal
VESA Compatible: 50x50,75x75,100x100,100x150,150x100,100x200,200x100,150x150,200x200,200x300,300x200,
Max. Mounting Hole: 654x402mm
Weight Capacity: 80kg (176lbs)

Package Information

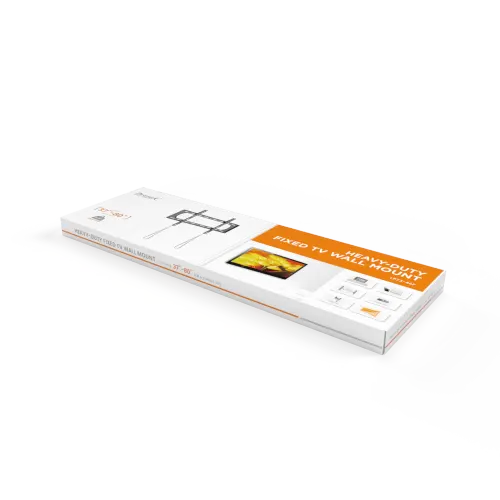

Package: Type: Gift Box
Unit Packing Size: 71.2x23.2x4CM
Volume: 0.01
Unit GW/NW: 2.66KG/2.290KG
Carton Size: 73x25x26.5CM
Q'ty/Carton: 6
GW/NW: 17KG/14KG
Q'ty/20'GP: 3348
Q'ty/40'GP: 6942
Q'ty/40'HP: 7938
