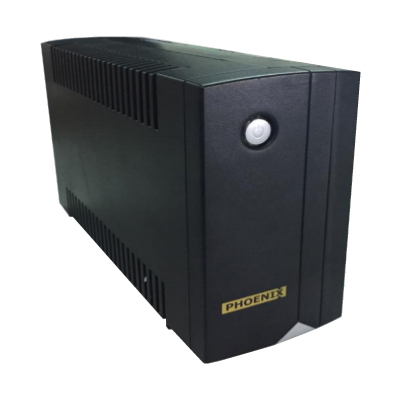

Model : UA650

Capacity : 650VA/360W

Input

Voltage : 220-240V

Voltage Range : 140-300Vac

Frequency : 50/60Hz (Auto-sensing)

Output

Voltage (Battery) : 220-240V

Frequency (Battery) : 50/60Hz±1%

Waveform (Battery) : Simulated Sine Wave

Transfer Time : 4ms Typical

Outlet Type : 4 NEMA 5-15R

Protection : Overload, Short Circuit, Over Discharge and Over Charge

Battery

Typical Back-up Time : 5-15 minutes

Sealed Lead-acid Battery : 12V 5AH * 1

Typical Recharge Time : 6 hours

Indicators

Display : LED default

Alarm : Battery Mode, Low Battery, Overload, Fault, etc.

Management

Auto Recharge : Yes

Auto Restart : Yes

Physical

Dimensions (WxHxD) (mm) : 84 x 159 x 252

Netweight (kg) : 3.8

Environment

Temperature and humidity : 0° to +40°C, 0 to 90% Relative Humidity (Non-condensing)

Noise Level : Less than 40dB

Dimension:

UNIT: (W x H x D)mm 84 x 159 x 252

UNIT: 3.8 kgs
