Brands: Fujitsu Model: fi-7240
The fi-7240 provides high quality technology for reliable scanning and enhanced image processing functionalities to significantly empower business workflows. The device scans A4 portrait documents at 40 ppm/80 ipm (200/300 dpi), loads up to 80 sheets at a time with scanning capacity up to as many as 6,000 sheets a day. It ensures utmost efficiency with amazing scanning performance.
|Scanner Type||ADF (Automatic Document Feeder) / Flatbed, Duplex|
|Scanning Speed (A4 Portrait)
|ADF||Simplex: 40 ppm (200/300 dpi)
Duplex: 80 ipm (200/300 dpi)
|Flatbed||1.7 seconds (200 dpi)|
|Image Sensor Type||Color CCD x 3 (front x 1, back x 1, Flatbed x 1)|
|Light Source||White LED Array x 3 (front x 1, back x 1, Flatbed x 1)|
|Optical Resolution||600 dpi|
(Color / Grayscale / Monochrome)
|50 to 600 dpi (adjustable by 1 dpi increments),
1,200 dpi (driver)
|Output Format||Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit|
|Background Colors||ADF: White / Black (selectable)
Flatbed: White (or optional black)
|Document Size||Maximum||216 x 355.6 mm (8.5 x 14 in.)|
|Minimum||50.8 x 54 mm (2 x 2.1 in.)|
|Long paper scanning||5,588 mm (220 in.)|
|Paper Weight (Thickness)||Paper||27 to 413 g/m² (7.2 to 110 lb)*10|
|Plastic Card||1.4 mm (0.055 in.) or less (ADF)*11|
|ADF Capacity||80 Sheets (A4: 80 g/m² or Letter 20 lb)|
|Expected Daily Volume||6,000 Sheets|
|Multifeed Detection||Overlap detection (Ultrasonic sensor), Length detection|
|Paper Protection||Lag detection|
|Interface||USB 2.0 / USB 1.1|
|Power requirements||AC 100 to 240 V ±10%|
|Power Consumption||Operating mode||39 W or less|
|Sleep mode||1.8 W or less|
|Auto Standby (Off) mode||0.35 W or less|
|Operating Environment||Temperature||5 to 35 °C (41 to 95 °F)|
|Relative Humidity||20 to 80% (non-condensing)|
|Environmental compliance||ENERGY STAR®, RoHS|
|Dimensions (W x D x H)||300 x 577 x 234 mm (11.8 x 22.7 x 9.2 in.)|
|Weight||8.8 kg (19.4 lb)|
|Supported Operating System||Windows® 11, Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2022, Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008, Linux (Ubuntu)|
|Included Software / Drivers||PaperStream IP Driver (TWAIN/TWAIN x64/ISIS), WIA Driver, Image Scanner Driver for Linux (SANE)*, PaperStream Capture, PaperStream ClickScan, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™, Scanner Central Admin|
|Image Processing Functions||Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Cropping, Static threshold|
|Included Items||ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM|
Reliable scanning for a seamless workflow
The fi-7240 provides stable paper feeding mechanisms, and ensures speedy and high quality scanning without relying on PC performance.
Prevent multi-feed errors with reliable feeding functions

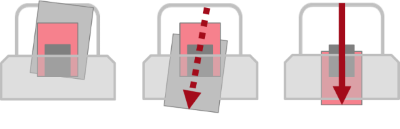

With brake rollers functioning as the fundamental mechanism to separate each sheet of paper for clean feeding, the scanner’s high quality technologies provide reliable paper feeding. The Skew Reducer also helps improve feeding performance and prevents re-scanning that can result from document edges getting cut off. Even if papers jam, the Paper Protection function keeps precious documents safe by detecting anomalies in sound and monitoring paper feed distance so that users can comfortably scan their important business documents.
Independent separator rollers ensure that a document that is skewed will not affect the alignment of following sheets.
Minimizing risk of document damage with Paper Protection function
The Paper Protection function detects anomalies in sound and monitors paper feed distance. The fi-7240 keeps your important papers from being damaged.
Stress-free usability with a user-friendly and versatile design
Equipped with a built-in flatbed, this scanner can scan fragile documents and thick books, impossible to scan with ADF.
Advanced software for work efficiency
Connect business workflow with PaperStream IP and PaperStream Capture
The PaperStream IP scanner driver, supporting both TWAIN/ISIS, eliminates the need of making fine setting adjustments for OCR processes. It automatically converts images into exceptionally clean images, accelerating OCR even when scanning wrinkled, soiled and patterned documents.
With an intuitive interface, PaperStream Capture allows users to feed information into their organization’s workflow through various capture features during batch scanning effectively and efficiently.
Streamline workflow with automatic functions
The software is designed to maximize administrator and user usability. Operation is simple to eliminate time spent on sorting scanned images and boost overall productivity.
Documents divided with barcodes and patchcodes are automatically sorted into appropriate folders with a few quick configuration processes. Automatic sorting allows users to load mixed batches while focusing on other tasks.
Utilize advanced optional capture software – PaperStream Capture Pro
A high-quality, front end scanning software, PaperStream Capture Pro, enhances fi Series scanners’ superior scanning abilities with an improved feature set that includes options for high level data extraction and indexing, the import of electronic images, and support for multi-station licensing.
